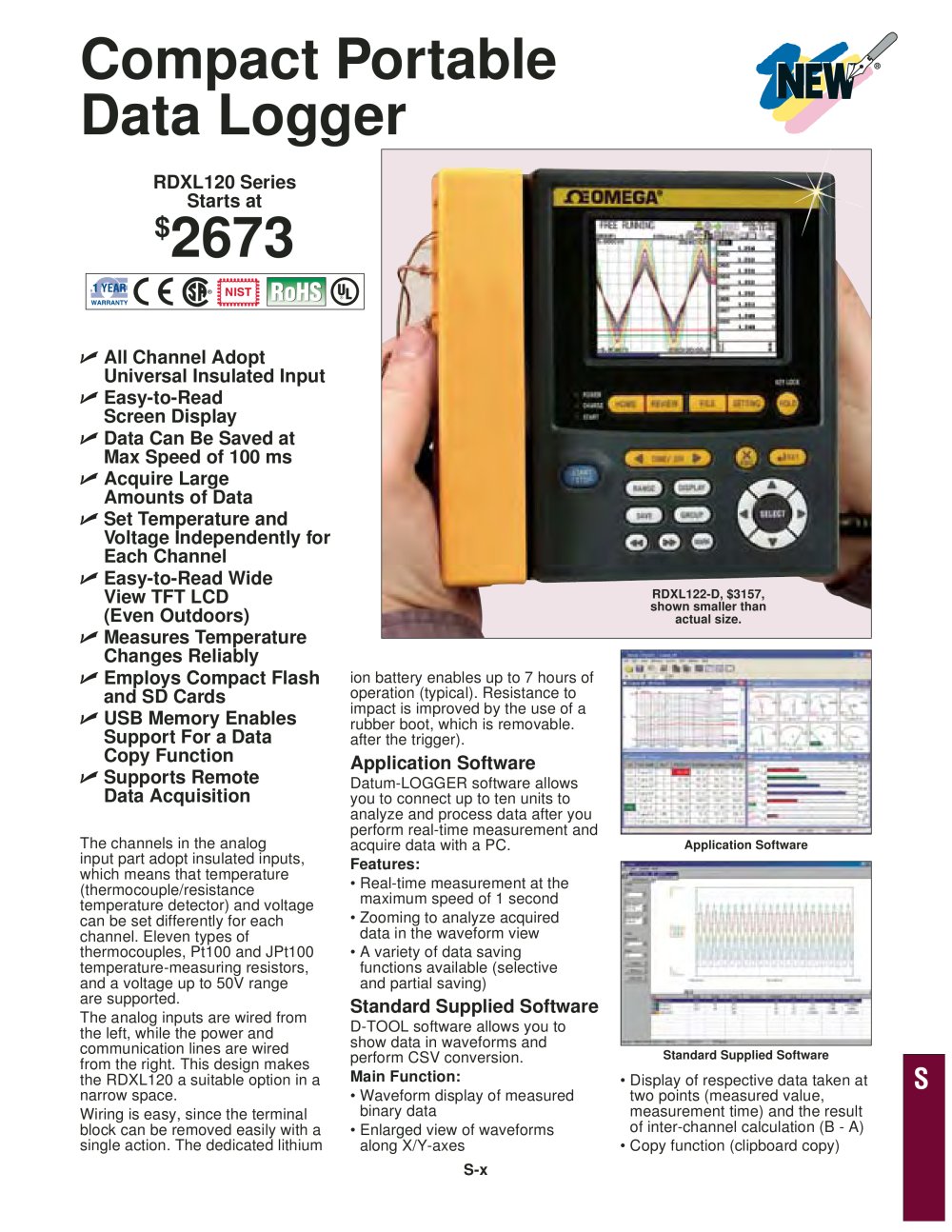

S-x S RDXL120 Series Starts at $2673 Compact Portable Data Logger All Channel Adopt Universal Insulated Input Easy-to-Read Screen Display Data Can Be Saved at Max Speed of 100 ms Acquire Large Amounts of Data Set Temperature and Voltage Independently for Each Channel Easy-to-Read Wide View TFT LCD (Even Outdoors) Measures Temperature Changes Reliably Employs Compact Flash and SD Cards USB Memory Enables Support For a Data Copy Function Supports Remote Data Acquisition The channels in the analog input part adopt insulated inputs, which means that temperature (thermocouple/resistance temperature detector) and voltage can be set differently for each channel. Eleven types of thermocouples, Pt100 and JPt100 temperature-measuring resistors, and a voltage up to 50V range are supported. The analog inputs are wired from the left, while the power and communication lines are wired from the right. This design makes the RDXL120 a suitable option in a narrow space. Wiring is easy, since the terminal block can be removed easily with a single action. The dedicated lithium ion battery enables up to 7 hours of operation (typical). Resistance to impact is improved by the use of a rubber boot, which is removable. after the trigger). Application Software Datum-LOGGER software allows you to connect up to ten units to analyze and process data after you perform real-time measurement and acquire data with a PC. Features: • Real-time measurement at the maximum speed of 1 second • Zooming to analyze acquired data in the waveform view • A variety of data saving functions available (selective and partial saving) Standard Supplied Software D-TOOL software allows you to show data in waveforms and perform CSV conversion. Main Function: • Waveform display of measured binary data • Enlarged view of waveforms along X/Y-axes • Display of respective data taken at two points (measured value, measurement time) and the result of inter-channel calculation (B - A) • Copy function (clipboard copy) RDXL122-D, $3157, shown smaller than actual size. Application Software Standard Supplied Software

Open the catalog to page 1

Compact Portable Data Logger RDXL120 Series - 2

S-y • Conversion to CSV for storage (skipping, saving of data between cursors) • File division • Settings and creation of setting files • Windows® 2000, Windows XP supported environment Specifications Real-Time Measurement Data Acquisition Functions: Communication Interface: Ethernet, USB, RS232, RS485 Max Number of Units That Can Be Connected: 10 units Data Acquisition Channels (Per Unit): Sixteen analog channels, pulse channel, two logic channels, thirty-two XL unit calculation channels, four calculation channels dedicated to Datum-LOGGER software, thirty-two communication channels...

Open the catalog to page 2

Compact Portable Data Logger RDXL120 Series - 3

S-z S File Division: RDXL120 measurement data files and Datum-LOGGER software measurement data files stored on PC can be divided at the specified number of data interval or specified date/time interval Combined Storage: Combine and save divided sub files of Datum-LOGGER software measurement data files. Skipped Storage: Skip data using specified time intervals Storage Format: Binary format (dedicated for Datum-LOGGER software) Report Format Storage: Save maximum, minimum and average of hourly reports, daily reports, weekly reports and monthly reports in CSV format; measurement data can be...

Open the catalog to page 3

Compact Portable Data Logger RDXL120 Series - 4

S-aa Alarm Functions (Alarm Output): Alarm Type: Hi (high limit), lo (low limit), window-in (within specified upper/lower range), window-out (outside specified upper/lower range) (only hi and lo are available for logic inputs) Alarm Delay Time Number of Measurements: 0 to 36,000 Display: Alarm status is displayed in the status display area and measured values are displayed in red when an alarm occurs (selectable from non-hold and hold-type) Hysteresis: ON/OFF switchable (0.5% of span fixed, common to all channels) 4 channels (not insulated) Buzzer: ON/OFF switchable when being output...

Open the catalog to page 4
