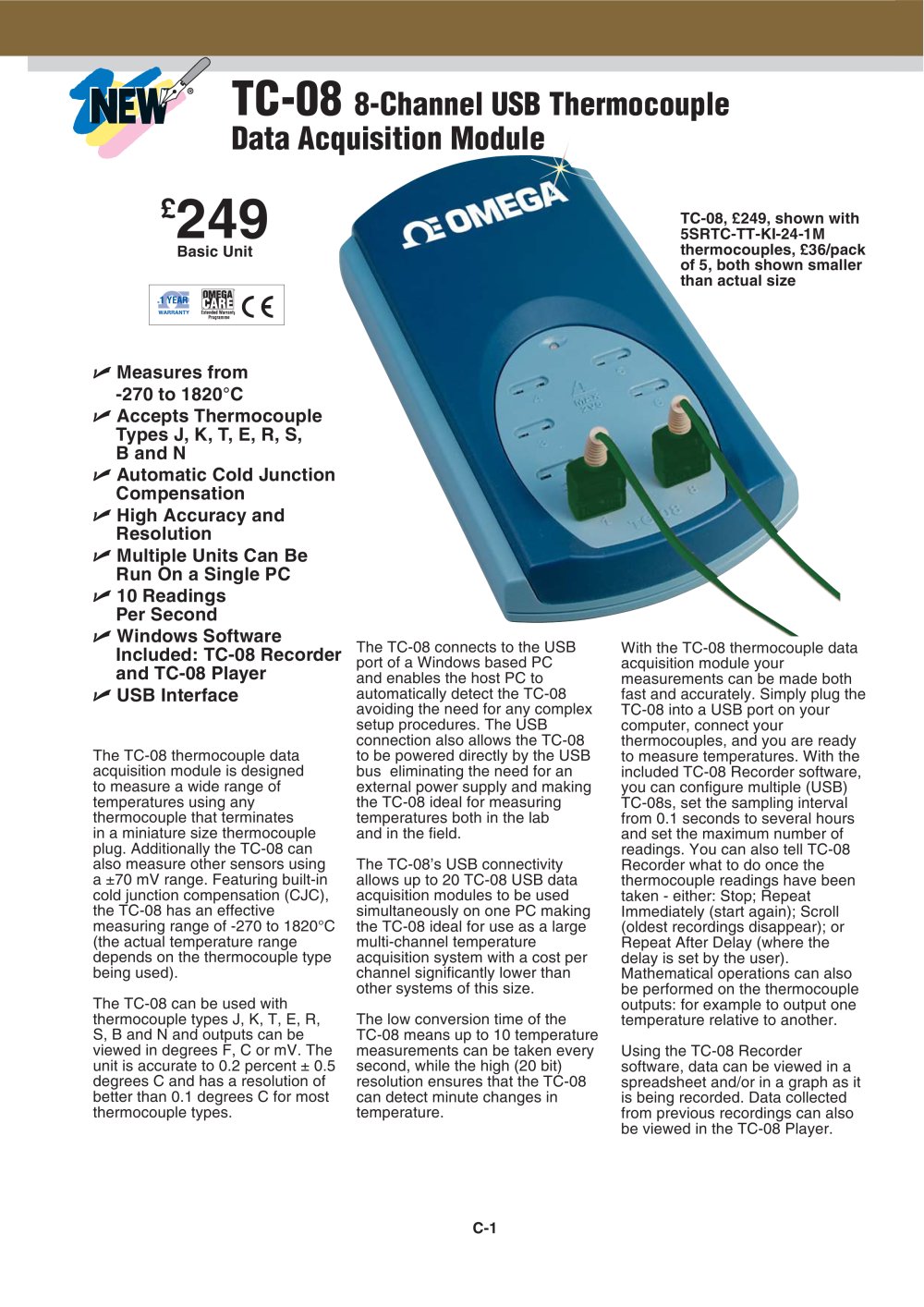

C-1 The TC-08 thermocouple data acquisition module is designed to measure a wide range of temperatures using any thermocouple that terminates in a miniature size thermocouple plug. Additionally the TC-08 can also measure other sensors using a ±70 mV range. Featuring built-in cold junction compensation (CJC), the TC-08 has an effective measuring range of -270 to 1820°C (the actual temperature range depends on the thermocouple type being used). The TC-08 can be used with thermocouple types J, K, T, E, R, S, B and N and outputs can be viewed in degrees F, C or mV. The unit is accurate to 0.2 percent ± 0.5 degrees C and has a resolution of better than 0.1 degrees C for most thermocouple types. Measures from -270 to 1820°C Accepts Thermocouple Types J, K, T, E, R, S, B and N Automatic Cold Junction Compensation High Accuracy and Resolution Multiple Units Can Be Run On a Single PC 10 Readings Per Second Windows Software Included: TC-08 Recorder and TC-08 Player USB Interface The TC-08 connects to the USB port of a Windows based PC and enables the host PC to automatically detect the TC-08 avoiding the need for any complex setup procedures. The USB connection also allows the TC-08 to be powered directly by the USB bus eliminating the need for an external power supply and making the TC-08 ideal for measuring temperatures both in the lab and in the field. The TC-08’s USB connectivity allows up to 20 TC-08 USB data acquisition modules to be used simultaneously on one PC making the TC-08 ideal for use as a large multi-channel temperature acquisition system with a cost per channel significantly lower than other systems of this size. The low conversion time of the TC-08 means up to 10 temperature measurements can be taken every second, while the high (20 bit) resolution ensures that the TC-08 can detect minute changes in temperature. TC-08 8-Channel USB Thermocouple Data Acquisition Module £249 Basic Unit With the TC-08 thermocouple data acquisition module your measurements can be made both fast and accurately. Simply plug the TC-08 into a USB port on your computer, connect your thermocouples, and you are ready to measure temperatures. With the included TC-08 Recorder software, you can configure multiple (USB) TC-08s, set the sampling interval from 0.1 seconds to several hours and set the maximum number of readings. You can also tell TC-08 Recorder what to do once the thermocouple readings have been taken - either: Stop; Repeat Immediately (start again); Scroll (oldest recordings disappear); or Repeat After Delay (where the delay is set by the user). Mathematical operations can also be performed on the thermocouple outputs: for example to output one temperature relative to another. Using the TC-08 Recorder software, data can be viewed in a spreadsheet and/or in a graph as it is being recorded. Data collected from previous recordings can also be viewed in the TC-08 Player. TC-08, £249, shown with 5SRTC-TT-KI-24-1M thermocouples, £36/pack of 5, both shown smaller than actual size

C-2 C Specifications Number of Channels: 8 Conversion Time: 100 ms (thermocouple and cold junction compensation) Temperature Accuracy: Sum of ±0.2% of reading and ±0.5°C Voltage Accuracy: Sum of ±0.2 % of reading and ±10 ìV Overload Protection: ±30 V Maximum Common Mode Voltage: ±7.5 V Input Impedance: 2 M Input Range (Voltage): ±70 mV Resolution: 20-bits Noise Free Resolution: 16.25-bits Thermocouple Types: B, E, J, K, N, R, S, T Input Connectors: Miniature thermocouple Output Connector: USB cable supplied 1.8 m (6') PC Connection: USB 1.1 Power Supply: From USB port Dimensions: 201 x 104 x...
