4 Channel Voltage Data Logger OM-CP-QUADVOLT

4 Channel Voltage Data Logger OM-CP-QUADVOLT
3Pages

Catalog excerpts

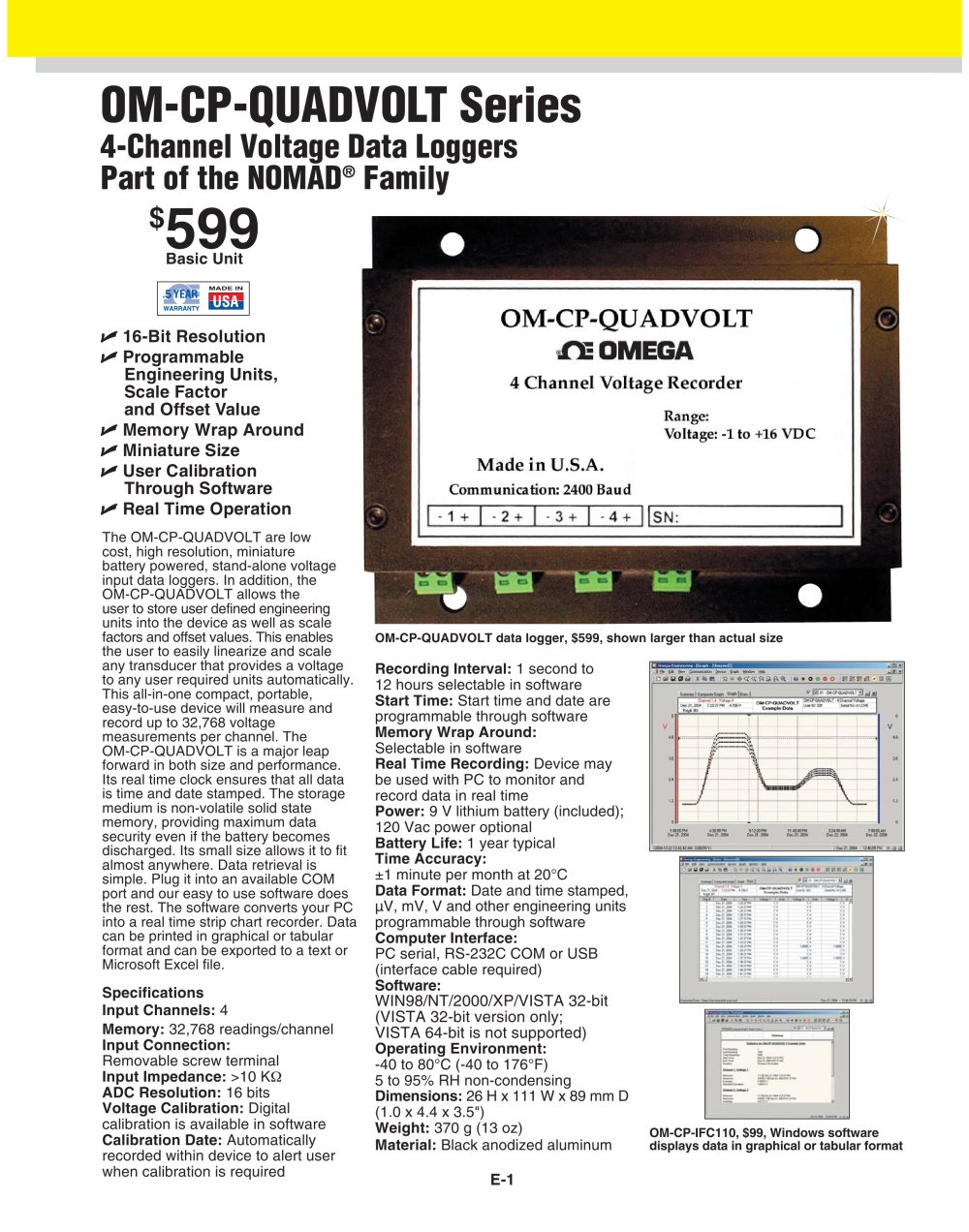

4 Channel Voltage Data Logger OM-CP-QUADVOLT - 1

E-1 OM-CP-QUADVOLT Series 4-Channel Voltage Data Loggers Part of the NOMAD® Family The OM-CP-QUADVOLT are low cost, high resolution, miniature battery powered, stand-alone voltage input data loggers. In addition, the OM-CP-QUADVOLT allows the user to store user defined engineering units into the device as well as scale factors and offset values. This enables the user to easily linearize and scale any transducer that provides a voltage to any user required units automatically. This all-in-one compact, portable, easy-to-use device will measure and record up to 32,768 voltage measurements per channel. The OM-CP-QUADVOLT is a major leap forward in both size and performance. Its real time clock ensures that all data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. Its small size allows it to fit almost anywhere. Data retrieval is simple. Plug it into an available COM port and our easy to use software does the rest. The software converts your PC into a real time strip chart recorder. Data can be printed in graphical or tabular format and can be exported to a text or Microsoft Excel file. Specifications Input Channels: 4 Memory: 32,768 readings/channel Input Connection: Removable screw terminal Input Impedance: >10 KÙ ADC Resolution: 16 bits Voltage Calibration: Digital calibration is available in software Calibration Date: Automatically recorded within device to alert user when calibration is required Recording Interval: 1 second to 12 hours selectable in software Start Time: Start time and date are programmable through software Memory Wrap Around: Selectable in software Real Time Recording: Device may be used with PC to monitor and record data in real time Power: 9 V lithium battery (included); 120 Vac power optional Battery Life: 1 year typical Time Accuracy: ±1 minute per month at 20°C Data Format: Date and time stamped, ìV, mV, V and other engineering units programmable through software Computer Interface: PC serial, RS-232C COM or USB (interface cable required) Software: WIN98/NT/2000/XP/VISTA 32-bit (VISTA 32-bit version only; VISTA 64-bit is not supported) Operating Environment: -40 to 80°C (-40 to 176°F) 5 to 95% RH non-condensing Dimensions: 26 H x 111 W x 89 mm D (1.0 x 4.4 x 3.5") Weight: 370 g (13 oz) Material: Black anodized aluminum 16-Bit Resolution Programmable Engineering Units, Scale Factor and Offset Value Memory Wrap Around Miniature Size User Calibration Through Software Real Time Operation OM-CP-QUADVOLT data logger, $599, shown larger than actual size $599 Basic Unit OM-CP-IFC110, $99, Windows software displays data in graphical or tabular format

Open the catalog to page 1

4 Channel Voltage Data Logger OM-CP-QUADVOLT - 2

E-2 E Operator’s manual and RS-232 cable are included with the OM-CP-IFC110 Windows software (software sold separately). To order data loggers with optional 120 Vac power, add suffix "-AC" to model number and add $100 to price. Ordering Example: OM-CP-QUADVOLT-CERT 4 channel voltage data logger with NIST calibration certificate and OM-CP-IFC110 Windows software and RS-232 cable, $659 + 99 = $758. INPUT RANGES OM-CP-QUADVOLT-100MV OM-CP-QUADVOLT-2.5V OM-CP-QUADVOLT OM-CP-QUADVOLT-30V Nominal Input ±100 mV 0 to 2.5V 0 to 15 V 0 to 30 Range Measurement ±150 mV -0.25 to 2.75 V -1.0 to 16.0 V...
