4 Channel Process Current Data Logger OM-CP-QUADPROCESS

4 Channel Process Current Data Logger OM-CP-QUADPROCESS
3Pages

Catalog excerpts

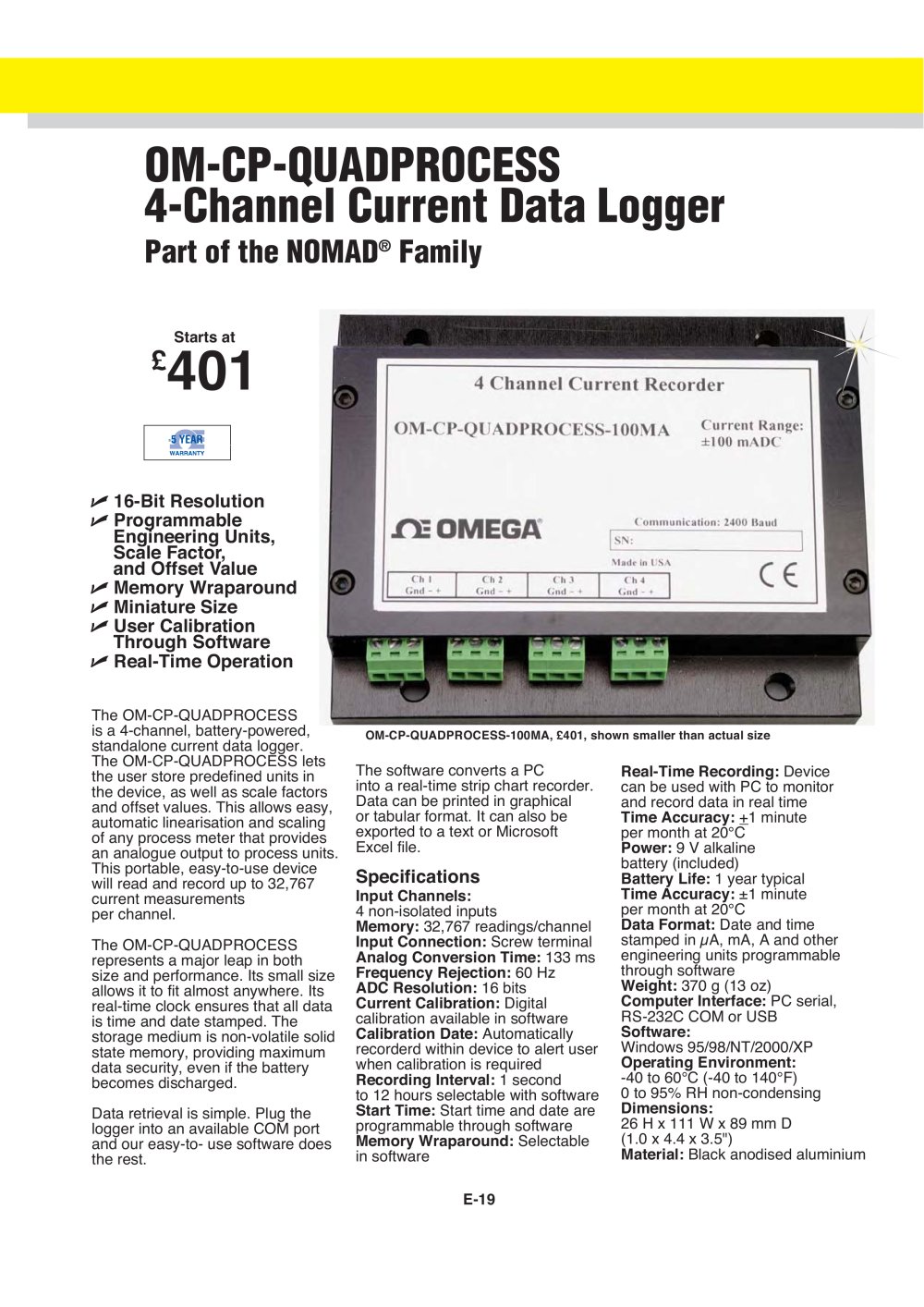

4 Channel Process Current Data Logger OM-CP-QUADPROCESS - 1

E-19 OM-CP-QUADPROCESS 4-Channel Current Data Logger Part of the NOMAD® Family The OM-CP-QUADPROCESS is a 4-channel, battery-powered, standalone current data logger. The OM-CP-QUADPROCESS lets the user store predefined units in the device, as well as scale factors and offset values. This allows easy, automatic linearisation and scaling of any process meter that provides an analogue output to process units. This portable, easy-to-use device will read and record up to 32,767 current measurements per channel. The OM-CP-QUADPROCESS represents a major leap in both size and performance. Its small size allows it to fit almost anywhere. Its real-time clock ensures that all data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security, even if the battery becomes discharged. Data retrieval is simple. Plug the logger into an available COM port and our easy-to- use software does the rest. The software converts a PC into a real-time strip chart recorder. Data can be printed in graphical or tabular format. It can also be exported to a text or Microsoft Excel file. Specifications Input Channels: 4 non-isolated inputs Memory: 32,767 readings/channel Input Connection: Screw terminal Analog Conversion Time: 133 ms Frequency Rejection: 60 Hz ADC Resolution: 16 bits Current Calibration: Digital calibration available in software Calibration Date: Automatically recorderd within device to alert user when calibration is required Recording Interval: 1 second to 12 hours selectable with software Start Time: Start time and date are programmable through software Memory Wraparound: Selectable in software 16-Bit Resolution Programmable Engineering Units, Scale Factor, and Offset Value Memory Wraparound Miniature Size User Calibration Through Software Real-Time Operation OM-CP-QUADPROCESS-100MA, £401, shown smaller than actual size Real-Time Recording: Device can be used with PC to monitor and record data in real time Time Accuracy: +1 minute per month at 20°C Power: 9 V alkaline battery (included) Battery Life: 1 year typical Time Accuracy: ±1 minute per month at 20°C Data Format: Date and time stamped in ìA, mA, A and other engineering units programmable through software Weight: 370 g (13 oz) Computer Interface: PC serial, RS-232C COM or USB Software: Windows 95/98/NT/2000/XP Operating Environment: -40 to 60°C (-40 to 140°F) 0 to 95% RH non-condensing Dimensions: 26 H x 111 W x 89 mm D (1.0 x 4.4 x 3.5") Material: Black anodised aluminium Starts at £401

Open the catalog to page 1

4 Channel Process Current Data Logger OM-CP-QUADPROCESS - 2

INPUT RANGES OM-CP-QUADPROCESS-1MA OM-CP-QUADPROCESS-25MA OM-CP-QUADPROCESS-100MA Nominal ±1 mA ±25 mA ±100 mA Range Measurement ±1.5 mA ±30 mA ±120 mA Range Resolution 0.05 ìa 1 ìa 5 ìa Calibrated ±0.5% FSR ±0.1% FSR ±0.1% FSR Accuracy Input 50 .. 10 .. 2 .. Impedance Overload ±20 mA ±100 mA ±125 mA Protection E-20 E To Order (Specify Model Number) Model No. Price Description OM-CP-QUADPROCESS-1MA £401 4-channel current data logger, ±1 mA range OM-CP-QUADPROCESS-25MA 401 4-channel current data logger, ±25 mA range CAL-3-SYSTEM 84 Traceable calibration certificate with test results...

Open the catalog to page 2

4 Channel Process Current Data Logger OM-CP-QUADPROCESS - 3

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...
