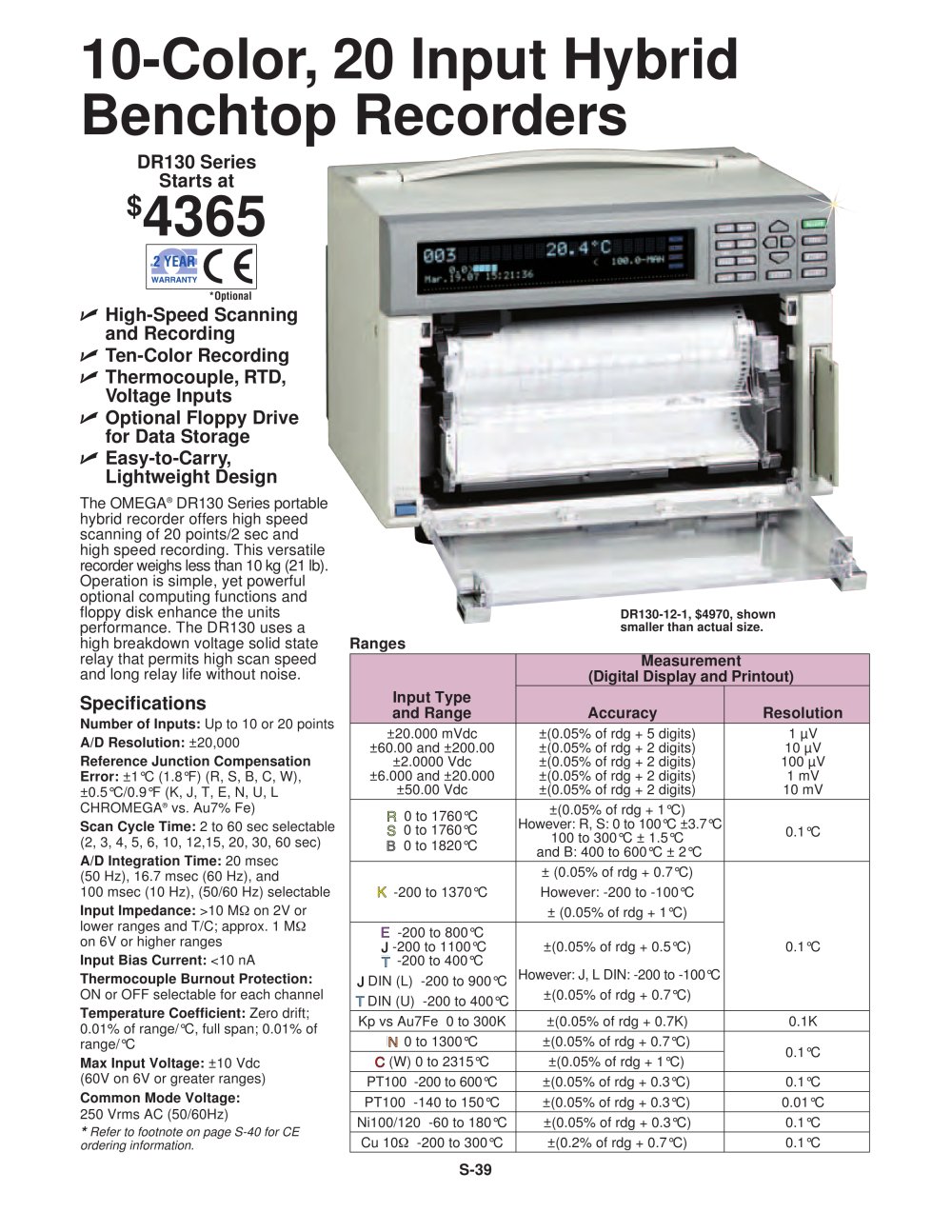

S-39 Measurement (Digital Display and Printout) Input Type and Range Accuracy Resolution ±20.000 mVdc ±(0.05% of rdg + 5 digits) 1 ìV ±60.00 and ±200.00 ±(0.05% of rdg + 2 digits) 10 ìV ±2.0000 Vdc ±(0.05% of rdg + 2 digits) 100 ìV ±6.000 and ±20.000 ±(0.05% of rdg + 2 digits) 1 mV ±50.00 Vdc ±(0.05% of rdg + 2 digits) 10 mV R 0 to 1760°C ±(0.05% of rdg + 1°C) S 0 to 1760°C However: R, S: 0 to 100°C ±3.7°C 100 to 300°C ± 1.5°C 0.1°C B 0 to 1820°C and B: 400 to 600°C ± 2°C ± (0.05% of rdg + 0.7°C) K -200 to 1370°C However: -200 to -100°C ± (0.05% of rdg + 1°C) E -200 to 800°C J -200 to 1100°C ±(0.05% of rdg + 0.5°C) 0.1°C T -200 to 400°C J DIN (L) -200 to 900°C However: J, L DIN: -200 to -100°C T DIN (U) -200 to 400°C ±(0.05% of rdg + 0.7°C) Kp vs Au7Fe 0 to 300K ±(0.05% of rdg + 0.7K) 0.1K N 0 to 1300°C ±(0.05% of rdg + 0.7°C) C (W) 0 to 2315°C ±(0.05% of rdg + 1°C) 0.1°C PT100 -200 to 600°C ±(0.05% of rdg + 0.3°C) 0.1°C PT100 -140 to 150°C ±(0.05% of rdg + 0.3°C) 0.01°C Ni100/120 -60 to 180°C ±(0.05% of rdg + 0.3°C) 0.1°C Cu 10Ù -200 to 300°C ±(0.2% of rdg + 0.7°C) 0.1°C Ranges 10-Color, 20 Input Hybrid Benchtop Recorders DR130 Series Starts at $4365 High-Speed Scanning and Recording Ten-Color Recording Thermocouple, RTD, Voltage Inputs Optional Floppy Drive for Data Storage Easy-to-Carry, Lightweight Design The OMEGA® DR130 Series portable hybrid recorder offers high speed scanning of 20 points/2 sec and high speed recording. This versatile recorder weighs less than 10 kg (21 lb). Operation is simple, yet powerful optional computing functions and floppy disk enhance the units performance. The DR130 uses a high breakdown voltage solid state relay that permits high scan speed and long relay life without noise. Specifications Number of Inputs: Up to 10 or 20 points A/D Resolution: ±20,000 Reference Junction Compensation Error: ±1°C (1.8°F) (R, S, B, C, W), ±0.5°C/0.9°F (K, J, T, E, N, U, L CHROMEGA® vs. Au7% Fe) Scan Cycle Time: 2 to 60 sec selectable (2, 3, 4, 5, 6, 10, 12,15, 20, 30, 60 sec) A/D Integration Time: 20 msec (50 Hz), 16.7 msec (60 Hz), and 100 msec (10 Hz), (50/60 Hz) selectable Input Impedance: >10 MÙ on 2V or lower ranges and T/C; approx. 1 MÙ on 6V or higher ranges Input Bias Current: <10 nA Thermocouple Burnout Protection: ON or OFF selectable for each channel Temperature Coefficient: Zero drift; 0.01% of range/°C, full span; 0.01% of range/°C Max Input Voltage: ±10 Vdc (60V on 6V or greater ranges) Common Mode Voltage: 250 Vrms AC (50/60Hz) *Optional DR130-12-1, $4970, shown smaller than actual size. * Refer to footnote on page S-40 for CE ordering information.

S-40 S DR130 Series display shown smaller than actual size. Comes complete with one 20 m (65') Z-fold chart, one 10-color ribbon and operator's manual. All units may have display with °F/°C and 50 Hz option field selectable. Only 1 communications option per unit. Other options can be combined as required. Floppy drive units include free conversion software. *For CE option add suffix “-CE” to model number and $380 to price. Ordering Examples: DR130-12-2-C2, hybrid recorder with RS232 interface, plus DR130-ZFP-10, paper, plus DR130-RC, replacement 10-color printing ribbon, $6320 + 18 + 29 = $6367....
