1/8 DIN High Accuracy 6 Digit Panel Meter DP41-B

1/8 DIN High Accuracy 6 Digit Panel Meter DP41-B
4Pages

Catalog excerpts

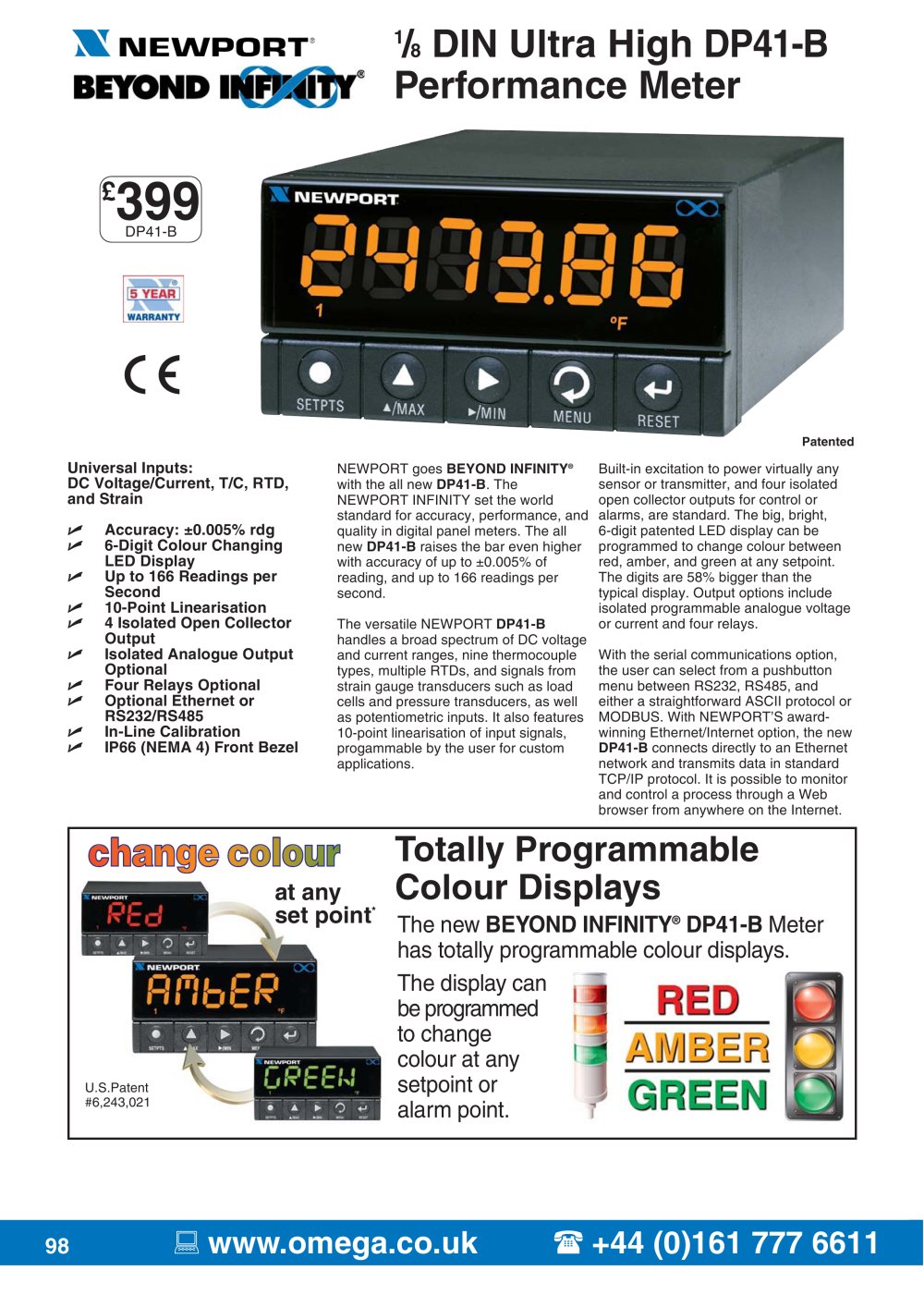

1/8 DIN High Accuracy 6 Digit Panel Meter DP41-B - 1

98 www.omega.co.uk +44 (0)161 777 6611 Universal Inputs: DC Voltage/Current, T/C, RTD, and Strain Accuracy: ±0.005% rdg 6-Digit Colour Changing LED Display Up to 166 Readings per Second 10-Point Linearisation 4 Isolated Open Collector Output Isolated Analogue Output Optional Four Relays Optional Optional Ethernet or RS232/RS485 In-Line Calibration IP66 (NEMA 4) Front Bezel NEWPORT goes BEYOND INFINITY® with the all new DP41-B. The NEWPORT INFINITY set the world standard for accuracy, performance, and quality in digital panel meters. The all new DP41-B raises the bar even higher with accuracy of up to ±0.005% of reading, and up to 166 readings per second. The versatile NEWPORT DP41-B handles a broad spectrum of DC voltage and current ranges, nine thermocouple types, multiple RTDs, and signals from strain gauge transducers such as load cells and pressure transducers, as well as potentiometric inputs. It also features 10-point linearisation of input signals, progammable by the user for custom applications. Built-in excitation to power virtually any sensor or transmitter, and four isolated open collector outputs for control or alarms, are standard. The big, bright, 6-digit patented LED display can be programmed to change colour between red, amber, and green at any setpoint. The digits are 58% bigger than the typical display. Output options include isolated programmable analogue voltage or current and four relays. With the serial communications option, the user can select from a pushbutton menu between RS232, RS485, and either a straightforward ASCII protocol or MODBUS. With NEWPORT’S awardwinning Ethernet/Internet option, the new DP41-B connects directly to an Ethernet network and transmits data in standard TCP/IP protocol. It is possible to monitor and control a process through a Web browser from anywhere on the Internet. 1/8 DIN Ultra High Performance Meter Patented DP41-B The new BEYOND INFINITY® DP41-B Meter has totally programmable colour displays. The display can be programmed to change colour at any setpoint or alarm point. Totally Programmable at any Colour Displays set point* U.S.Patent #6,243,021 £399 DP41-B

Open the catalog to page 1

1/8 DIN High Accuracy 6 Digit Panel Meter DP41-B - 2

INSTRUMENTATION www.omega.co.uk +44 (0)161 777 6611 99 Embedded Internet and Serial Communications Featuring optional "Embedded Internet" (specify EI option), the DP41-B connects directly to an Ethernet network and transmits data in standard TCP/IP packets, or even serves Web pages over a LAN or the Internet. The DP41-B is also available with serial communications. With the C24 option, the user can select from the pushbutton menu between RS232, RS422, and RS485, with straightforward ASCII commands or MODBUS. Programmable Colour Display The NEWPORT DP41-B has totally programmable colour...

Open the catalog to page 2

1/8 DIN High Accuracy 6 Digit Panel Meter DP41-B - 3

100 www.omega.co.uk +44 (0)161 777 6611 Free Software Free software is provided for easy setup, configuration, and data acquisition with the NEWPORT® DP41-B. Free ActiveX Controls Free ActiveX Controls are provided for the DP41-B, making it easy to integrate the DP41-B with information systems using "ActiveX Containers" such as Microsoft Visual Basic and Microsoft Excel, as well as with popular OLE and OPC compliant data acquisition, process control, and industrial automation software from NEWPORT®, GE Fanuc, Intellution, Rockwell Automation, Object Automation, iconics, and Wonderware,...

Open the catalog to page 3

1/8 DIN High Accuracy 6 Digit Panel Meter DP41-B - 4

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...
