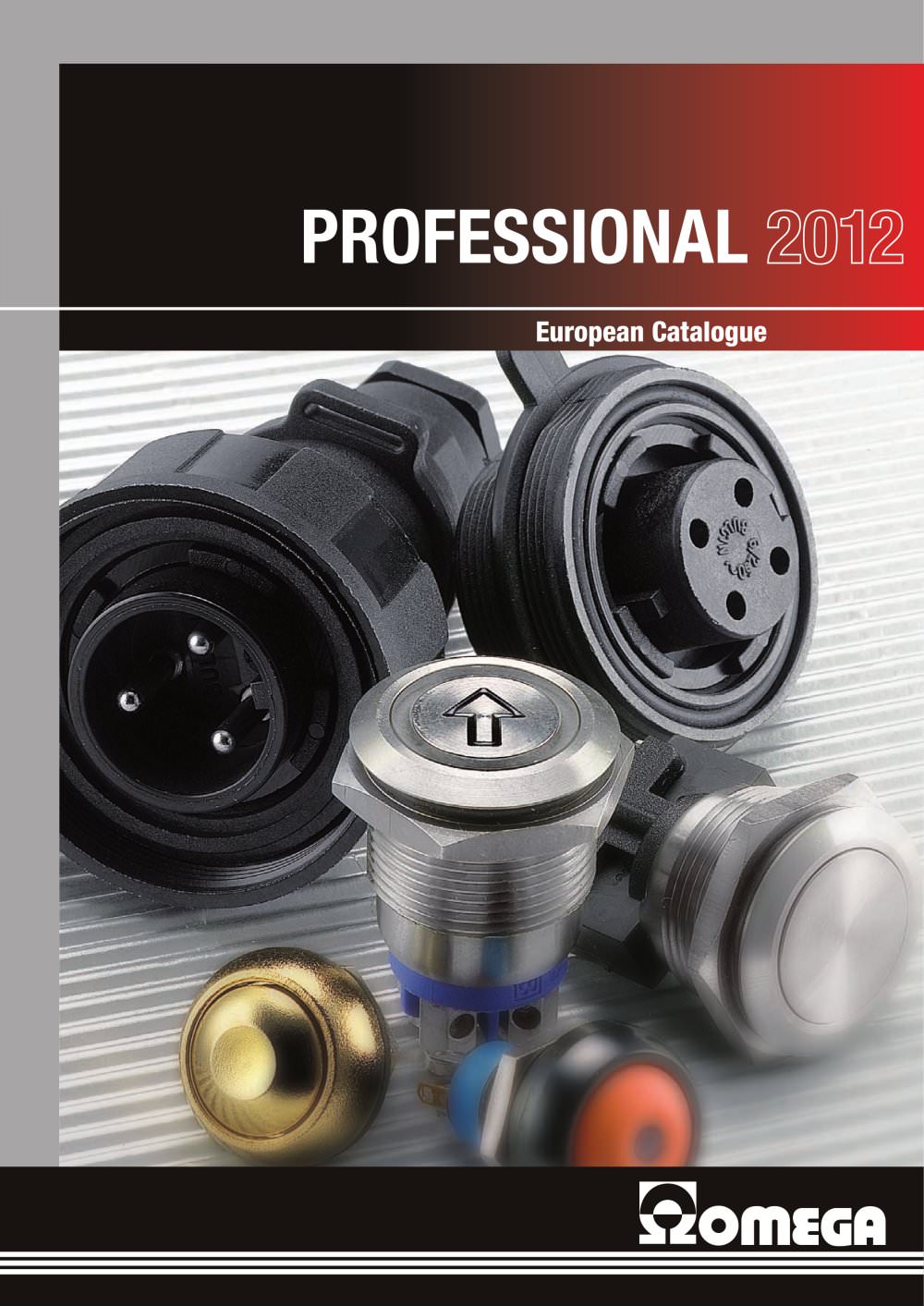

EUROPEAN CATALOGUE 2012 - PROFESSIONAL
EUROPEAN CATALOGUE 2012 - PROFESSIONAL
Omega Fusibili S.p.A. has modernized its organization and expanded its market presence, now comprising four companies with 85 employees and over 60 agents across Europe. The new headquarters in Assago features automated warehouses to enhance logistics efficiency.
The 2012 catalogue introduces new products and is organized into five divisions: Electronic, Connection, Professional, Power, and the new Air Moving division, which includes fans and accessories.
- IP68 Connectors: Durable connectors for harsh environments.
- IP67 Push-buttons and Switches: Available in various designs and models.
- Piezo Switches: Offered in different sizes and illuminated options.
- Sealed Rocker Switches: Includes IP68 and IP65 models.
- Toggle Switches: Available in metal and plastic variants.
- LED Indicators: Range of panel mounting indicators.
The Italian headquarters includes 1,200 sqm of office space and 3,200 sqm of warehouse space with automated logistics systems. The French branch supports European operations.
Omega Fusibili aims to maintain its leadership in the electronic components sector with its expanded product range and enhanced capabilities.
Bulgin offers a range of circular connectors designed for reliability in harsh environments, featuring IP68 sealing. They are divided into four families: Micro-Buccaneer, Mini-Buccaneer, Buccaneer, and Maxi-Buccaneer.
- Sealing and Protection: IP68 rating ensures dust-tight and water protection.
- Electrical Characteristics: Various current and voltage ratings.
- Material Composition: Made from flame-retardant materials.
- Operating Temperature: Ranges from -40°C to +85°C.
- Contact Resistance: Below 10 mΩ for most connectors.
- Ethernet Connectors: Cat 5e connectors for panel and in-line applications.
- USB Connectors: USB 2.0 connectors for cable and panel mounting.
- Mini USB Connectors: Designed for compact applications.
Includes sealing caps, mounting tools, and crimping tools.
- High durability and protection with IP68 rating.
- Wide range of operating temperatures.
- Multiple configurations and mounting options.
The PBA series piezo switches utilize piezoelectricity for high-end applications. They offer solid-state output, ensuring a long lifespan and high sealing performance.
APEM's piezo switches are ideal for demanding applications, offering over 50 million cycles and high sealing performance.
- Custom actuator shapes.
- Special LED colors.
- Different anodized body colors.
- Marking options.
- Available for ATEX applications.
- Marine
- Medical
- Food-Processing Industry
- Vending Machines
- Mining
- Traffic Control
- Automation
- Home Automation
- Bath, Beauty Centers, and Spa
- Operating force: 2 to 6N
- Life expectancy: 50 million cycles
- Operating temperature: -40°C to +75°C
- Sealing: IP68 - IEC 529, IP69K - DIN 40050-9
- Current/Voltage: 200mA / 24VAC-DC
- LED: 20mA - 12VDC
- Material: Anodized aluminum
- Contacts: Flying leads 0.22 mm², length 300 mm
Various product codes for different dimensions and configurations of piezo switches.
Details for vandal-resistant push-buttons, including stainless steel construction and IP66 sealing.
Suitable for access control, public information systems, vending machines, and more.
Guidelines for ESD protection during design and production.
IP66/IP68 sealing protection, easy assembly, and customization possibilities.
Detailed resistor values for different LED voltages.
Various product codes for push buttons with and without resistors.
Details for various switches, including sealed rocker switches and toggle switches.
Instructions for replacing symbols in part numbers and available accessories.
Compliance with UL 94-V0 standards and approval codes.
Use specific materials for sealing boots based on resistance properties.
Suitable for radio controls, panel controls, automation, military, and marine applications.
Easy installation, wide range of options, and prompt delivery.
Details on dimensions and configurations of different switch models.
Details for various lamps and LEDs, including voltage ratings and resistor selection.
Instructions for industrial controls installation.
Guidelines for component alignment and safe removal.
Product codes and descriptions for lamps, LEDs, and switch components.
Operating temperature, sealing, insulation class, and contact resistance.
List of accessories and installation tools.
Specifications for emergency stop switches.
Details on bezels, blanking plates, and anti-rotation rings.
Specifications for an emergency stop push button in a plastic enclosure.
Details for emergency stop models and label options.
Voltage, current, diameter, and protection rating details.
List of accessories and tools for installation.
Details for various pushbuttons, switches, and indicators.
Descriptions of LED indicators for panel mounting.
Information on product robustness and applications.
Details for ordering LED indicators.
Details for various LED indicators, including voltage and current options.
Mounting procedures for LED indicators.
Importance of CE marking and quality approvals.
Adherence to CE marking requirements and regular inspections.
Comprehensive list of LED indicators with codes and specifications.
Explanation of CE marking and its importance.
Guarantees of compliance with standards.
- Introduction: Commercial relations governed by specific conditions.
- Sales Prices: Invoiced based on current prices.
- Products: Characteristics may change without notice.
- Guarantee: One-year guarantee against defects.
- Quotations: Valid for 60 days.
- Orders and Acknowledgements: Orders require written confirmation.
- Shipments: Fulfilled within 48 hours.
- Returned Goods: Returns must be authorized.
- Transfer of Property/Risk: Ownership retained until full payment.
- Payment: Terms set by Omega.
Prohibition of unauthorized use of trademarks and logos.
Reproduction forbidden without consent.
Designs remain the property of Omega Fusibili and Omega Composants.
Outlines data treatment in accordance with Law n. 675/96.
Legal disputes handled by the Milan Court of Law or the Tribunal of Commerce in Lyon.
Table of shipping costs categorized by weight and region.
Index of products with corresponding page numbers.
Catalog excerpts
www.omegafusibili.it 1 Negli ultimi anni Omega è stata impegnata in importanti investimenti per poter affrontare la sfida commerciale del prossimo decennio con un’organizzazione rinnovata e moderna. Pur attraversando la peggior crisi politico-economica globale abbiamo portato a termine acquisizioni di grande importanza, trasformando Omega in un gruppo composto oggi da quattro diverse aziende, con 85 collaboratori interni ed oltre 60 agenti in diversi Paesi europei. Recentemente inaugurata, la nuova sede di Assago con ampi e luminosi uffici, vanta magazzini totalmente automatizzati al servizio...
Open the catalog to page 3
Presentazione SEDE ITALIANA Italian head office Siège italien ¡ 1.200 mq uffici commerciali 1.200 sqm commercial office | 1.200 m2 de bureaux ¡ 3.200 mq magazzini 3.200 sqm warehouse | 3.200 m2 de stock ¡ 2.800 spazi bancale 2.800 pallet spaces | 2.800 emplacements palettes ¡ 6.500 ubicazioni 6.500 locations | 6.500 emplacements produits ¡ Logistica automatizzata Automated logistic | Logistique automatisée 2 www.omegafusibili.it PRESENTAZIONE Presentation Présentation
Open the catalog to page 4
RAPPRESENTATE Partners Partenaires www.omegafusibili.it 3 SEDE FRANCESE French branch office Siège francais
Open the catalog to page 5
4 www.omegafusibili.it LEGENDA SIMBOLI Legends of symbols Légende des symboles INFORMAZIONI | Information | Informations CONFEZIONE | Packaging | Conditionnement CONSEGNA | Delivery | Livraison PRESTARE ATTENZIONE | To be given special attention | Prêter attention Professional INDICE Index Index GRADO DI PROTEZIONE | Sealing | IPXX Degré de protection
Open the catalog to page 6
www.omegafusibili.it 5 CONNETTORI IP68 | IP68 connectors | Connecteurs IP68 ¡ Pag. 06 MICRO-BUCCANEER | Micro-Buccaneer connectors | Micro-Buccaneer MINI-BUCCANEER | Mini-Buccaneer connectors | Mini-Buccaneer BUCCANEER | Buccaneer connectors | Buccaneer MAXI-BUCCANEER | Maxi-Buccaneer connectors | Maxi-Buccaneer ETHERNET BUCCANEER | Ethernet Buccaneer connectors | Buccaneer Ethernet USB BUCCANEER | USB Buccaneer connectors | Buccaneer USB MINI USB BUCCANEER | Mini USB Buccaneer | Mini Buccaneer USB BUCCANEER SMB/ANTENNA | SMB Buccaneer/Antenna | Buccaneer SMB/Antenne PULSANTI E INTERRUTTORI IP67...
Open the catalog to page 7
6 www.omegafusibili.it Professional CONNETTORI IP68 IP68 connectors Connecteurs IP68
Open the catalog to page 8
www.omegafusibili.it 7 PRODUTTORI | Manufacturers | Producteurs MICRO-BUCCANEER Micro-Buccaneer connectors | Micro-Buccaneer MINI-BUCCANEER Mini-Buccaneer connectors | Mini-Buccaneer BUCCANEER Buccaneer connectors | Buccaneer MAXI-BUCCANEER Maxi-Buccaneer connectors | Maxi-Buccaneer ETHERNET BUCCANEER Ethernet Buccaneer connectors | Buccaneer Ethernet USB BUCCANEER USB Buccaneer connectors | Buccaneer USB MINI-BUCCANEER USB Mini USB Buccaneer | Mini-Buccaneer USB BUCCANEER SMB/ANTENNA SMB Buccaneer/Antenna | Buccaneer SMB/Antenne MAXI STANDARD USB MINI MICRO SMB
Open the catalog to page 9
8 www.omegafusibili.it Professional INFORMAZIONI GENERALI General Information Informations Générales I connettori circolari della Bulgin comprendono una delle più ampie e complete gamme disponibili sul mercato. Essi si suddividono in quattro famiglie: micro-buccaneer, mini-buccaneer, buccaneer e maxi-buccaneer. Ciascuna di esse è stata progettata per resistere a lungo in ambienti umidi, polverosi ed ostili. Sono stagne a fattore IP68 per garantire una protezione completa contro acqua e polvere. Il design compatto ed il facile assemblaggio offrono all’utilizzatore una ottimale soluzione a costi...
Open the catalog to page 10
www.omegafusibili.it 9 APPLICAZIONI Applications Applications ¡ Automazione industriale Industrial automation | Automatisation industrielle ¡ Nautica Nautical appliance | Applications nautiques ¡ Antifurti Burglar alarms | Antivols ¡ Agricoltura Agriculture | Agriculture ¡ Apparecchi da esterno Outdoor equipments | Equipements extérieurs ¡ Trasporti Transportation | Transports Advantages Avantages ¡ Grado di protezione IP68 Sealed to IP68 | Degré de protection IP68 ¡ Corpo plastico Plastic body moulding | Corps plastique ¡ Inserto estraibile Removable insert | Insert extractible ¡ Facilità d’assemblaggio...
Open the catalog to page 11
10 www.omegafusibili.it Professional BUCCANEER SERIE 400 400 Series buccaneer Buccaneer séries 400 - Sono IP68 quando accoppiati - Il grado di protezione IP68 è testato a 1.054Kg/sq cm (15lb/sq in) resiste ad una profondità di 10 mt per due settimane - 2 e 3 poli - 8A 250V - 4,6 e 8 poli - 5A 125V - 10 e 12 poli - 1A 50V - Innesto del contatto da 2,5 mm - I noccioli sono parte della struttura del corpo - Tipi di cavi da 3 a 7 mm - Lunghezza totale 80mm (volanti) - Ghiera di fissaggio di accoppiamento volanti e da pannello diametro 19,1 mm - Vari tipi di corpi tra cui volanti e da pannello - La...
Open the catalog to page 12
www.omegafusibili.it 11 STANDARD BUCCANEER Standard buccaneer Standard buccaneer - Il grado di protezione IP68 è testato a 1.054Kg/sq cm (15lb/sq in) resiste ad una profondità di 10 mt per due settimane e 9.84 Kg/sq cm (140lb/sq in) e 100mt di profondità per 12 ore - Protezione completa contro acqua e polvere quando sono accoppiati - Versioni di 2,3,4,6,7,9 e 25 poli - 10A, 250V a.c./d.c. 2 e 3 poli con terminali a vite - 6A, 250V a.c./d.c. 4 poli con terminali a vite - 3A, 250V a.c./d.c. 6 e 7 poli con terminali a vite - 5A, 150V a.c./ d.c. 9 poli con contatti a crimpare - 1A, 50V a.c. / d.c....
Open the catalog to page 13
12 www.omegafusibili.it BUCCANEER SERIE 900 900 Series buccaneer Buccaneer séries 900 - Il grado di protezione IP68 è testato a 1.054 Kg/sq cm (15lb/sq in) resiste a 10 mt. di profondità per 14 giorni - Hanno una corrente nominale di 32A a 600V ac/dc - Versioni di 2, 3, 4, 5 e 7 poli - Connessione di spina o presa per ogni tipo di corpo - Protezione completa contro acqua e polvere quando accoppiati - Impossibilità di errato accoppiamento - Terminali a vite - Guida di corretto posizionamento del nocciolo all’interno del corpo. - Sono disponibili cappucci di protezione che garantiscono l’IP68 dei...
