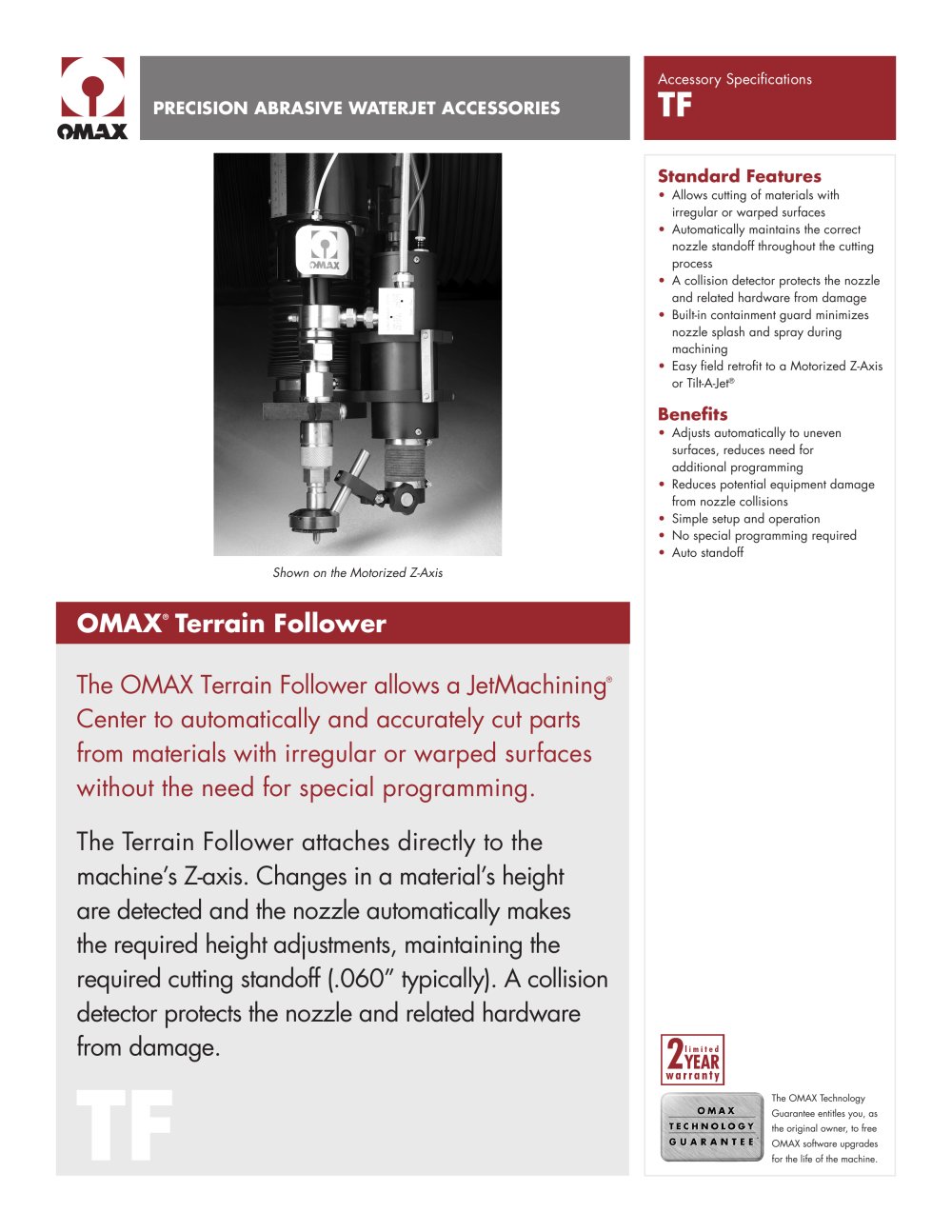

PRECISION ABRASIVE WATERJET ACCESSORIES Accessory Specifications TF OMAX® Terrain Follower TF The OMAX Terrain Follower allows a JetMachining® Center to automatically and accurately cut parts from materials with irregular or warped surfaces without the need for special programming. The Terrain Follower attaches directly to the machine’s Z-axis. Changes in a material’s height are detected and the nozzle automatically makes the required height adjustments, maintaining the required cutting standoff (.060” typically). A collision detector protects the nozzle and related hardware from damage. Shown on the Motorized Z-Axis Standard Features • Allows cutting of materials with irregular or warped surfaces • Automatically maintains the correct nozzle standoff throughout the cutting process • A collision detector protects the nozzle and related hardware from damage • Built-in containment guard minimizes nozzle splash and spray during machining • Easy field retrofit to a Motorized Z-Axis or Tilt-A-Jet® Benefits • Adjusts automatically to uneven surfaces, reduces need for additional programming • Reduces potential equipment damage from nozzle collisions • Simple setup and operation • No special programming required • Auto standoff The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine. C o r p o r a t i o n
Open the catalog to page 1Note: Specifications subject to change without notice. OMAX Terrain Follower Best Applications • Great for large sheets of nested parts • Great for materials that stress relieve while cutting • Ideal for cutting large parts on uneven or warped sheets • Assists in cutting hard, smooth, or non-cosmetic surfaces Improvements • Offers a more robust sensing mechanism • Equipped with more stable sensor mounting • Auto-disables during machine shutdown • Foot is more rigid and easily removed without tools Printed in the U.S.A © December 2008 All rights reserved. S-0030 OMAX Corporation 21409 72nd...
