Catalog excerpts

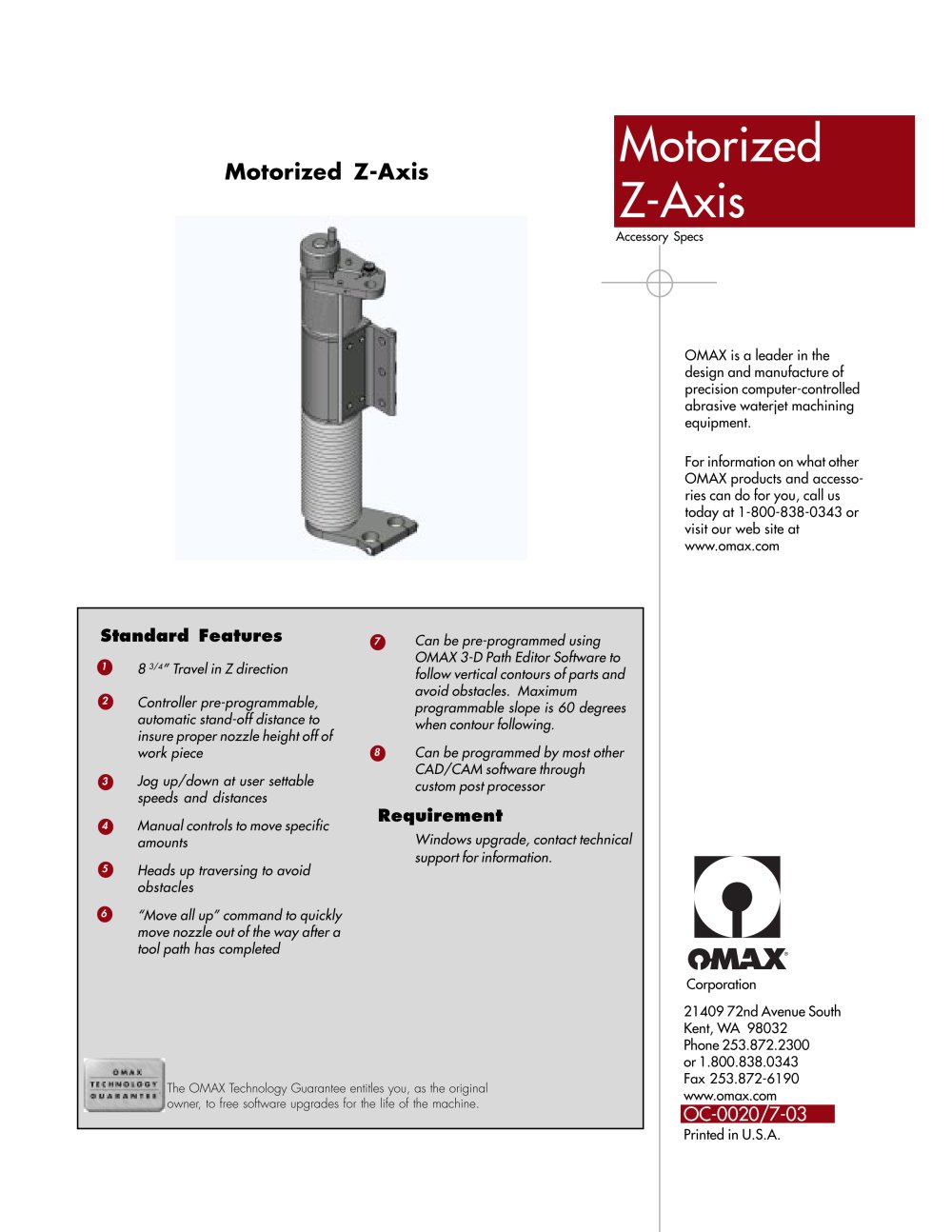

Motorized Z-Axis Corporation 21409 72nd Avenue South Kent, WA 98032 Phone 253.872.2300 or 1.800.838.0343 Fax 253.872-6190 www.omax.com OC-0020/7-03 Printed in U.S.A. OMAX is a leader in the design and manufacture of precision computer-controlled abrasive waterjet machining equipment. For information on what other OMAX products and accessories can do for you, call us today at 1-800-838-0343 or visit our web site at www.omax.com Motorized Z-Axis Standard Features 8 3/4” Travel in Z direction Controller pre-programmable, automatic stand-off distance to insure proper nozzle height off of work piece Jog up/down at user settable speeds and distances Manual controls to move specific amounts Heads up traversing to avoid obstacles “Move all up” command to quickly move nozzle out of the way after a tool path has completed 6 5 4 3 2 1 8 7 The OMAX Technology Guarantee entitles you, as the original owner, to free software upgrades for the life of the machine. Accessory Specs Can be pre-programmed using OMAX 3-D Path Editor Software to follow vertical contours of parts and avoid obstacles. Maximum programmable slope is 60 degrees when contour following. Can be programmed by most other CAD/CAM software through custom post processor Requirement Windows upgrade, contact technical support for information.
