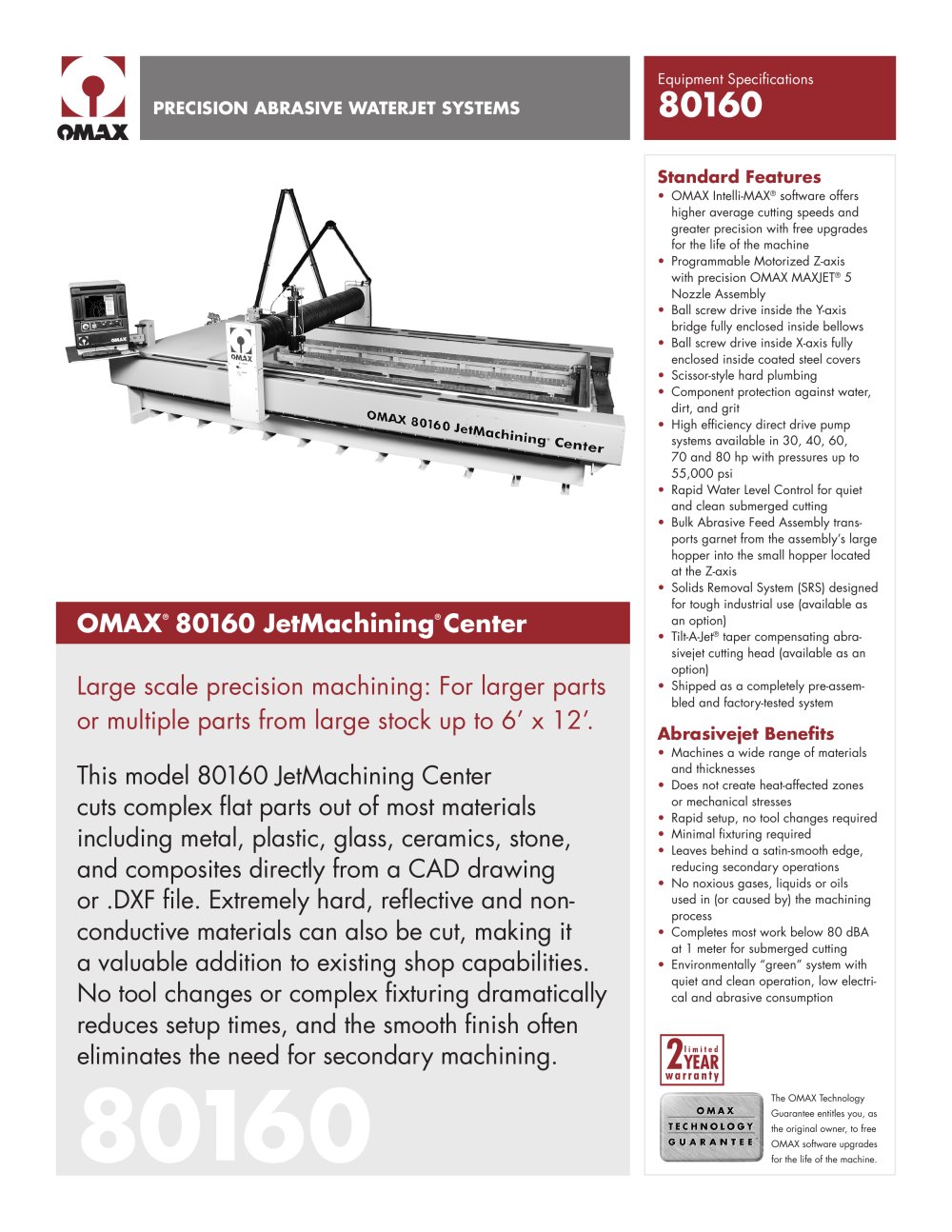

C o r p o r a t i o n PRECISION ABRASIVE WATERJET SYSTEMS Equipment Specifications 80160 OMAX® 80160 JetMachining® Center 80160 This model 80160 JetMachining Center cuts complex flat parts out of most materials including metal, plastic, glass, ceramics, stone, and composites directly from a CAD drawing or .DXF file. Extremely hard, reflective and nonconductive materials can also be cut, making it a valuable addition to existing shop capabilities. No tool changes or complex fixturing dramatically reduces setup times, and the smooth finish often eliminates the need for secondary machining. Large scale precision machining: For larger parts or multiple parts from large stock up to 6’ x 12’. Standard Features • OMAX Intelli-MAX® software offers higher average cutting speeds and greater precision with free upgrades for the life of the machine • Programmable Motorized Z-axis with precision OMAX MAXJET® 5 Nozzle Assembly • Ball screw drive inside the Y-axis bridge fully enclosed inside bellows • Ball screw drive inside X-axis fully enclosed inside coated steel covers • Scissor-style hard plumbing • Component protection against water, dirt, and grit • High efficiency direct drive pump systems available in 30, 40, 60, 70 and 80 hp with pressures up to 55,000 psi • Rapid Water Level Control for quiet and clean submerged cutting • Bulk Abrasive Feed Assembly transports garnet from the assembly’s large hopper into the small hopper located at the Z-axis • Solids Removal System (SRS) designed for tough industrial use (available as an option) • Tilt-A-Jet® taper compensating abrasivejet cutting head (available as an option) • Shipped as a completely pre-assembled and factory-tested system Abrasivejet Benefits • Machines a wide range of materials and thicknesses • Does not create heat-affected zones or mechanical stresses • Rapid setup, no tool changes required • Minimal fixturing required • Leaves behind a satin-smooth edge, reducing secondary operations • No noxious gases, liquids or oils used in (or caused by) the machining process • Completes most work below 80 dBA at 1 meter for submerged cutting • Environmentally “green” system with quiet and clean operation, low electrical and abrasive consumption The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine.

Open the catalog to page 1

Note: Specifications subject to change without notice. Printed in the U.S.A © June 2008 All rights reserved. OC-0014 OMAX 80160 JetMachining Center Options • Dual Pump Package (redundant 30 hp or 40 hp option) • Tilt-A-Jet Cutting Head for taper compensation • Solids Removal System (SRS) • Terrain Follower (TF) • Z-axis Drill • Precision Optical Locator (POL) • Water-only MAXJET 5 for cutting soft materials • OMAX MAXJET 5 MiniJet Nozzle Assembly • Second MAXJET 5 with Motorized Z-axis and all necessary hard plumbing (requires second Y-axis carriage) • Manual Tilt Z • Stone Cutting Kit •...
