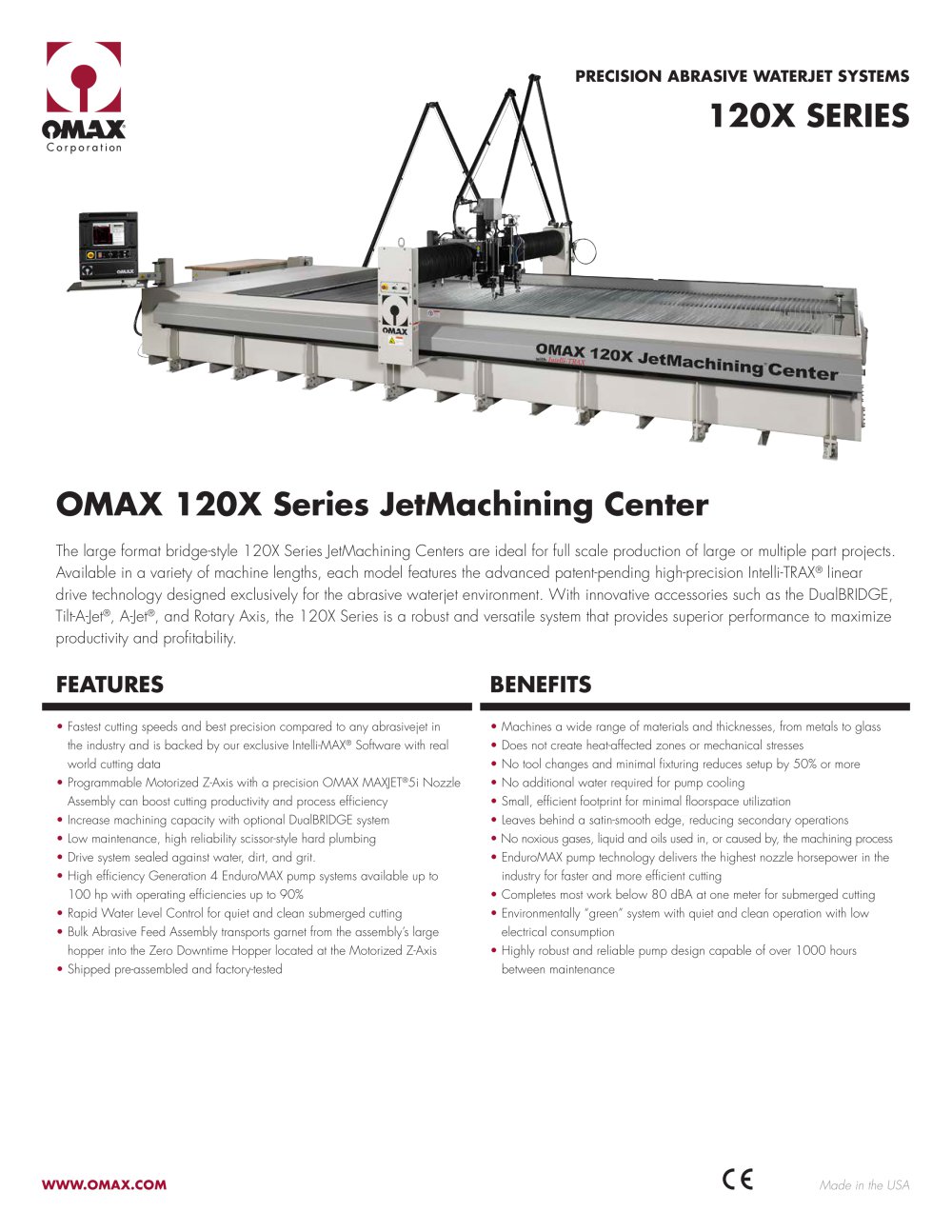

PRECISION ABRASIVE WATERJET SYSTEMS OMAX 120X Series JetMachining Center The large format bridge-style 120X Series JetMachining Centers are ideal for full scale production of large or multiple part projects. Available in a variety of machine lengths, each model features the advanced patent-pending high-precision Intelli-TRAX® linear drive technology designed exclusively for the abrasive waterjet environment. With innovative accessories such as the DualBRIDGE, Tilt-A-Jet®, A-Jet®, and Rotary Axis, the 120X Series is a robust and versatile system that provides superior performance to maximize productivity and profitability. • astest cutting speeds and best precision compared to any abrasivejet in F the industry and is backed by our exclusive Intelli-MAX® Software with real world cutting data • rogrammable Motorized Z-Axis with a precision OMAX MAXJET®5i Nozzle P Assembly can boost cutting productivity and process efficiency • ncrease machining capacity with optional DualBRIDGE system I • ow maintenance, high reliability scissor-style hard plumbing L • rive system sealed against water, dirt, and grit. D • igh efficiency Generation 4 EnduroMAX pump systems available up to H 100 hp with operating efficiencies up to 90% • apid Water Level Control for quiet and clean submerged cutting R • ulk Abrasive Feed Assembly transports garnet from the assembly’s large B hopper into the Zero Downtime Hopper located at the Motorized Z-Axis • hipped pre-assembled and factory-tested S • achines a wide range of materials and thicknesses, from metals to glass M • Does not create heat-affected zones or mechanical stresses • o tool changes and minimal fixturing reduces setup by 50% or more N • o additional water required for pump cooling N • mall, efficient footprint for minimal floorspace utilization S • eaves behind a satin-smooth edge, reducing secondary operations L • o noxious gases, liquid and oils used in, or caused by, the machining process N • nduroMAX pump technology delivers the highest nozzle horsepower in the E industry for faster and more efficient cutting • ompletes most work below 80 dBA at one meter for submerged cutting C • nvironmentally “green” system with quiet and clean operation with low E electrical consumption • ighly robust and reliable pump design capable of over 1000 hours H between maintenance
Open the catalog to page 1120X SERIES MACHINE DIMENSIONS STANDARD MODEL SPECIFICATIONS Footprint (with controller) Weight (tank empty) Height (with scissor plumbing) Operating Weight Material Support Slats Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter) Electrical Requirements Noise Level Below 80 dBA at one meter for submerged cutting 180 in/min to 350 in/min (4,572 mm/min to 8,890 mm/min) WORK ENVELOPE X-Y Cutting Travel* Z-Axis Travel* Table Size OPTIONAL ACCESSORIES DRIVE DESCRIPTION • losed loop, digital drives C • rushless servo motors B Ballbar Circularity (Over 12") • Intelli-TRAX drive...
