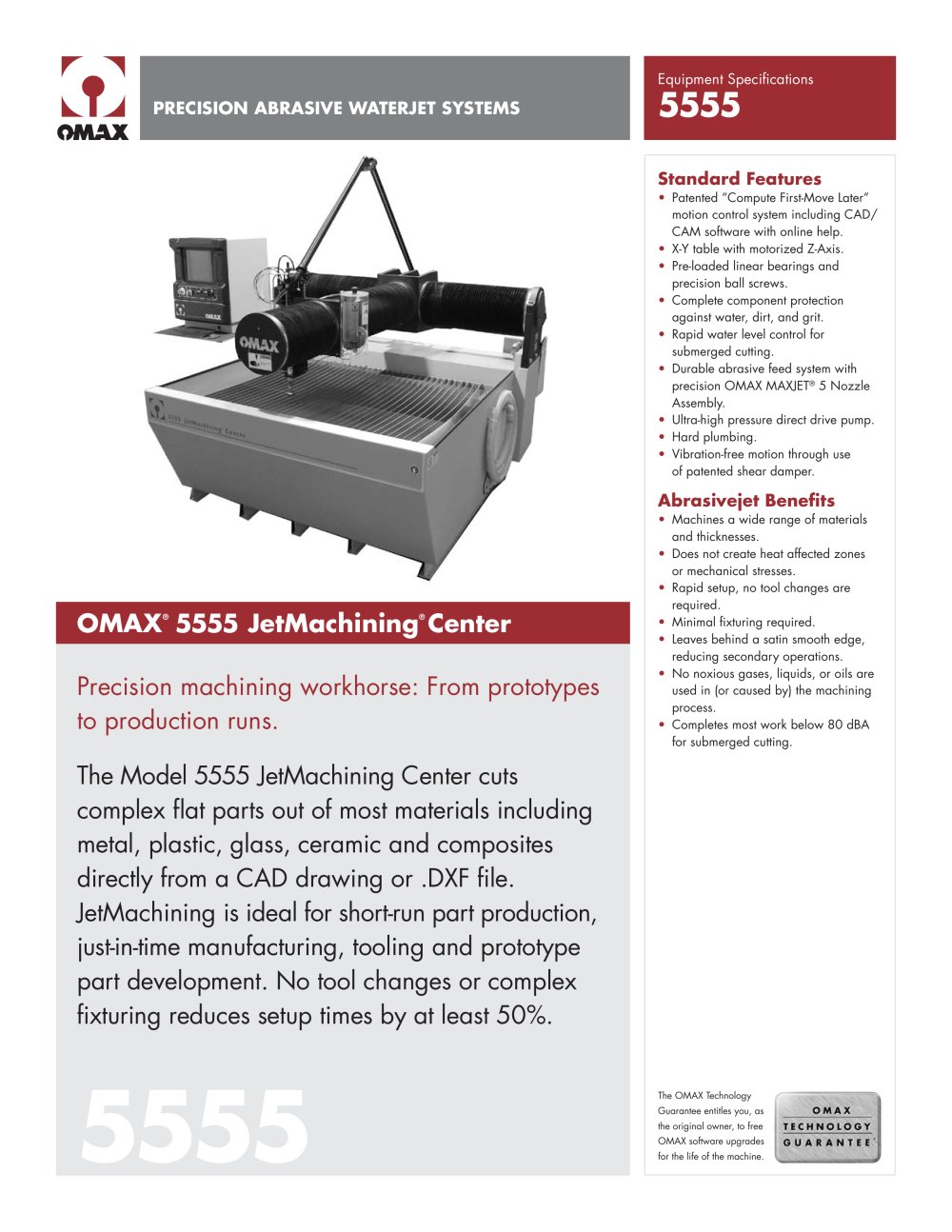

C o r p o r a t i o n PRECISION ABRASIVE WATERJET SYSTEMS Equipment Specifications 5555 OMAX® 5555 JetMachining® Center 5555 Standard Features • Patented “Compute First-Move Later” motion control system including CAD/ CAM software with online help. • X-Y table with motorized Z-Axis. • Pre-loaded linear bearings and precision ball screws. • Complete component protection against water, dirt, and grit. • Rapid water level control for submerged cutting. • Durable abrasive feed system with precision OMAX MAXJET® 5 Nozzle Assembly. • Ultra-high pressure direct drive pump. • Hard plumbing. • Vibration-free motion through use of patented shear damper. Abrasivejet Benefits • Machines a wide range of materials and thicknesses. • Does not create heat affected zones or mechanical stresses. • Rapid setup, no tool changes are required. • Minimal fixturing required. • Leaves behind a satin smooth edge, reducing secondary operations. • No noxious gases, liquids, or oils are used in (or caused by) the machining process. • Completes most work below 80 dBA for submerged cutting. Precision machining workhorse: From prototypes to production runs. The Model 5555 JetMachining Center cuts complex flat parts out of most materials including metal, plastic, glass, ceramic and composites directly from a CAD drawing or .DXF file. JetMachining is ideal for short-run part production, just-in-time manufacturing, tooling and prototype part development. No tool changes or complex fixturing reduces setup times by at least 50%. The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine.

Open the catalog to page 1

Note: Specifications subject to change without notice. C o r p o r a t i o n OMAX Corporation 21409 72nd Ave South, Kent, WA 98032 253-872-2300 tel 253-872-6190 fax 1-800-838-0343 toll-free WWW.OMAX.COM website Printed in the U.S.A © December 2007 All rights reserved. OC-0028 OMAX 5555 JetMachining Center Machine Dimensions Footprint 131” x 95” (3327 mm x 2413 mm) Weight 6291 lb (2854 kg) Height 118” (2998 mm) Operating Weight 13,000 lb (5897 kg) (with water in tank) Work Envelope X-Y Travel 55” x 55” (1397 mm x 1397 mm) Table Size 80” x 65” (2032 mm x 1650 mm) Material Supported Slats 4” x...

Open the catalog to page 2
