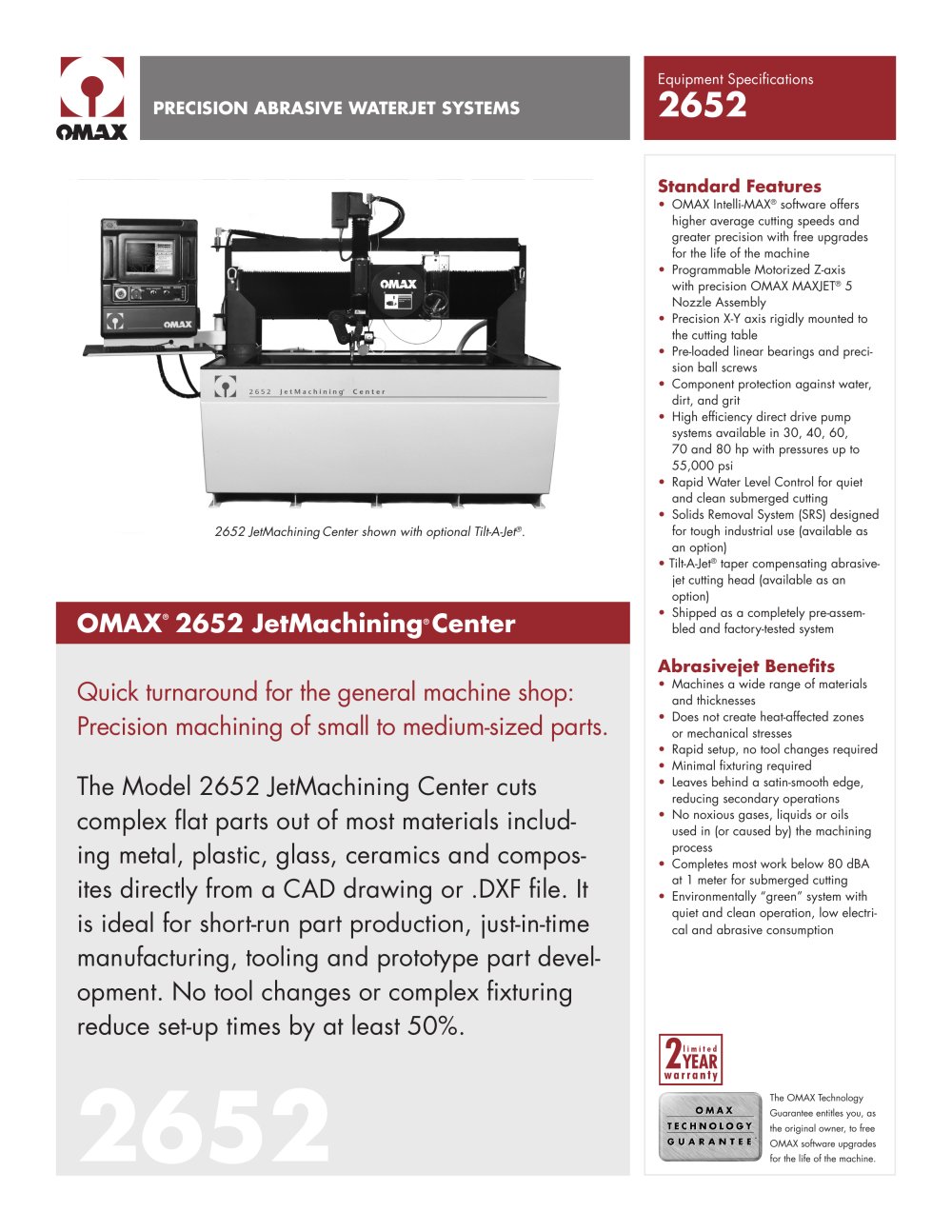

PRECISION ABRASIVE WATERJET SYSTEMS Equipment Specifications 2652 OMAX® 2652 JetMachining® Center 2652 Standard Features • OMAX Intelli-MAX® software offers higher average cutting speeds and greater precision with free upgrades for the life of the machine • Programmable Motorized Z-axis with precision OMAX MAXJET® 5 Nozzle Assembly • Precision X-Y axis rigidly mounted to the cutting table • Pre-loaded linear bearings and precision ball screws • Component protection against water, dirt, and grit • High efficiency direct drive pump systems available in 30, 40, 60, 70 and 80 hp with pressures up to 55,000 psi • Rapid Water Level Control for quiet and clean submerged cutting • Solids Removal System (SRS) designed for tough industrial use (available as an option) • Tilt-A-Jet® taper compensating abrasivejet cutting head (available as an option) • Shipped as a completely pre-assembled and factory-tested system Abrasivejet Benefits • Machines a wide range of materials and thicknesses • Does not create heat-affected zones or mechanical stresses • Rapid setup, no tool changes required • Minimal fixturing required • Leaves behind a satin-smooth edge, reducing secondary operations • No noxious gases, liquids or oils used in (or caused by) the machining process • Completes most work below 80 dBA at 1 meter for submerged cutting • Environmentally “green” system with quiet and clean operation, low electrical and abrasive consumption The Model 2652 JetMachining Center cuts complex flat parts out of most materials including metal, plastic, glass, ceramics and composites directly from a CAD drawing or .DXF file. It is ideal for short-run part production, just-in-time manufacturing, tooling and prototype part development. No tool changes or complex fixturing reduce set-up times by at least 50%. Quick turnaround for the general machine shop: Precision machining of small to medium-sized parts. 2652 JetMachining Center shown with optional Tilt-A-Jet®. The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine. C o r p o r a t i o n

Open the catalog to page 1

Machine Dimensions Footprint 139” x 67” (3531 mm x 1702 mm) Weight (tank empty) 3320 lb (1505 kg) Height 77” (1955 mm) Operating Weight 9150 lb (4150 kg) (with water in tank) Work Envelope X-Y Travel 52” x 26” (1321 mm x 660 mm) Table Size 69”x 30” (1753 mm x 762 mm) Material Supported Slats 4” x 1/8” Galvanized Steel Maximum Supported Material Load 250lbs/sq.ft. (1,200 kg/sq. meter) (Optional accessories may reduce travel. Contact OMAX for information.) Computer Control System Hardware Personal computer Control Software Integrated CAD/CAM system directly uses .DXF files Drive Description •...
