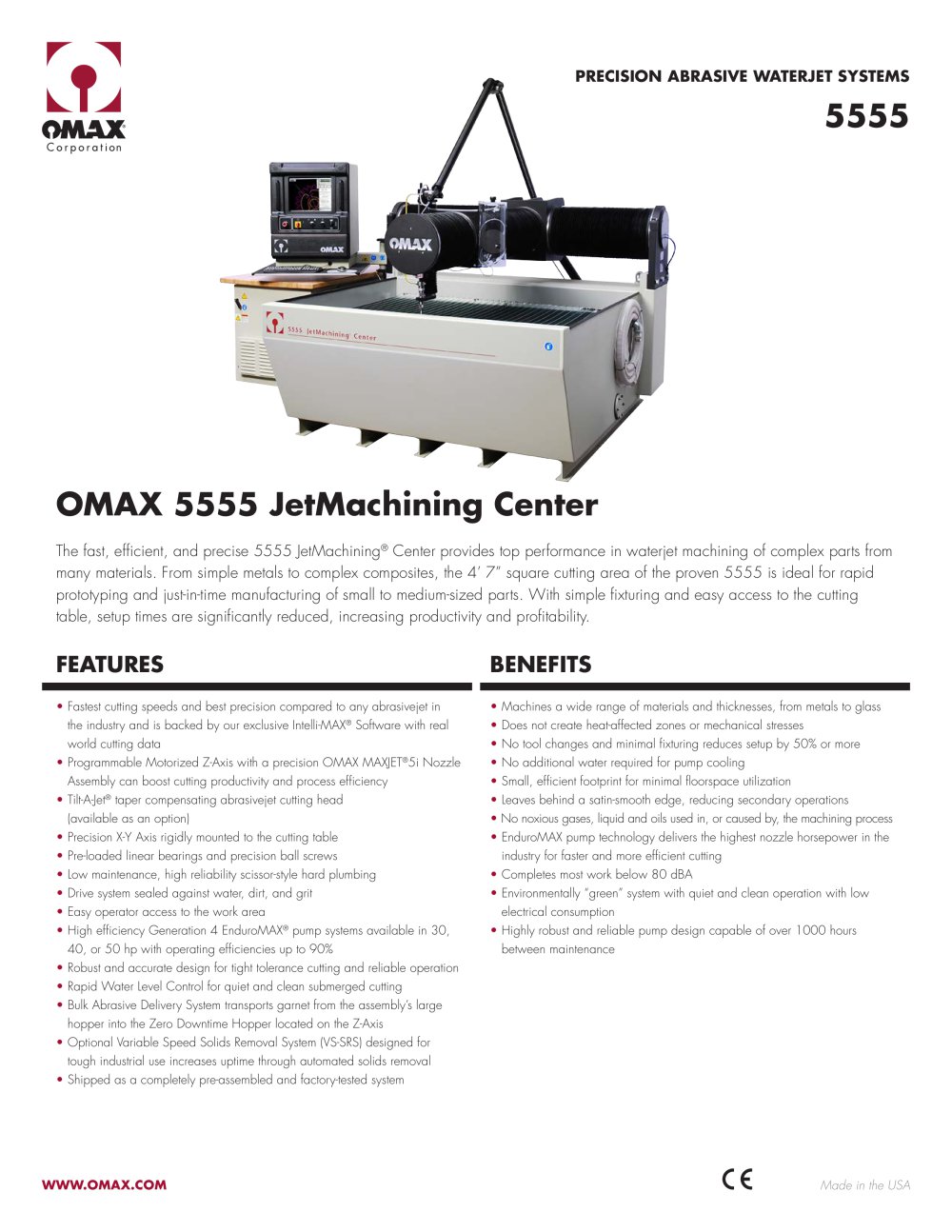

PRECISION ABRASIVE WATERJET SYSTEMS OMAX 5555 JetMachining Center The fast, efficient, and precise 5555 JetMachining® Center provides top performance in waterjet machining of complex parts from many materials. From simple metals to complex composites, the 4’ 7” square cutting area of the proven 5555 is ideal for rapid prototyping and just-in-time manufacturing of small to medium-sized parts. With simple fixturing and easy access to the cutting table, setup times are significantly reduced, increasing productivity and profitability. • astest cutting speeds and best precision compared to any abrasivejet in F the industry and is backed by our exclusive Intelli-MAX® Software with real world cutting data • rogrammable Motorized Z-Axis with a precision OMAX MAXJET®5i Nozzle P Assembly can boost cutting productivity and process efficiency • Tilt-A-Jet® taper compensating abrasivejet cutting head (available as an option) • recision X-Y Axis rigidly mounted to the cutting table P • re-loaded linear bearings and precision ball screws P • ow maintenance, high reliability scissor-style hard plumbing L • rive system sealed against water, dirt, and grit D • asy operator access to the work area E • igh efficiency Generation 4 EnduroMAX® pump systems available in 30, H 40, or 50 hp with operating efficiencies up to 90% • obust and accurate design for tight tolerance cutting and reliable operation R • apid Water Level Control for quiet and clean submerged cutting R • ulk Abrasive Delivery System transports garnet from the assembly’s large B hopper into the Zero Downtime Hopper located on the Z-Axis • ptional Variable Speed Solids Removal System (VS-SRS) designed for O tough industrial use increases uptime through automated solids removal • hipped as a completely pre-assembled and factory-tested system S • achines a wide range of materials and thicknesses, from metals to glass M • Does not create heat-affected zones or mechanical stresses • o tool changes and minimal fixturing reduces setup by 50% or more N • o additional water required for pump cooling N • mall, efficient footprint for minimal floorspace utilization S • eaves behind a satin-smooth edge, reducing secondary operations L • o noxious gases, liquid and oils used in, or caused by, the machining process N • nduroMAX pump technology delivers the highest nozzle horsepower in the E industry for faster and more efficient cutting • ompletes most work below 80 dBA C • nvironmentally “green” system with quiet and clean operation with low E electrical consumption • ighly robust and reliable pump design capable of over 1000 hours H between maintenance

Open the catalog to page 1

STANDARD MODEL SPECIFICATIONS Footprint (with controller) Material Support Slats Weight (tank empty) Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter) Height (with scissor plumbing) Electrical Requirements Operating Weight Below 80 dBA at one meter for submerged cutting WORK ENVELOPE X-Y Cutting Travel* Z-Axis Travel (with Motorized Z Axis)* Table Size Ballbar Circularity (Over 12”) OPTIONAL ACCESSORIES DRIVE DESCRIPTION • losed loop, digital drives C • rushless servo motors B • re-loaded ball screws, recirculating P ball bearings • inear bearings with hardened, L precision...
