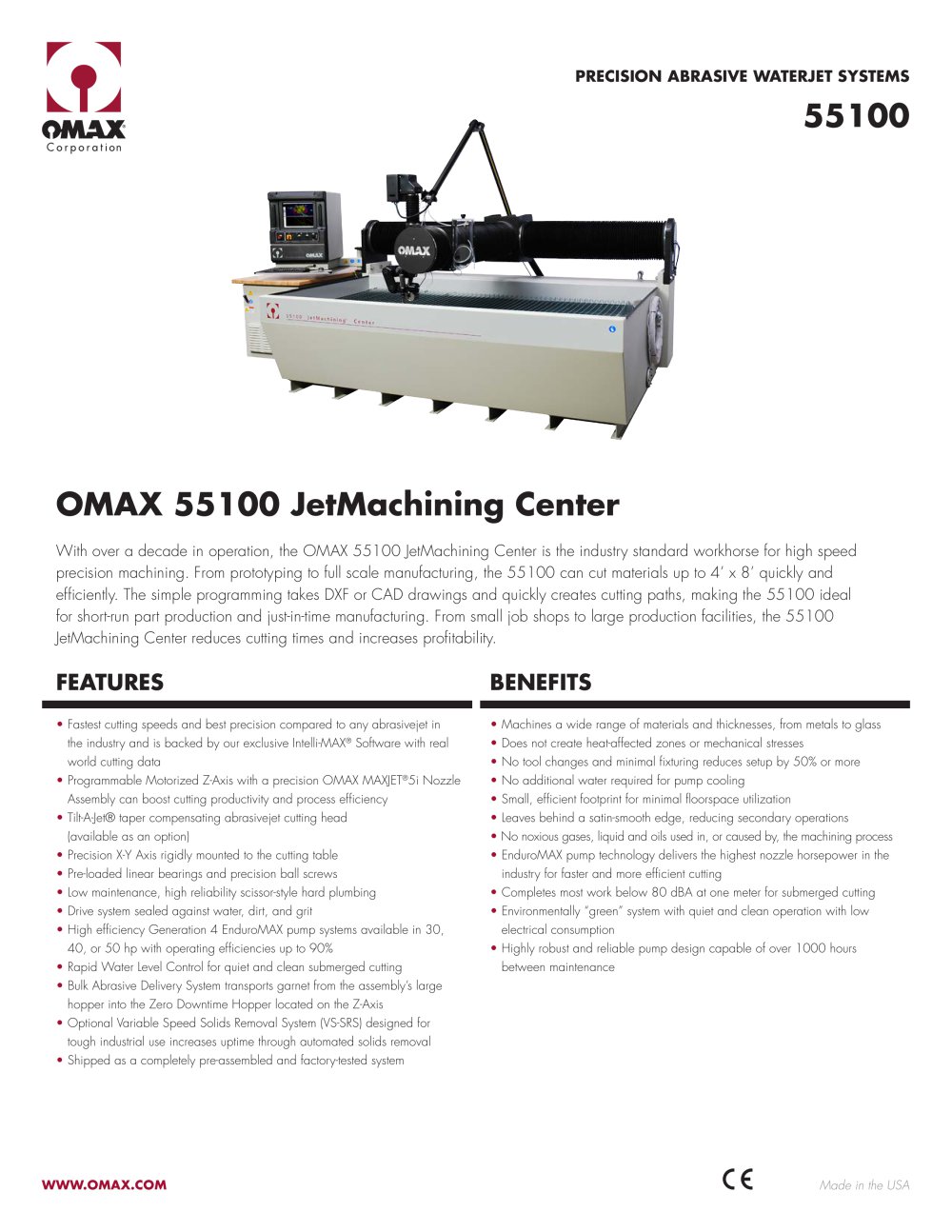

PRECISION ABRASIVE WATERJET SYSTEMS OMAX 55100 JetMachining Center With over a decade in operation, the OMAX 55100 JetMachining Center is the industry standard workhorse for high speed precision machining. From prototyping to full scale manufacturing, the 55100 can cut materials up to 4’ x 8’ quickly and efficiently. The simple programming takes DXF or CAD drawings and quickly creates cutting paths, making the 55100 ideal for short-run part production and just-in-time manufacturing. From small job shops to large production facilities, the 55100 JetMachining Center reduces cutting times and increases profitability. • astest cutting speeds and best precision compared to any abrasivejet in F the industry and is backed by our exclusive Intelli-MAX® Software with real world cutting data • rogrammable Motorized Z-Axis with a precision OMAX MAXJET®5i Nozzle P Assembly can boost cutting productivity and process efficiency • ilt-A-Jet® taper compensating abrasivejet cutting head T (available as an option) • recision X-Y Axis rigidly mounted to the cutting table P • re-loaded linear bearings and precision ball screws P • ow maintenance, high reliability scissor-style hard plumbing L • rive system sealed against water, dirt, and grit D • igh efficiency Generation 4 EnduroMAX pump systems available in 30, H 40, or 50 hp with operating efficiencies up to 90% • apid Water Level Control for quiet and clean submerged cutting R • ulk Abrasive Delivery System transports garnet from the assembly’s large B hopper into the Zero Downtime Hopper located on the Z-Axis • ptional Variable Speed Solids Removal System (VS-SRS) designed for O tough industrial use increases uptime through automated solids removal • hipped as a completely pre-assembled and factory-tested system S • achines a wide range of materials and thicknesses, from metals to glass M • Does not create heat-affected zones or mechanical stresses • o tool changes and minimal fixturing reduces setup by 50% or more N • o additional water required for pump cooling N • mall, efficient footprint for minimal floorspace utilization S • eaves behind a satin-smooth edge, reducing secondary operations L • o noxious gases, liquid and oils used in, or caused by, the machining process N • nduroMAX pump technology delivers the highest nozzle horsepower in the E industry for faster and more efficient cutting • ompletes most work below 80 dBA at one meter for submerged cutting C • nvironmentally “green” system with quiet and clean operation with low E electrical consumption • ighly robust and reliable pump design capable of over 1000 hours H between maintenance
Open the catalog to page 1STANDARD MODEL SPECIFICATIONS Footprint (with controller) Material Support Slats Weight (tank empty) Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter) Height (with scissor plumbing) Electrical Requirements Operating Weight (with water in tank) Below 80 dBA at one meter for submerged cutting WORK ENVELOPE X-Y Cutting Travel* Z-Axis Travel* Table Size OPTIONAL ACCESSORIES DRIVE DESCRIPTION • losed loop, digital drives C • rushless servo motors B • re-loaded ball screws, recirculating P ball bearings Ballbar Circularity (Over 12”) • inear bearings with L hardened,precision...
