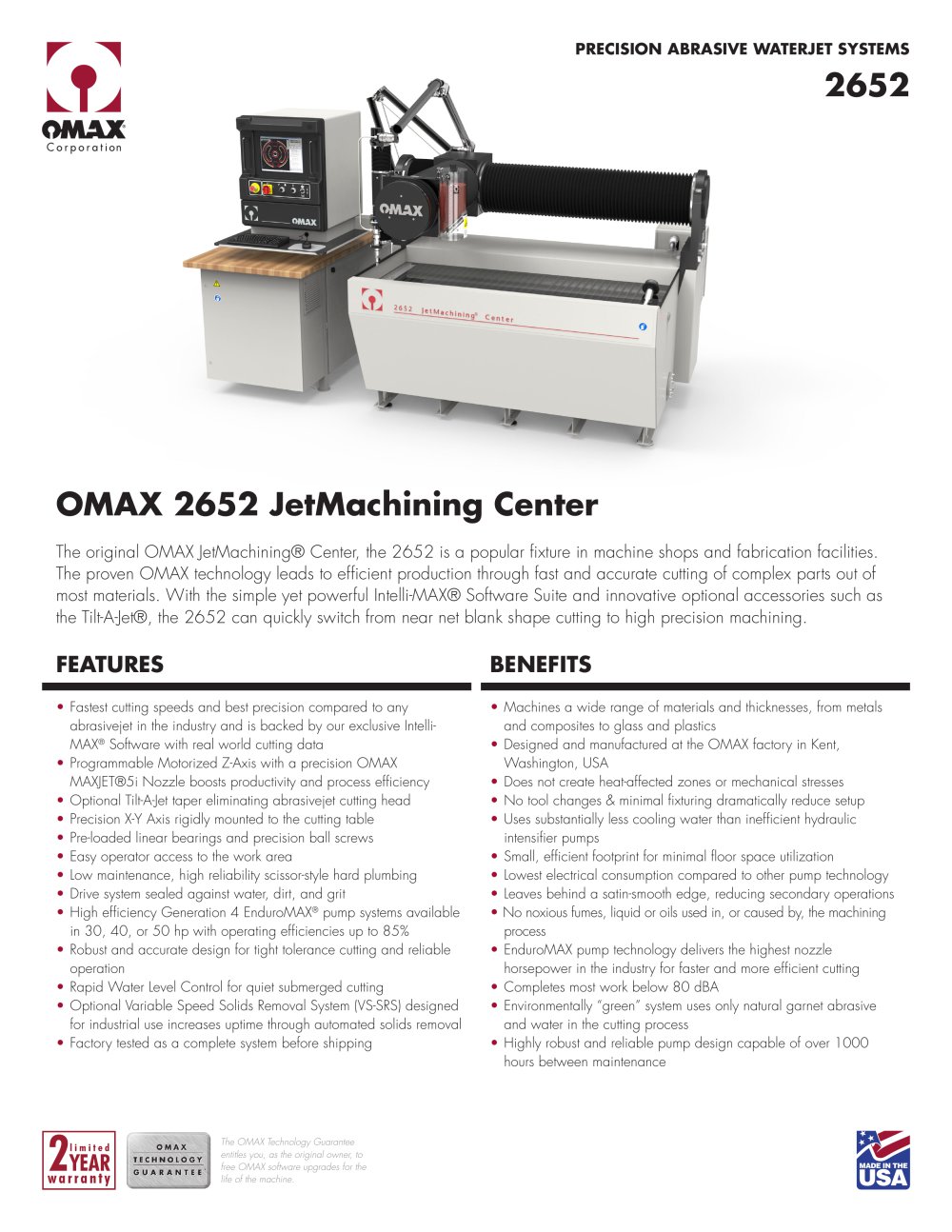

PRECISION ABRASIVE WATERJET SYSTEMS OMAX 2652 JetMachining Center The original OMAX JetMachining® Center, the 2652 is a popular fixture in machine shops and fabrication facilities. The proven OMAX technology leads to efficient production through fast and accurate cutting of complex parts out of most materials. With the simple yet powerful Intelli-MAX® Software Suite and innovative optional accessories such as the Tilt-A-Jet®, the 2652 can quickly switch from near net blank shape cutting to high precision machining. • astest cutting speeds and best precision compared to any F abrasivejet in the industry and is backed by our exclusive IntelliMAX® Software with real world cutting data • rogrammable Motorized Z-Axis with a precision OMAX P MAXJET®5i Nozzle boosts productivity and process efficiency • ptional Tilt-A-Jet taper eliminating abrasivejet cutting head O • recision X-Y Axis rigidly mounted to the cutting table P • re-loaded linear bearings and precision ball screws P • asy operator access to the work area E • ow maintenance, high reliability scissor-style hard plumbing L • rive system sealed against water, dirt, and grit D • igh efficiency Generation 4 EnduroMAX® pump systems available H in 30, 40, or 50 hp with operating efficiencies up to 85% • obust and accurate design for tight tolerance cutting and reliable R operation • apid Water Level Control for quiet submerged cutting R • Optional Variable Speed Solids Removal System (VS-SRS) designed for industrial use increases uptime through automated solids removal • Factory tested as a complete system before shipping • achines a wide range of materials and thicknesses, from metals M and composites to glass and plastics • Designed and manufactured at the OMAX factory in Kent, Washington, USA • Does not create heat-affected zones or mechanical stresses • o tool changes & minimal fixturing dramatically reduce setup N • ses substantially less cooling water than inefficient hydraulic U intensifier pumps • mall, efficient footprint for minimal floor space utilization S • Lowest electrical consumption compared to other pump technology • eaves behind a satin-smooth edge, reducing secondary operations L • o noxious fumes, liquid or oils used in, or caused by, the machining N process • nduroMAX pump technology delivers the highest nozzle E horsepower in the industry for faster and more efficient cutting • ompletes most work below 80 dBA C • nvironmentally “green” system uses only natural garnet abrasive E and water in the cutting process • ighly robust and reliable pump design capable of over 1000 H hours between maintenance The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine.

Open the catalog to page 1

STANDARD MODEL SPECIFICATIONS Footprint (with controller) Weight (tank empty) Height (with scissor plumbing) Operating Weight Material Support Slats Maximum Supported Material Load X-Y Cutting Travel* Z-Axis Travel (with Motorized Z Axis)* Table Size 180 in/min (4,572 mm/min) Ballbar Circularity Accuracy of Motion at 70˚ F (Over 12”) OPTIONAL ACCESSORIES DRIVE DESCRIPTION • losed loop, digital drives C • rushless servo motors B • re-loaded ball screws, P recirculating ball bearings Below 80 dBA at one meter for submerged cutting Noise Level WORK ENVELOPE 400 lbs/sq ft (1,950 kg/sq...
