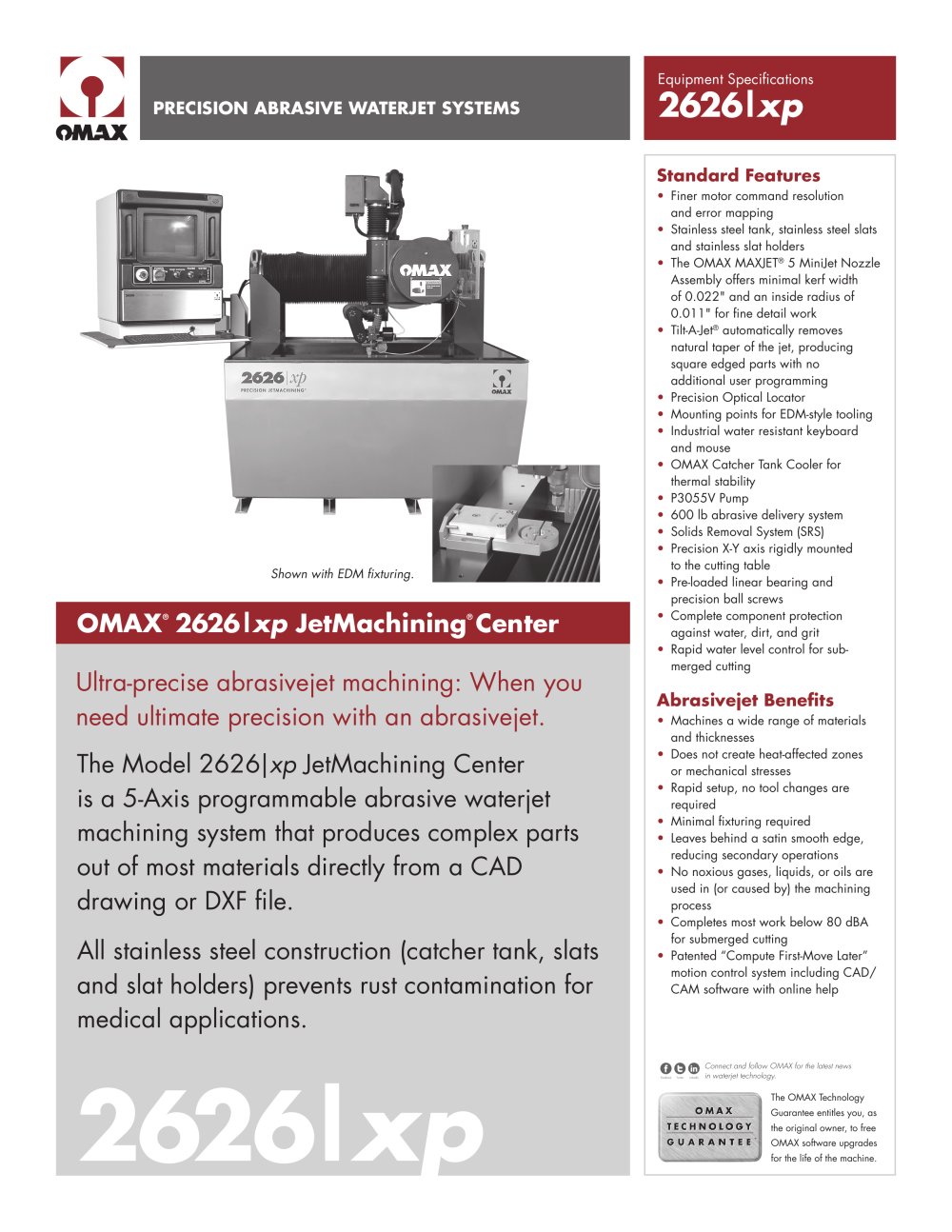

PRECISION ABRASIVE WATERJET SYSTEMS Equipment Specifications 2626|xp OMAX® 2626|xp JetMachining® Center 2626|xp Ultra-precise abrasivejet machining: When you need ultimate precision with an abrasivejet. Standard Features • Finer motor command resolution and error mapping • Stainless steel tank, stainless steel slats and stainless slat holders • The OMAX MAXJET® 5 MiniJet Nozzle Assembly offers minimal kerf width of 0.022" and an inside radius of 0.011" for fine detail work • Tilt-A-Jet® automatically removes natural taper of the jet, producing square edged parts with no additional user programming • Precision Optical Locator • Mounting points for EDM-style tooling • Industrial water resistant keyboard and mouse • OMAX Catcher Tank Cooler for thermal stability • P3055V Pump • 600 lb abrasive delivery system • Solids Removal System (SRS) • Precision X-Y axis rigidly mounted to the cutting table • Pre-loaded linear bearing and precision ball screws • Complete component protection against water, dirt, and grit • Rapid water level control for submerged cutting Abrasivejet Benefits • Machines a wide range of materials and thicknesses • Does not create heat-affected zones or mechanical stresses • Rapid setup, no tool changes are required • Minimal fixturing required • Leaves behind a satin smooth edge, reducing secondary operations • No noxious gases, liquids, or oils are used in (or caused by) the machining process • Completes most work below 80 dBA for submerged cutting • Patented “Compute First-Move Later” motion control system including CAD/CAM software with online help Shown with EDM fixturing. The Model 2626|xp JetMachining Center is a 5-Axis programmable abrasive waterjet machining system that produces complex parts out of most materials directly from a CAD drawing or DXF file. All stainless steel construction (catcher tank, slats and slat holders) prevents rust contamination for medical applications. C o r p o r a t i o n The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine. Connect and follow OMAX for the latest news in waterjet technology.

Open the catalog to page 1

Note: Specifications subject to change without notice. OMAX 2626|xp JetMachining Center Machine Dimensions Footprint (with controller) 72" x 116" (1,829 mm x 2,946 mm) Weight (tank empty) 3,520 lb (1,600 kg) Height 95" (2,413 mm) Operating Weight 7,017 lb (3,190 kg) (with water in tank) Work Envelope X-Y Cutting Area 29" x 25" (737 mm x 635 mm) Table Size 46" x 31" (1,168 mm x 787 mm) (Optional accessories may reduce travel.) Computer Control System Hardware Windows® 7 PC-based controller Control Software Integrated CAD/CAM system directly uses DXF files Drive Description • Closed loop,...
