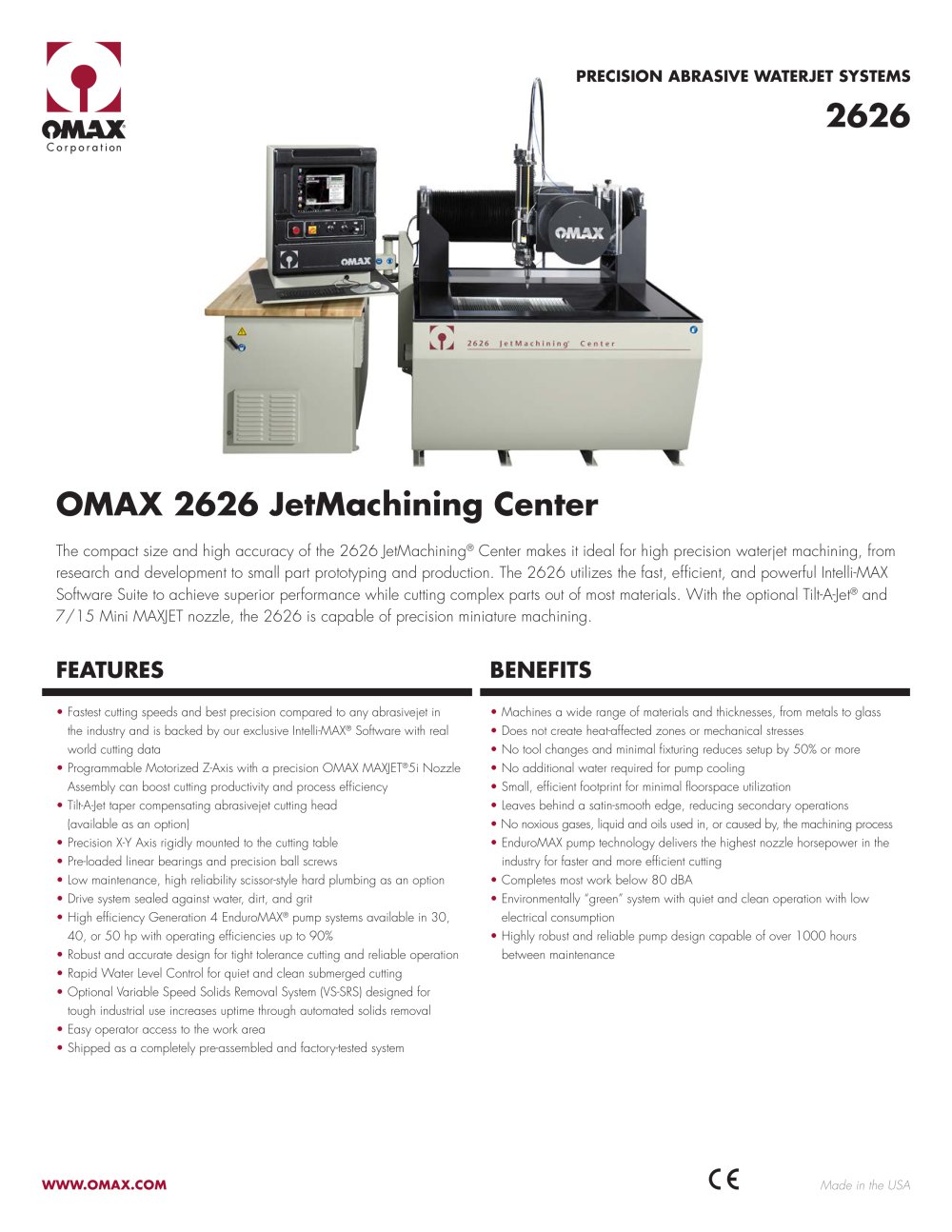

PRECISION ABRASIVE WATERJET SYSTEMS OMAX 2626 JetMachining Center The compact size and high accuracy of the 2626 JetMachining® Center makes it ideal for high precision waterjet machining, from research and development to small part prototyping and production. The 2626 utilizes the fast, efficient, and powerful Intelli-MAX Software Suite to achieve superior performance while cutting complex parts out of most materials. With the optional Tilt-A-Jet® and 7/15 Mini MAXJET nozzle, the 2626 is capable of precision miniature machining. • astest cutting speeds and best precision compared to any abrasivejet in F the industry and is backed by our exclusive Intelli-MAX® Software with real world cutting data • rogrammable Motorized Z-Axis with a precision OMAX MAXJET®5i Nozzle P Assembly can boost cutting productivity and process efficiency • ilt-A-Jet taper compensating abrasivejet cutting head T (available as an option) P • recision X-Y Axis rigidly mounted to the cutting table • re-loaded linear bearings and precision ball screws P • ow maintenance, high reliability scissor-style hard plumbing as an option L • rive system sealed against water, dirt, and grit D • igh efficiency Generation 4 EnduroMAX® pump systems available in 30, H 40, or 50 hp with operating efficiencies up to 90% • obust and accurate design for tight tolerance cutting and reliable operation R • apid Water Level Control for quiet and clean submerged cutting R • ptional Variable Speed Solids Removal System (VS-SRS) designed for O tough industrial use increases uptime through automated solids removal • asy operator access to the work area E • hipped as a completely pre-assembled and factory-tested system S • achines a wide range of materials and thicknesses, from metals to glass M • Does not create heat-affected zones or mechanical stresses • o tool changes and minimal fixturing reduces setup by 50% or more N • o additional water required for pump cooling N • mall, efficient footprint for minimal floorspace utilization S • eaves behind a satin-smooth edge, reducing secondary operations L • o noxious gases, liquid and oils used in, or caused by, the machining process N • nduroMAX pump technology delivers the highest nozzle horsepower in the E industry for faster and more efficient cutting • ompletes most work below 80 dBA C • nvironmentally “green” system with quiet and clean operation with low E electrical consumption • ighly robust and reliable pump design capable of over 1000 hours H between maintenance

Open the catalog to page 1

STANDARD MODEL SPECIFICATIONS Footprint (with controller) Material Support Slats Weight (tank empty) Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter) Height (with scissor plumbing) Electrical Requirements Operating Weight Below 80 dBA at one meter for submerged cutting WORK ENVELOPE X-Y Cutting Travel* Z-Axis Travel (with Motorized Z Axis)* Table Size OPTIONAL ACCESSORIES DRIVE DESCRIPTION • losed loop, digital drives C • rushless servo motors B • re-loaded ball screws, recirculating P ball bearings Ballbar Circularity (Over 12”) • inear bearings with L hardened,precision...
