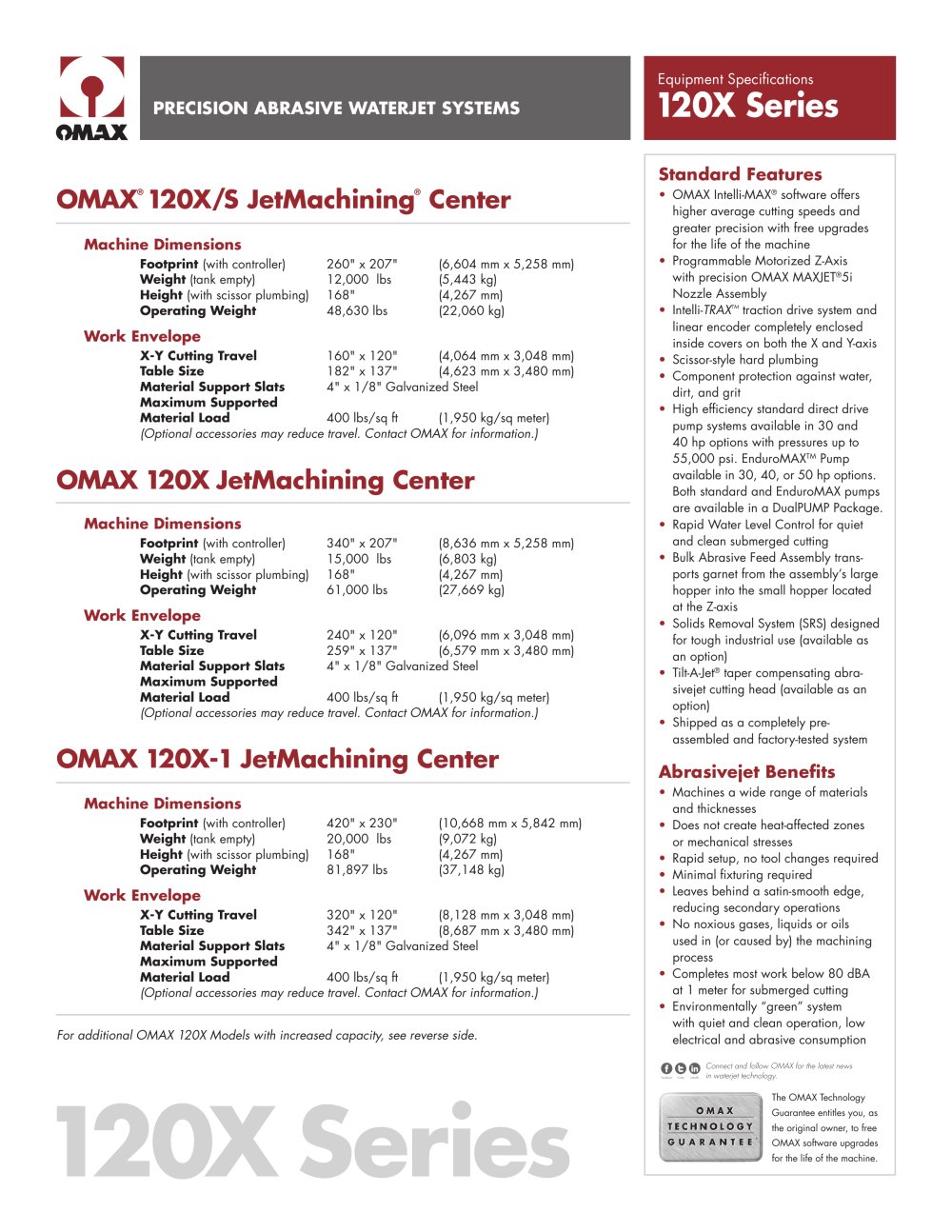

OMAX® 120X JetMachining® Center Series - 1

PRECISION ABRASIVE WATERJET SYSTEMS Equipment Specifications 120X Series The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine. Connect and follow OMAX for the latest news in waterjet technology. Standard Features • OMAX Intelli-MAX® software offers higher average cutting speeds and greater precision with free upgrades for the life of the machine • Programmable Motorized Z-Axis with precision OMAX MAXJET®5i Nozzle Assembly • Intelli-TRAXTM traction drive system and linear encoder completely enclosed inside covers on both the X and Y-axis • Scissor-style hard plumbing • Component protection against water, dirt, and grit • High efficiency standard direct drive pump systems available in 30 and 40 hp options with pressures up to 55,000 psi. EnduroMAXTM Pump available in 30, 40, or 50 hp options. Both standard and EnduroMAX pumps are available in a DualPUMP Package. • Rapid Water Level Control for quiet and clean submerged cutting • Bulk Abrasive Feed Assembly trans-ports garnet from the assembly’s large hopper into the small hopper located at the Z-axis • Solids Removal System (SRS) designed for tough industrial use (available as an option) • Tilt-A-Jet® taper compensating abra- sivejet cutting head (available as an option) • Shipped as a completely pre- assembled and factory-tested system Abrasivejet Benefits • Machines a wide range of materials and thicknesses • Does not create heat-affected zones or mechanical stresses • Rapid setup, no tool changes required • Minimal fixturing required • Leaves behind a satin-smooth edge, reducing secondary operations • No noxious gases, liquids or oils used in (or caused by) the machining process • Completes most work below 80 dBA at 1 meter for submerged cutting • Environmentally “green” system with quiet and clean operation, low electrical and abrasive consumption Machine Dimensions Footprint (with controller) 260" x 207" (6,604 mm x 5,258 mm) Weight (tank empty) 12,000 lbs (5,443 kg) Height (with scissor plumbing) 168" (4,267 mm) Operating Weight 48,630 lbs (22,060 kg) Work Envelope X-Y Cutting Travel 160" x 120" (4,064 mm x 3,048 mm) Table Size 182" x 137" (4,623 mm x 3,480 mm) Material Support Slats 4" x 1/8" Galvanized Steel Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter) (Optional accessories may reduce travel. Contact OMAX for information.) OMAX® 120X/S JetMachining® Center For additional OMAX 120X Models with increased capacity, see reverse side. Machine Dimensions Footprint (with controller) 340" x 207" (8,636 mm x 5,258 mm) Weight (tank empty) 15,000 lbs (6,803 kg) Height (with scissor plumbing) 168" (4,267 mm) Operating Weight 61,000 lbs (27,669 kg) Work Envelope X-Y Cutting Travel 240" x 120" (6,096 mm x 3,048 mm) Table Size 259" x 137" (6,579 mm x 3,480 mm) Material Support Slats 4" x 1/8" Galvanized Steel Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter) (Optional accessories may reduce travel. Contact OMAX for information.) OMAX 120X JetMachining Center Machine Dimensions Footprint (with controller) 420" x 230" (10,668 mm x 5,842 mm) Weight (tank empty) 20,000 lbs (9,072 kg) Height (with scissor plumbing) 168" (4,267 mm) Operating Weight 81,897 lbs (37,148 kg) Work Envelope X-Y Cutting Travel 320" x 120" (8,128 mm x 3,048 mm) Table Size 342" x 137" (8,687 mm x 3,480 mm) Material Support Slats 4" x 1/8" Galvanized Steel Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter) (Optional accessories may reduce travel. Contact OMAX for information.) 120X Series C o r p o r a t i o n OMAX 120X-1 JetMachining Center

Open the catalog to page 1

OMAX® 120X JetMachining® Center Series - 2

Printed in the U.S.A © February 2011 All rights reserved. S-0044 OMAX 120X Series JetMachining Centers Machine Dimensions Footprint (with controller) 585" x 230" (14,859 mm x 5,842 mm) Weight (tank empty) 30,000 lbs (13,607 kg) Height (with scissor plumbing) 168" (4,267 mm) Operating Weight 117,160 lbs (53,142 kg) Work Envelope X-Y Cutting Travel 480" x 120" (12,192 mm x 3,048 mm) Table Size 502" x 137" (12,751 mm x 3,480 mm) Material Support Slats 4" x 1/8" Galvanized Steel Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter) (Optional accessories may reduce travel. Contact...

Open the catalog to page 2
