MiniJet Abrasive Waterjet Nozzle

MiniJet Abrasive Waterjet Nozzle
2Pages

Catalog excerpts

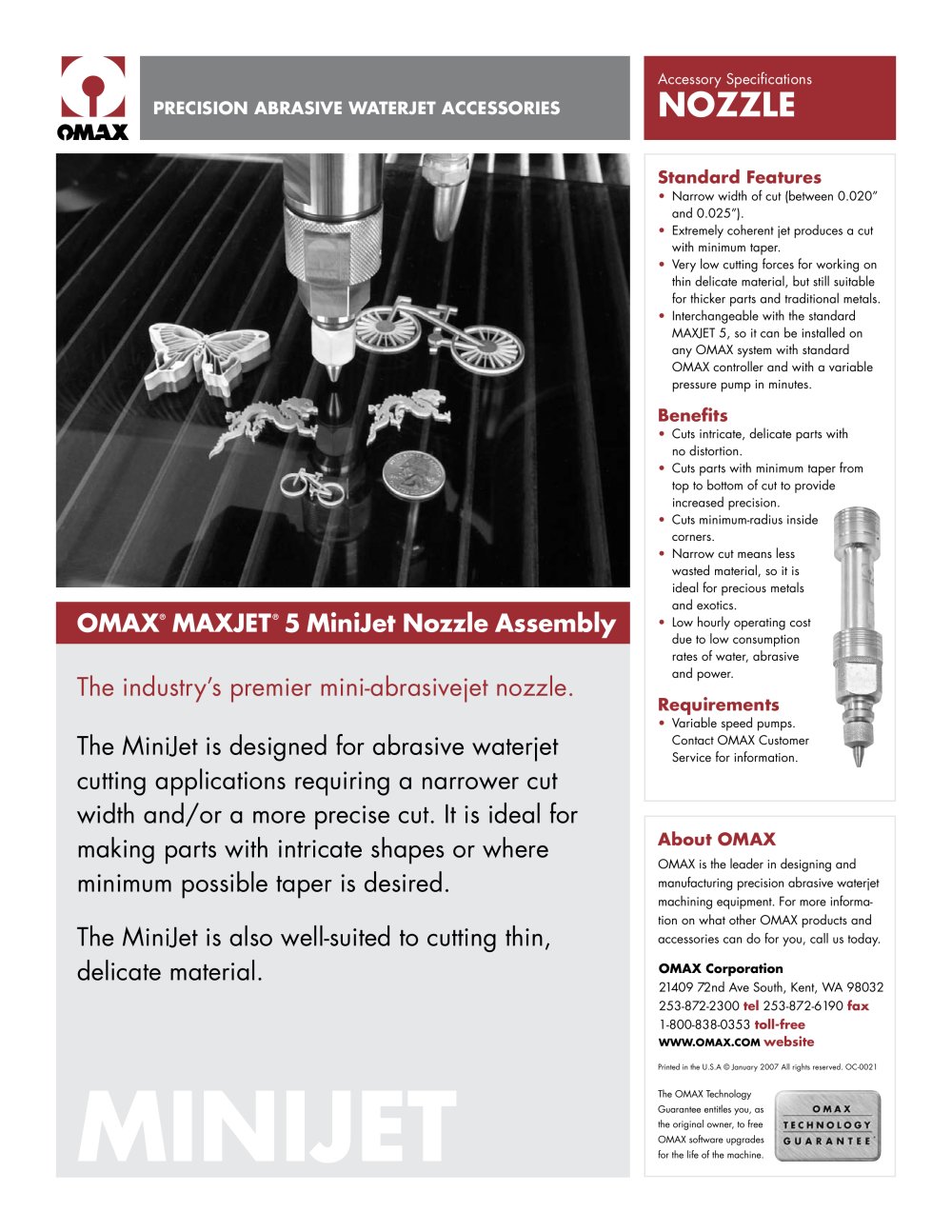

C o r p o r a t i o n PRECISION ABRASIVE WATERJET ACCESSORIES Accessory Specifications NOZZLE OMAX® MAXJET® 5 MiniJet Nozzle Assembly Minijet The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine. The industry’s premier mini-abrasivejet nozzle. The MiniJet is designed for abrasive waterjet cutting applications requiring a narrower cut width and/or a more precise cut. It is ideal for making parts with intricate shapes or where minimum possible taper is desired. The MiniJet is also well-suited to cutting thin, delicate material. OMAX Corporation 21409 72nd Ave South, Kent, WA 98032 253-872-2300 tel 253-872-6190 fax 1-800-838-0353 toll-free WWW.OMAX.COM website Printed in the U.S.A © January 2007 All rights reserved. OC-0021 About OMAX OMAX is the leader in designing and manufacturing precision abrasive waterjet machining equipment. For more information on what other OMAX products and accessories can do for you, call us today. Standard Features • Narrow width of cut (between 0.020” and 0.025”). • Extremely coherent jet produces a cut with minimum taper. • Very low cutting forces for working on thin delicate material, but still suitable for thicker parts and traditional metals. • Interchangeable with the standard MaxJet 5, so it can be installed on any OMAX system with standard OMAX controller and with a variable pressure pump in minutes. Benefits • Cuts intricate, delicate parts with no distortion. • Cuts parts with minimum taper from top to bottom of cut to provide increased precision. • Cuts minimum-radius inside corners. • Narrow cut means less wasted material, so it is ideal for precious metals and exotics. • Low hourly operating cost due to low consumption rates of water, abrasive and power. Requirements • Variable speed pumps. Contact OMAX Customer Service for information.

Open the catalog to page 1

C o r p o r a t i o n PRECISION ABRASIVE WATERJET ACCESSORIES Accessory Specifications NOZZLE OMAX® Maxjet® 5 Nozzle Assembly MAXJET 5 The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine. The industry’s premier abrasivejet nozzle and mini-abrasivejet nozzle. Designed for use with the OMAX JetMachining® system, the MAXJET 5 features an orifice with a robust design. The resulting high-density jet is tightly defined to produce a small kerf with minimal frosting, surface striations and taper. Coupled with OMAX’s patented...

Open the catalog to page 2
