electric power unit E208-T

Product catalog summary

Specifications:
The E208/T electric torque wrench pump is designed for high-pressure applications with a two-stage axial piston pump capable of operating at BP 60 bar and HP 700 bar. It is compatible with double-acting torque wrenches and hydraulic tools due to its compact size and lightweight design. The pump is available with a motor of 1.1 kW at 2,800 rpm, supporting either 230-400V 50Hz three-phase or 230V 50Hz single-phase power.

Features:
- Remote control with a 5-meter cable for ease of use.
- Available tank sizes: 6 liters or 10 liters.
- Timer function to prevent oil overheating and reduce energy consumption.
- Protective framework for durability.
- Relief valve adjustable up to 700 bar and a dual-scale pressure gauge for precise operation.
- Factory-set return line pressure at 55 bar.

Optional Accessories:
- Heat exchanger (SC) to reduce operating temperature and remove excess heat, adding 5 kg to the pump weight.

Ordering Information:
Example: E208/T with a 6-liter tank, 230/400V-50Hz three-phase voltage, and heat exchanger is ordered as E208/T-6-400-SC.

Additional Notes:
The pump's oil flow rate at 700 bar is 0.95 liters per minute, and the maximum pressure is 700 bar. The document provides detailed ordering examples and technical specifications for different configurations of the E208/T model.

Catalog excerpts

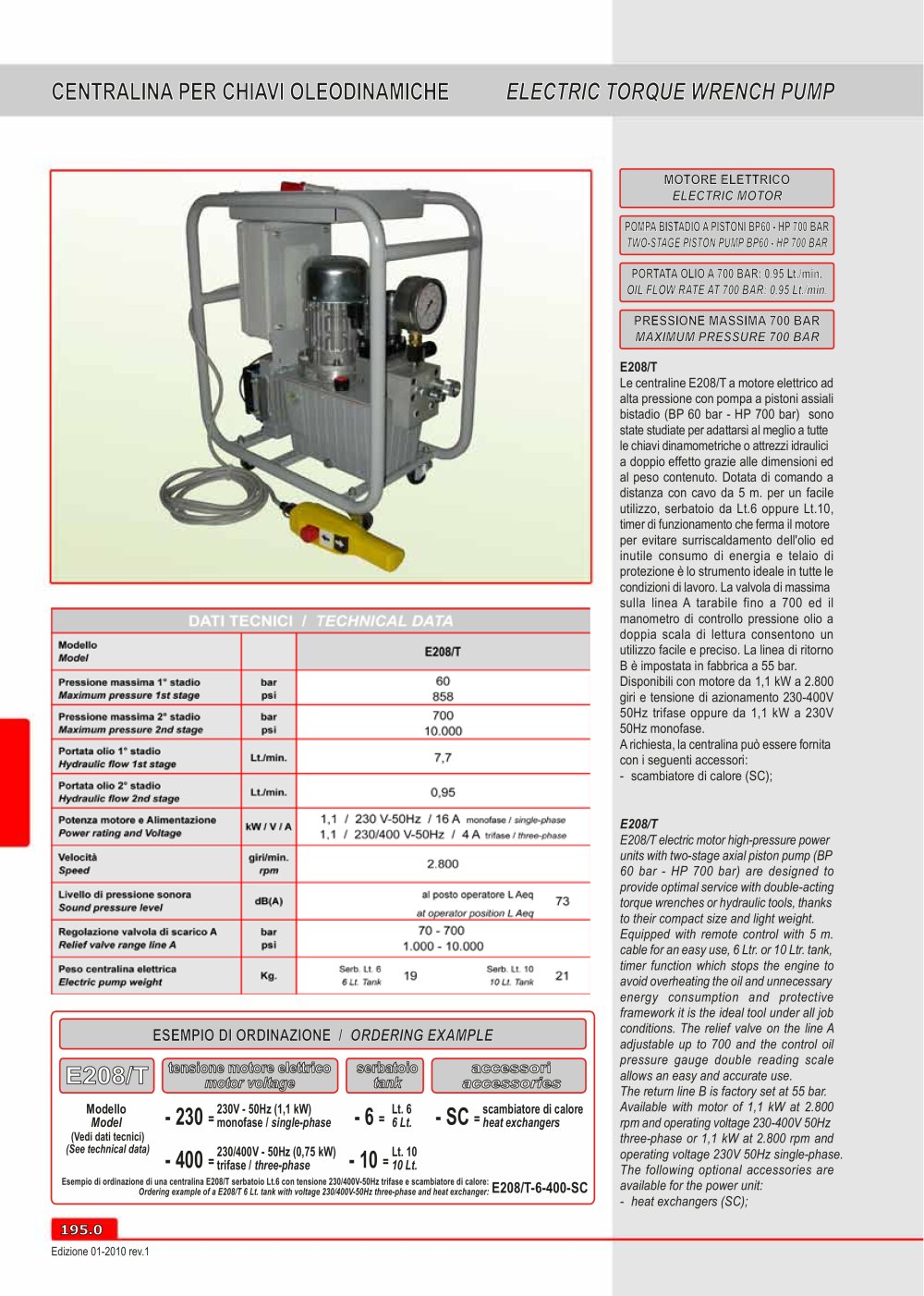

(Vedi dati tecnici) fSee technical data) fcJU =monofase I single-phase Escmpio di ordinazionc di una central™ E208/T scrbatoio Lt.6 con tcnsionc 230/400V-50HZ trifase e scambiatore di calore: pono/T c Ann cr Ordering example of a E20S/T 6 Lt. tank with voltage 230/400V-50Hz three-phase and heat exchanger: tZUo/1 -D-4UU-ol> MOTORE ELETTRICO ELECTRIC MOTOR POMPA BISTADIO A PISTONI BP60 - HP 700 BAR TWO-STAGE PISTON PUMP BP60 ■ HP 700 BAR OIL FLOW RATE AT 700 BAR: 0,95 Lt./min, Le centraline E208/T a motore elettrico ad alta pressione con pompa a pistoni assiali state studiate per adattarsi al meglio a tutte le chiavi dinamometriche o attrezzi idraulici a doppio effetto grazie alle dimensioni ed al peso contenuto. Dotata di comando a distanza con cavo da 5 m. per un facile utilizzo, serbatoio da Lt.6 oppure Lt. 10, timer di funzionamento che ferma il motore per evitare surriscaldamento dell'olio ed inutile consumo di energia e telaio di protezione e lo strumento ideale in tutte le condizioni di lavoro. La valvola di massima sulla linea A tarabile fino a 700 ed il manometro di controllo pressione olio a doppia scala di lettura consentono un utilizzo facile e preciso. La linea di ritorno giri e tensione di azionamento 230-400V A richiesta, la centralina puo essere fornita E208/T electric motor high-pressure power units with two-stage axial piston pump (BP provide optimal service with double-acting torque wrenches or hydraulic tools, thanks to their compact size and light weight. Equipped with remote control with 5 m. cable for an easy use, 6 Ltr. or 10 Ltr. tank, timer function which stops the engine to avoid overheating the oil and unnecessary energy consumption and protective framework it is the ideal tool under all job conditions. The relief valve on the line A pressure gauge double reading scale allows an easy and accurate use. The return line B is factory set at 55 bar. Available with motor of 1,1 kW at 2.800 operating voltage 230V 50Hz single-phase. The following optional accessories are available for the power unit:

Open the catalog to page 1

E208/T ELECTRIC PUMP WITHOUT E208/T ELECTRIC PUMP WITH esercizio ed elimina il calore. - Peso da aggiungere alia temperature and remove s heat. - Heat exchanger adds Kg. 5 to pump weight. E208/T SENZA SCAMBIATORE Dl CALORE / E208/T WITHOUT HEAT-EXCHANGER E208/T-SC CON SCAMBIATORE Dl CALORE / E208/T-SC WITH HEAT-EXCHANGER
