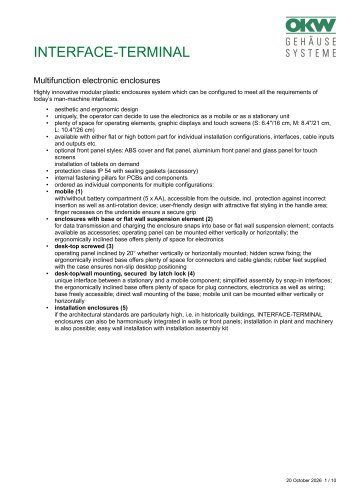

INTERFACE-TERMINALMultifunction electronic enclosures Highly innovative modular plastic enclosures system which can be configured to meet all the requirements of today’s man-machine interfaces. • aesthetic and ergonomic design • uniquely, the operator can decide to use the electronics as a mobile or as a stationary unit • plenty of space for operating elements, graphic displays and touch screens (S: 6.4716 cm, M: 8.4721 cm, L: 10.4726 cm) • available with either flat or high bottom part for individual installation configurations, interfaces, cable inputs and outputs etc. • optional front panel styles: ABS cover and flat panel, aluminium front panel and glass panel for touch screens installation of tablets on demand • protection class IP 54 with sealing gaskets (accessory) • internal fastening pillars for PCBs and components • ordered as individual components for multiple configurations: with/without battery compartment (5 x AA), accessible from the outside, incl. protection against incorrect insertion as well as anti-rotation device; user-friendly design with attractive flat styling in the handle area; finger recesses on the underside ensure a secure grip • enclosures with base or flat wall suspension element (2) for data transmission and charging the enclosure snaps into base or flat wall suspension element; contacts available as accessories; operating panel can be mounted either vertically or horizontally; the ergonomically inclined base offers plenty of space for electronics operating panel inclined by 20° whether vertically or horizontally mounted; hidden screw fixing; the ergonomically inclined base offers plenty of space for connectors and cable glands; rubber feet supplied with the case ensures non-slip desktop positioning • desk-top/wall mounting, secured by latch lock (4) unique interface between a stationary and a mobile component; simplified assembly by snap-in interfaces; the ergonomically inclined base offers plenty of space for plug connectors, electronics as well as wiring; base freely accessible; direct wall mounting of the base; mobile unit can be mounted either vertically or horizontally if the architectural standards are particularly high, i.e. in historically buildings, INTERFACE-TERMINAL enclosures can also be harmoniously integrated in walls or front panels; installation in plant and machinery is also possible; easy wall installation with installation assembly kit

Applications and Examples Unique variety of applications: handheld – desk-top – wall mounted – installation. Peripheral and interface equipment, office applications, communications technology, safety engineering, biometrics, medical and laboratory technology, health care, IoT/IIoT, gateways, automation, measuring/regulating/controlling, etc. Airspace surveillance radar Device for bioelectrical patient analysis Process control for plant Management Smart Home Console Terminal for personnel time recording Wireless data logger Self-monitoring emergency call system

INTERFACE-TERMINAL Customising Options What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components. Customising options for Interface-Terminal Special material Installation / Assembly of accessories Laser marking Decor foils Select Versions B4042707 Bottom part S flat, version I ABS (UL 94 HB) off-white RAL 9002 190x135x24.5mm IP 54 opt. B4042717 Bottom part S flat, version II ABS (UL 94 HB) off-white RAL 9002 190x135x24.5mm IP 54 opt. B4042757 Bottom part S high, version I ABS (UL...

B4044707 Bottom part M flat, version I ABS (UL 94 HB) off-white RAL 9002 225x165x25.5mm IP 54 opt. B4044717 Bottom part M flat, version II ABS (UL 94 HB) off-white RAL 9002 225x165x25.5mm IP 54 opt. B4044757 Bottom part M high, version I ABS (UL 94 HB) off-white RAL 9002 225x165x35.5mm IP 54 opt. B4044767 Bottom part M high, version II ABS (UL 94 HB) off-white RAL 9002 225x165x35.5mm IP 54 opt. B4044827 Base M - desk-top ABS (UL 94 HB) off-white RAL 9002 153x153x63mm B4044837 Base M - charging station, case deposit mobile ABS (UL 94 HB) off-white RAL 9002 153x153x70mm B4044847 Base M - desk-top/wall...

B4142047 Battery compartment and lid S, 5 x AA ABS (UL 94 HB) off-white RAL 9002 B4142106 Front panel S Aluminium matt anodised 186.5x131.5x2mm B4142107 Front panel S ABS (UL 94 HB) off-white RAL 9002 190.6x135.6x14.5mm B4142167 Bottom panel with handle recess S ABS (UL 94 HB) off-white RAL 9002 B4142203 Glass panel S Glass clear 190.6x135.6x16.7mm B4142247 Wall suspension element S ABS (UL 94 HB) off-white RAL 9002 B4142257 Bottom panel with snap-in strips S ABS (UL 94 HB) off-white RAL 9002 B4142587 Installation assembly kit S, flat ABS (UL 94 HB) off-white RAL 9002 234x185mm B4142597 Installation...

B4144587 Installation assembly kit M, flat ABS (UL 94 HB) off-white RAL 9002 272x218mm B4144597 Installation assembly kit M, high ABS (UL 94 HB) off-white RAL 9002 272x218mm B4146047 Battery compartment and lid L, 5 x AA ABS (UL 94 HB) off-white RAL 9002 B4146106 Front panel L Aluminium matt anodised 271.5x191.5x2mm B4146107 Front panel L ABS (UL 94 HB) off-white RAL 9002 275.6x195.6x15.5mm B4146167 Bottom panel with handle recess L ABS (UL 94 HB) off-white RAL 9002 B4146203 Glass panel L Glass clear 275.6x195.6x17.7mm B4146247 Wall suspension element L ABS (UL 94 HB) off-white RAL 9002 B4146257...

INTERFACE-TERMINAL System components to complete B4042827 Base S - desk-top ABS (UL 94 HB) off-white RAL 9002 123x123x53mm B4042837 Base S - charging station, case deposit mobile ABS (UL 94 HB) off-white RAL 9002 123x123x60mm B4042847 Base S - desk-top/wall ABS (UL 94 HB) off-white RAL 9002 123x123x53mm B4044827 Base M - desk-top ABS (UL 94 HB) off-white RAL 9002 153x153x63mm B4044837 Base M - charging station, case deposit mobile ABS (UL 94 HB) off-white RAL 9002 153x153x70mm B4044847 Base M - desk-top/wall ABS (UL 94 HB) off-white RAL 9002 153x153x63mm B4046827 Base L - desk-top ABS (UL 94...
