Wheels machines

Product catalog summary
Overview: The document provides specifications and features of various models of wheel lathes, focusing on their capabilities and suitability for different manufacturing processes.
2-Axis Wheel Lathe:
  • Key Features: Small footprint, fast load advancing head, fast turret index, excellent chip handling, robot-friendly.
  • Models: LAW-V24 and LAW-F.
  • LAW-V24: 2 Saddle, Max Wheel: 24.5", Spindle: 75/60 hp 3,000 min-1 (optional 87 hp), NC Servo Turret: V6+V6.
  • LAW-F: 1 Saddle, Max Wheel: 18", Spindle: 75/60 hp 3,000 min-1 (optional 87 hp), NC Servo Turret: V12.
4-Axis Horizontal Wheel Lathe:
  • Key Features: Fast, powerful spindle, super finish available, line process friendly, over 2,500 in production, robot-friendly.
4-Axis Vertical Wheel Lathe:
  • Key Features: Stable vertical chucking, large wheel capacity up to 24.5”, short cycle time with 4-axis machining, line process friendly.
  • Models: LAW-2S, LAW-F-2SF, LAW-2S-SF.
  • LAW-2S: 2 Saddle, Max Wheel: 20", Spindle: 75/60 hp 3,000 min-1 (optional 87 hp), NC Servo Turret: V6+V4.
  • LAW-F-2SF: 1 Saddle, Max Wheel: 18", Integral Motor Spindle: 50/40 hp 3,000 min-1, NC Servo Turret: V12.
  • LAW-2S-SF: 2 Saddle, Max Wheel: 20", Integral Motor Spindle: 75/60 hp 3,000 min-1, NC Servo Turret: V6 + V4.
See more

Catalog excerpts

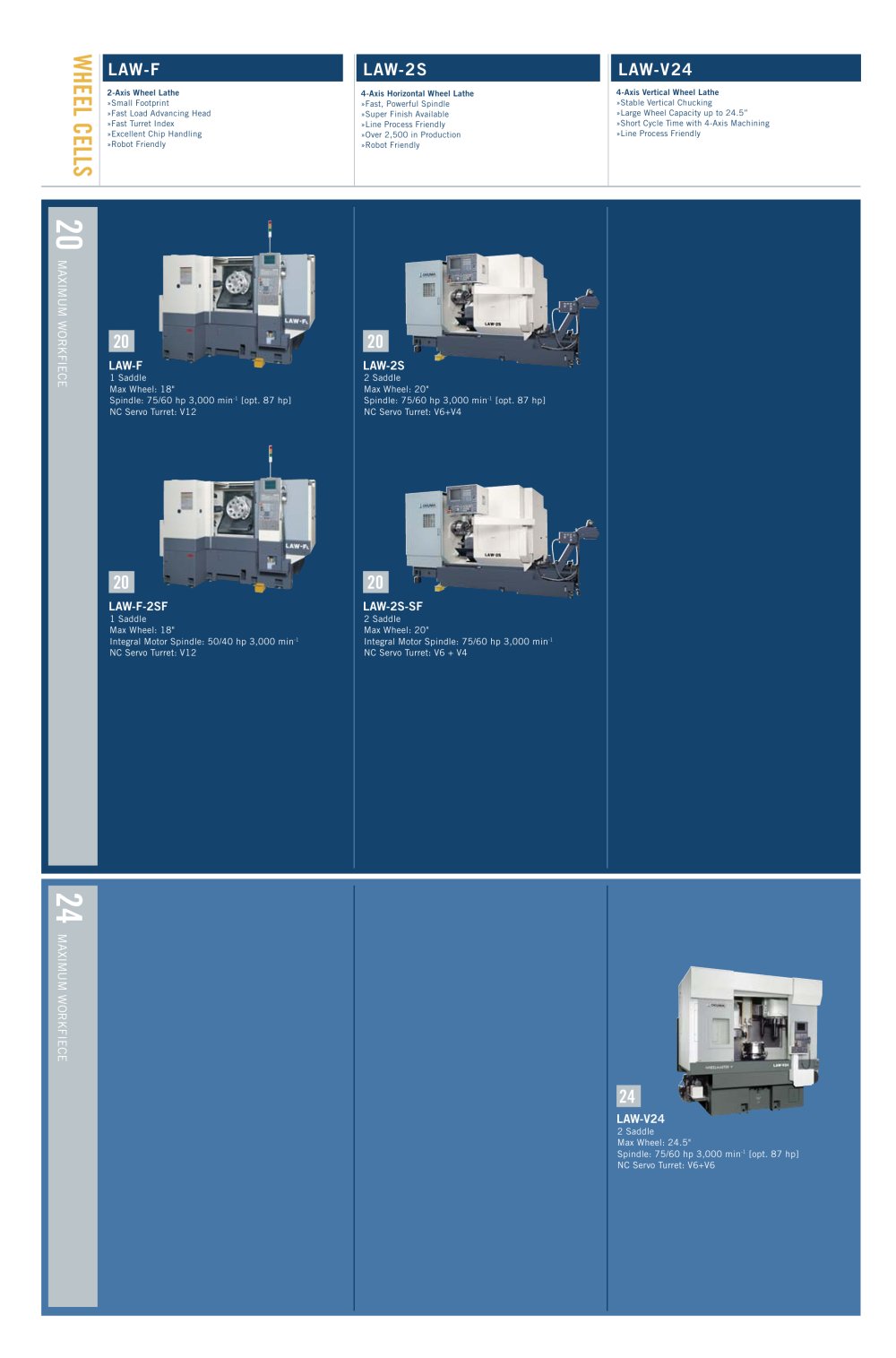

Wheels machines-1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial Black", sans-serif; } .font1 { font:8.00pt "Arial Black", sans-serif; } .font2 { font:11.00pt "Arial Black", sans-serif; } .font3 { font:13.00pt "Arial Black", sans-serif; } .font4 { font:47.00pt "Arial Black", sans-serif; } .font5 { font:67.00pt "Courier New", monospace; } LAW-F 1 LAW-2S 1LAW-V24 | EEL CEI 2 AjJi WW Ult* ■Sffu 1 f » klT >F«t le»: Adwxr-e HhI TiW Htti tDutftrt Ch^ Uni! -v 4-**i Hortara W» Ulh> ■ 3ix<w 1 0*2.500 r ProteDon »l jf g* *w c«p«crrr ?* 5" ՕStwrt Cy:h tm ut* 4aifc M*r*n oB-■in PkK» _ law-v24 7 Stddte Mu ffhatli 24. V SeMtti / V00 hp 3.000 «in ' topt. 7 hp MCSvH>Tvrr«bV6iV6

 Open the catalog to page 1
