Product catalog summary

Overview: The document provides detailed specifications and features of various vertical machining centers, including 3-axis and 5-axis models, under different series such as MU, MF, MA, MB, and MILLAC. These machines are designed for high-speed, high-accuracy machining with a broad scope of applications and options for customization.

Key Specifications:

3-Axis Vertical Machining Centers: These models feature a ram saddle feed and twin column structure for thermal stability and efficient floor space utilization. They offer multiple spindle options and are suitable for a wide range of applications.
5-Axis Vertical Machining Centers: Equipped with A and C axis trunnions, these models provide high cross specifications and include advanced features like NURBS Type ‘A’ and Abso-Scales for XYZ axes.
Heavy Vertical Machining Centers: Designed for flagship production technology, these centers include combination cooled guideways and a broad retro-fit program.

Model Specifics:

MC-V3016: X: 30.00 in., Y: 16.14 in., Z: 17.72 in., NT40 spindle with 8k standard speed.
MB-46V: X: 22.05 in., Y: 18.11 in., Z: 18.11 in., NT40 spindle with options up to 35k speed.
MA-550V: X: 51.18 in., Y: 22.05 in., Z: 22.05 in., NT50 spindle with options up to 25k speed.
MILLAC-1052V: X: 80.71 in., Y: 41.73 in., Z: 31.50 in., designed for large-scale machining tasks.

Features and Options:

High-speed machining capabilities with options for spindle tilt angles and high degree of freedom in motion.
Efficient workpiece access and broad option development for customization.
Thermal stability and efficient use of floor space with twin column structures.

Conclusion: The document outlines a comprehensive range of vertical machining centers with various configurations and capabilities, catering to diverse industrial needs. The emphasis is on high-speed, high-accuracy machining with extensive customization options.

Catalog excerpts

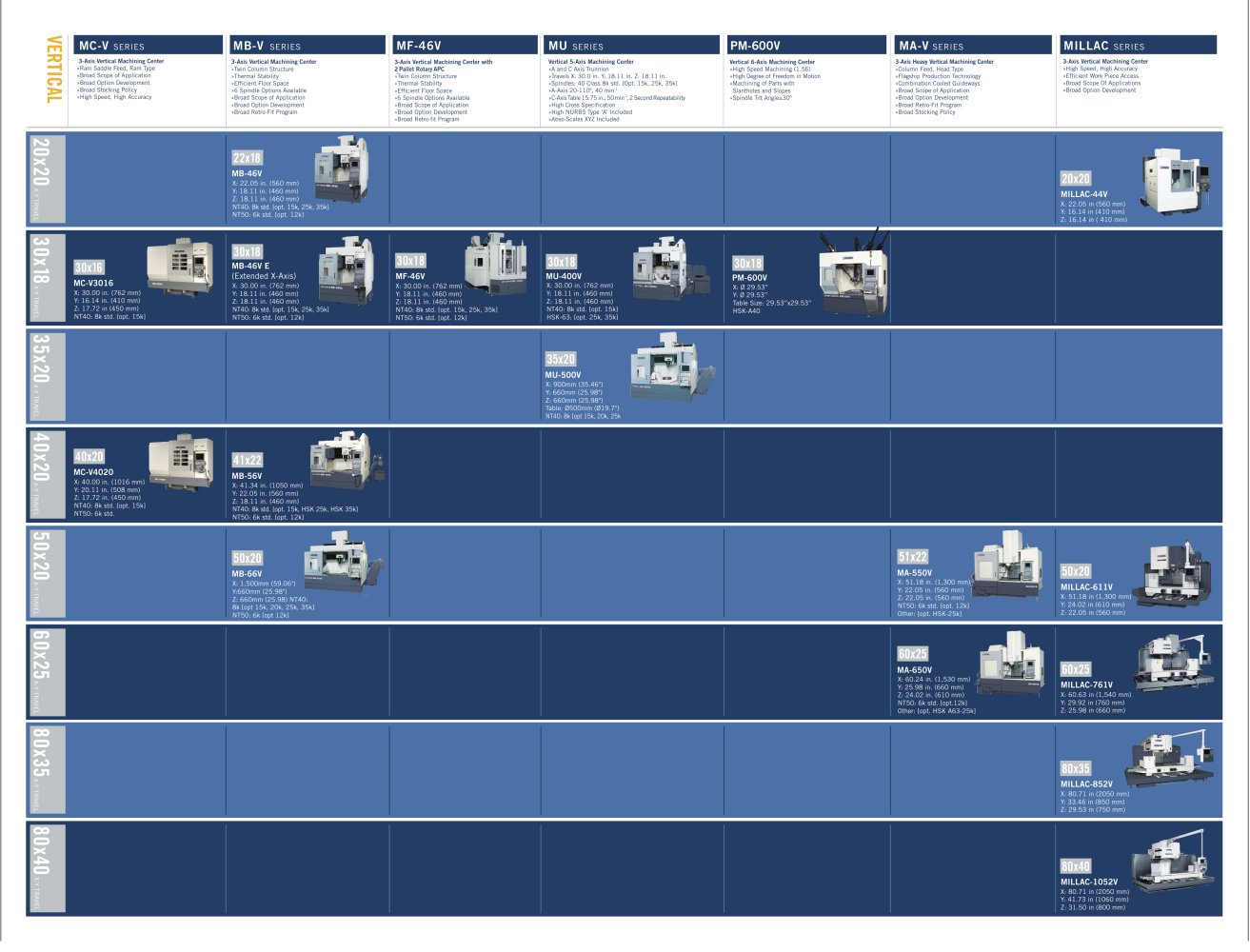

cop Cat ref_09.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Franklin Gothic Medium", sans-serif; } MILLAC sries 3-Axis Vertical Machining Center »High Speed, High Accuracy »Efficient Work Pice Access »Broad Scope Of Applications »Broad Option Development MILLAC-852V X: 80.71 in (2050 mm) Y: 33.46 in (850 mm) Z: 29.53 in (750 mm) MILLAC-1052V X: 80.71 in (2050 mm) Y: 41.73 in (1060 mm) Z: 31.50 in (800 mm)

Open the catalog to page 1
