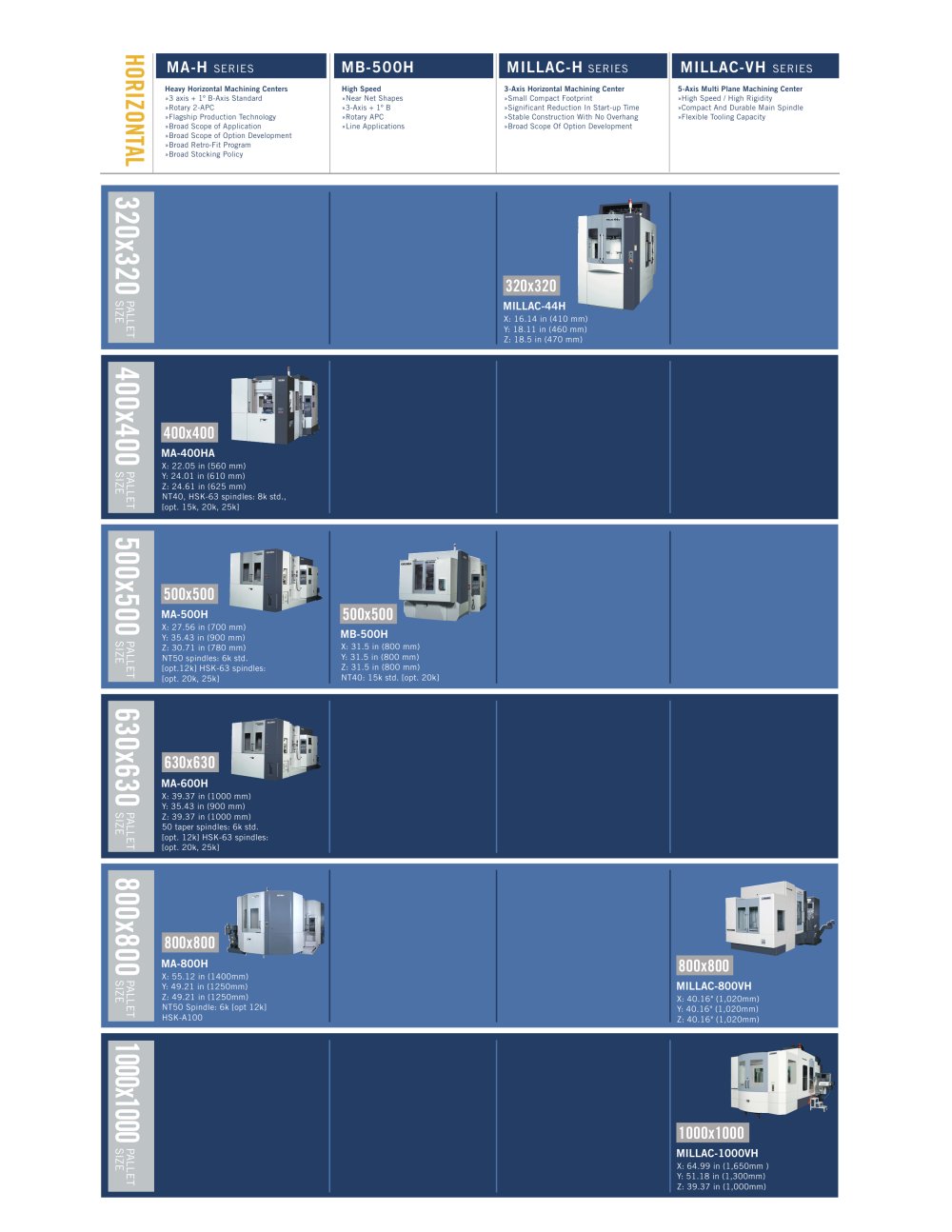

cop Cat ref_09.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:14.25pt "Arial", sans-serif; } .font4 { font:38.00pt "Arial Black", sans-serif; } .font5 { font:9.00pt "Franklin Gothic Medium", sans-serif; } .font6 { font:11.00pt "Franklin Gothic Medium", sans-serif; } .font7 { font:8.00pt "Impact", sans-serif; } .font8 { font:14.00pt "Impact", sans-serif; } .font9 { font:46.00pt "Impact", sans-serif; } .font10 { font:30.00pt "Tahoma", sans-serif; } 0 MA-H series MB-500H MILLAC-H sries MILLAC-VH sries RIZONTAL Heavy Horizontal Machining Centers »3 axis + 1° B-Axis Standard »Rotary 2-APC »Flagship Production Technology »Broad Scope of Application »Broad Scope of Option Development »Broad Retro-Fit Program »Broad Stocking Policy High Speed »Near Net Shapes »3-Axis + 1° B »Rotary APC »Line Applications 3-Axis Horizontal Machining Center »Small Compact Footprint »Significant Reduction In Start-up Time »Stable Construction With No Overhang »Broad Scope Of Option Development 5-Axis Multi Plane Machining Center »High Speed / High Rigidity »Compact And Durable Main Spindle »Flexible Tooling Capacity MILLAC-44H X: 16.14 in (410 mm) Y: 18.11 in (460 mm) Z: 18.5 in (470 mm) 400x400 MA-400HA X: 22.05 in (560 mm) Y: 24.01 in (610 mm) Z: 24.61 in (625 mm) NT40, HSK-63 spindles: 8k std., [opt. 15k, 20k, 25k] 500x500 G 630x630 MA-600H X: 39.37 in (1000 mm) Y: 35.43 in (900 mm) Z: 39.37 in (1000 mm) 50 taper spindles: 6k std. [opt. 12k] HSK-63 spindles: [opt. 20k, 25k] m i II m MILLAC-800VH X: 40.16" (1,020mm) Y: 40.16" (1,020mm) Z: 40.16" (1,020mm) MILLAC-1000VH X: 64.99 in (1,650mm ) Y: 51.18 in (1,300mm) Z: 39.37 in (1,000mm)
