Product catalog summary

Overview
This document provides specifications for the GI GA/GP-T Series and GA/GP-FII Series ID Grinding machines, designed for general-purpose and high-production cylindrical grinding. The machines feature a compact footprint, large diameter wheels, and high-speed accuracy.

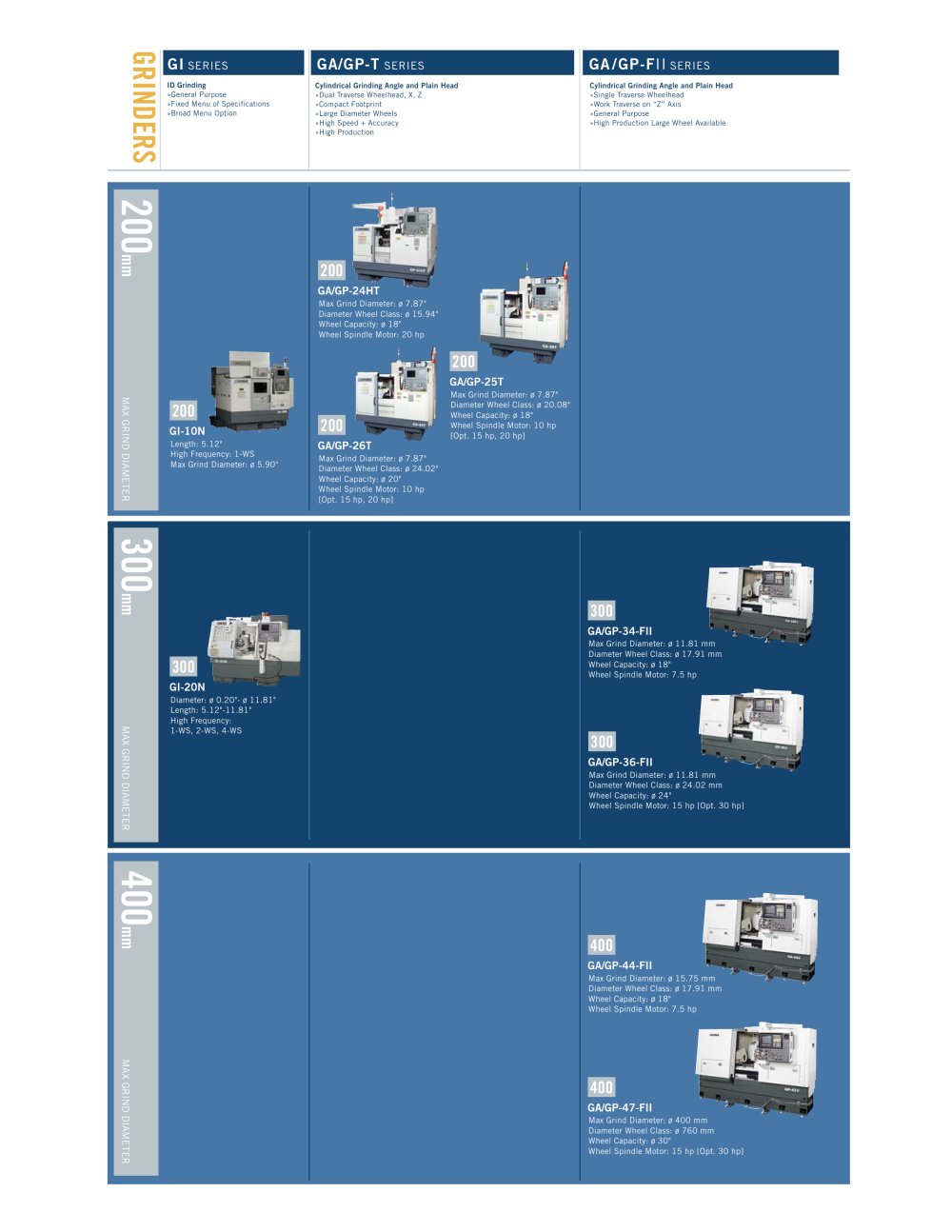

Specifications

GI-10N: Max grind diameter of ø 5.90", length of 5.12", high frequency 1-WS, with a max grind diameter of 200 mm.
GA/GP-25T: Max grind diameter of ø 7.87", wheel class diameter of ø 20.08", wheel capacity of ø 18", and a wheel spindle motor of 10 hp (optional 15 hp, 20 hp).
GA/GP-26T: Similar to GA/GP-25T but with a wheel class diameter of ø 24.02".
GA/GP-34-FII: Max grind diameter of ø 11.81 mm, wheel class diameter of ø 17.91 mm, wheel capacity of ø 18", and a wheel spindle motor of 7.5 hp.
GA/GP-44-FII: Max grind diameter of ø 15.75 mm, similar wheel specifications to GA/GP-34-FII.
GA/GP-47-FII: Max grind diameter of ø 400 mm, wheel class diameter of ø 760 mm, wheel capacity of ø 30", and a wheel spindle motor of 15 hp (optional 30 hp).
GA/GP-36-FII: Max grind diameter of ø 11.81 mm, wheel class diameter of ø 24.02", wheel capacity of ø 24", and a wheel spindle motor of 15 hp (optional 30 hp).
GI-20N: Diameter range of ø 0.20"- ø 11.81", length range of 5.12"-11.81", high frequency options of 1-WS, 2-WS, 4-WS.
GA/GP-24HT: Max grind diameter of ø 7.87", wheel class diameter of ø 15.94", wheel capacity of ø 18", and a wheel spindle motor of 20 hp.

Key Features

Dual and single traverse wheelhead options.
Work traverse on the "Z" axis for certain models.
High production capabilities with large wheel availability.

Catalog excerpts

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.40pt "Arial Black", sans-serif; } .font1 { font:6.00pt "Arial Black", sans-serif; } .font2 { font:7.00pt "Arial Black", sans-serif; } .font3 { font:9.00pt "Arial Black", sans-serif; } .font4 { font:11.00pt "Arial Black", sans-serif; } .font5 { font:13.00pt "Arial Black", sans-serif; } .font6 { font:14.00pt "Franklin Gothic Medium", sans-serif; } Gl SERIES I GA/GP-T SERIES GA/GP-FII SERIES DOndl* ■ Urxn P_rp:« M Cfl r^l r« Aa|W irri PHP H : ^ i * *- f . r i ^ i r ՕH/- PvriLrt«i CylinlrtUJ Cnnlkrc Anjfc «m FUn Hud GA/GP HA Grtftd OAmcttr « i : i mrn Ovntlqr Ahnl Clkn * 17.91 nu V*«* S*>ndte Moto: 7.5 hp GMiP-36-FII ^ MmCmiI DiifflCtB: * lift! «va DUmeter Wfted Cte 24.02 mm «Mt Captciry: ■ Whoei Spirdk Metori 15 hp ՏOpL 30 hpl
