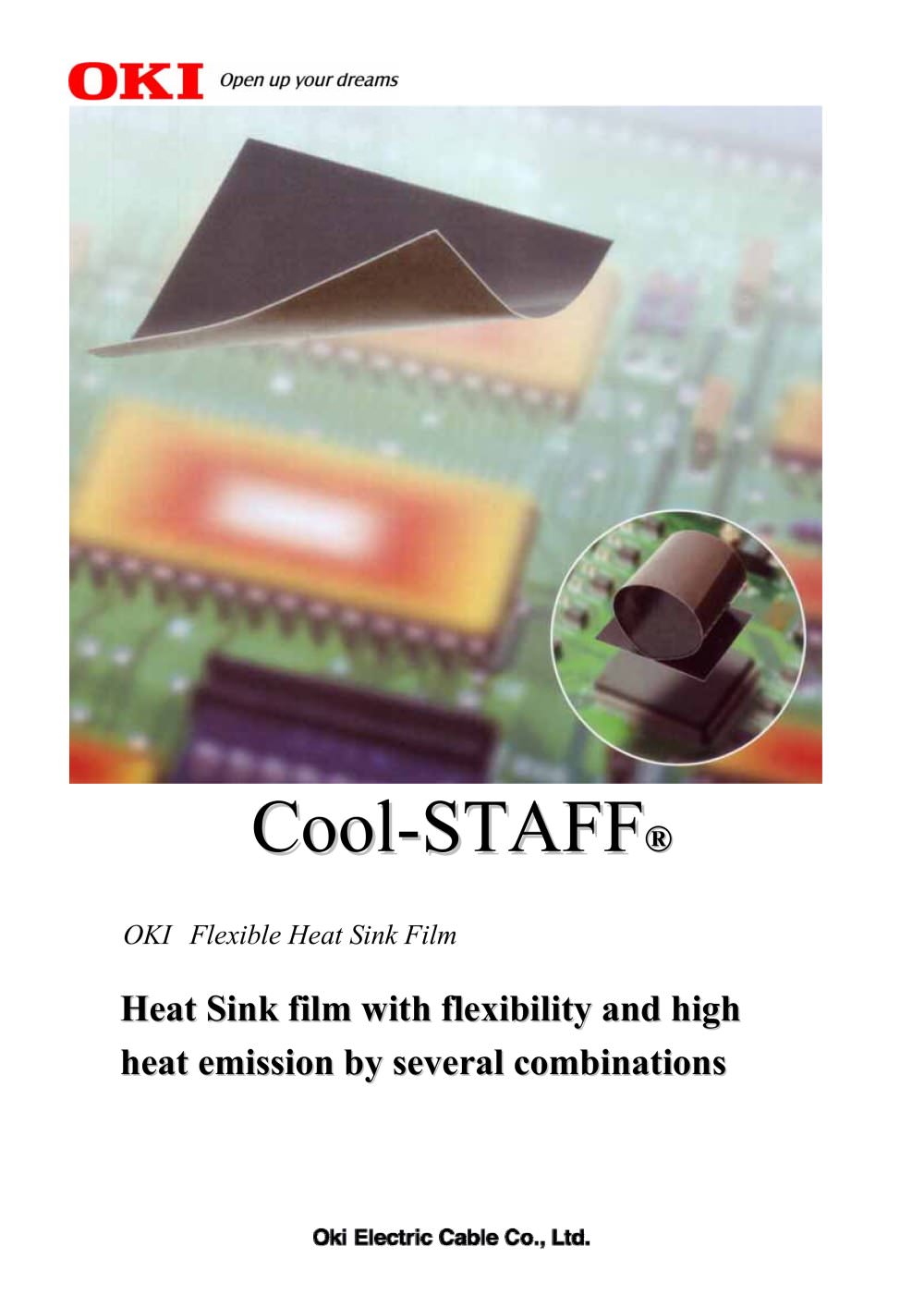

Cool-STAFF® Heat Sink film with flexibility and high heat emission by several combinations OKI Flexible Heat Sink Film

Features Construction and mechanism œHigh efficiency of heat emission by combination of heat conductionC heat radiation and heat convection œThin and easy formation by seizers and stamping die œRoHS compliant and No siloxane gas œEasy mounting and simple construction Line Up Mechanism Heat emission route 1 Copper Heat emission route 2 Heat emission sheet ‚P‚R‚OƒÊm Heat emission sheet Copper Polyimide Tape heat source Heat emission route 2 Heat emission route 1 Heat emission route 3 convection convection Heat emission route 3 Sheet Type Tube Type ¦ 1.Custom design size also acceptable upon...

Usage Example Heat emission effectiveness of Cool Staff Conduction Radiation Convection Tube type (Normal version) Sheet type (Normal version) Sheet type (Wing version) Heat conduction to frame Heat radiation by far infrared ray Heat conduction by convection Heat source Heat sink 20X20X11mm Normal type 30X30mm Wing type 30X45mm Normal type 30X130mm Infinity type 30X170mm Sheet type Tube type OKI Product Hear source temp Heat Source Airtight Frame Power ‚PW TA 25Ž Condition No wind Frame Size 100x‚P‚O‚O‚˜‚P‚O‚O‚‚ Frame Material Plastic

Normal Wing Normal Infinity Thickness(approx.) 0.13mm 0.13mm 0.13mm 0.13mm 20mmSQ 20mmSQ 20mmSQ(Gap 5-15mm) 30mmSQ(Gap 10-15mm) 30mmSQ 30mmSQ 20mmSQ(Gap 15-30mm) 30mmSQ(Gap 15-20mm) 40mmSQ 40mmSQ 30mmSQ(Gap 5-15mm) 30mmSQ(Gap 20-25mm) 50mmSQ 50mmSQ 30mmSQ(Gap 15-30mm) 40mmSQ(Gap 5-15mm) 40mmSQ(Gap 15-30mm) 50mmSQ(Gap 5-15mm) 50mmSQ(Gap 15-30mm) Insulation resistance Heat resistance Sheet Type Tube Type Typical Size 240mm X 250mm 120Ž 1X10@Ù or more Main Products Machine Vision high speed interface cable, Flexible PC Boards ,Cables for robots and movable equipment, OKIFLEX® flat cable, Hard...
