Product catalog summary

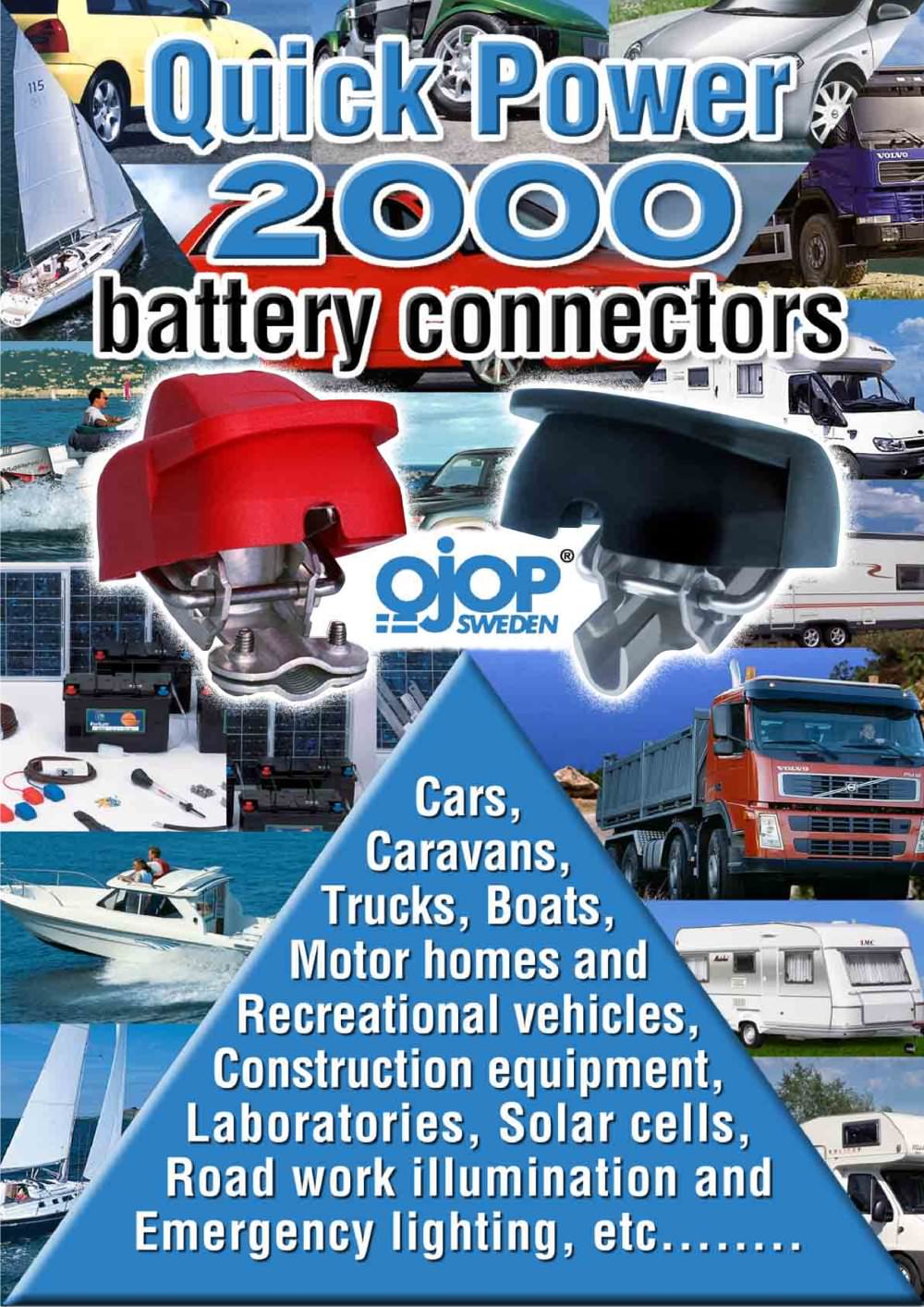

Overview: The document describes the Quick Power 2000 connectors, designed for easy and safe battery disconnection and reconnection without tools. These connectors are suitable for various vehicles and equipment, providing safety and convenience.
Specifications: The connectors are made from corrosion-resistant materials including stainless steel 316, polypropylene, and copper alloy. They fit all SAE and DIN standard batteries and have a resistance of approximately 0.12 µΩ at 10 A, with a maximum capacity of 800 amps. The cable cross-section is approximately 35 mm², and they accommodate American wire gauge no. 1–2.
Product Benefits: Quick Power 2000 connectors allow for quick battery disconnection, preventing discharge and eliminating electric shock risks. They are particularly useful in emergencies to prevent fires by disconnecting the vehicle's electrical system. The connectors are also corrosion-resistant and suitable for tight spaces.
Applications: These connectors can be used in cars, trucks, boats, caravans, motor homes, recreational vehicles, construction equipment, laboratories, solar cells, road work illumination, and emergency lighting.
Marine Type: The Quick Power Marine connectors are designed for batteries with bolt-wing-nuts, common in American boat batteries. They are made from tin-plated copper-zinc alloy, stainless steel 316, and polypropylene, fitting both marine and traditional batteries.
Additional Features: The connectors can serve as master switches and accommodate jump leads. They are protected by patents in most countries.
Product Variants: The document lists various consumer and OEM types of connectors, both bolted and crimp fitting, with options for tin-plating.
Contact Information: Ossvald Jonsson & CO. AB, located in Eskilstuna, Sweden, provides contact details for further inquiries.
See more

Catalog excerpts

Battery connectors-2

The battery can be easily disconnected and moved to another car, leisure vehicle, boat, etc., or taken indoors in cold weather.No tools needed, as is the case when connecting or disconnectingtraditional terminals.With Quick Power 2000 connectors the battery can be disconnectedin afew seconds, thus preventing discharging.The plastic covers eliminate the risk of electric shock entirely. In case of an accident, the vehicles electrical system should be disconnected immediately to prevent a fire. Quick Power 2000 connectors ensure extra safety. If installed from the outset, transport hazards are eliminatedand...

 Open the catalog to page 2
Battery connectors-3

The operation, design andname of this product are protected by patents in most countries. Tin-plated 12 microns copper-zinc alloy, stainlesssteel 316 and polypropylene. > 45 1 Fit all SAE and DIN marine and car batteries, deep-cycle batteries. > Approx. 0.12 Ե at 10 A. Maximum 800 amp.Cable cross-section approx. 35 mm > 2 ,bolted connector.American wire gauge no. 12. Bolt connection Released position Position for jump leads 67 2 Crimp-on connection Optional extra connector > 5/8 ֔Closed position > 25/32 35,51 13/32Ԕ51 268 2 size="-3">

 Open the catalog to page 3
Battery connectors-4

Per cartonPer cartonPosNegPos+NegRedBluepcskilos Red Bluepcskilos STARTER BATTERY CONNECTORS > Please note that black negative has special article numbers. CONSUMER TYPE, BOLTED, 451004511040035 450005010 > RAW BRASS FINISH, NOT TIN-PLATEDEnglish CONSUMER TYPE, BOLTED AND 45200452104003545069 *409 > TIN-PLATED 45065 **45070 *** > OEM TYPE, CRIMP FITTING 15֖2545244 +4524840034 > AND TIN-PLATED 204045220 +452304003540֖7045260 +4527040035 * > English blister card MARINE-RV BATTERY CONNECTORS ** > German blister card *** > French blister card CONSUMER TYPE, BOLTED AND 45455454603003045415 308 > TIN-PLATED...

 Open the catalog to page 4
