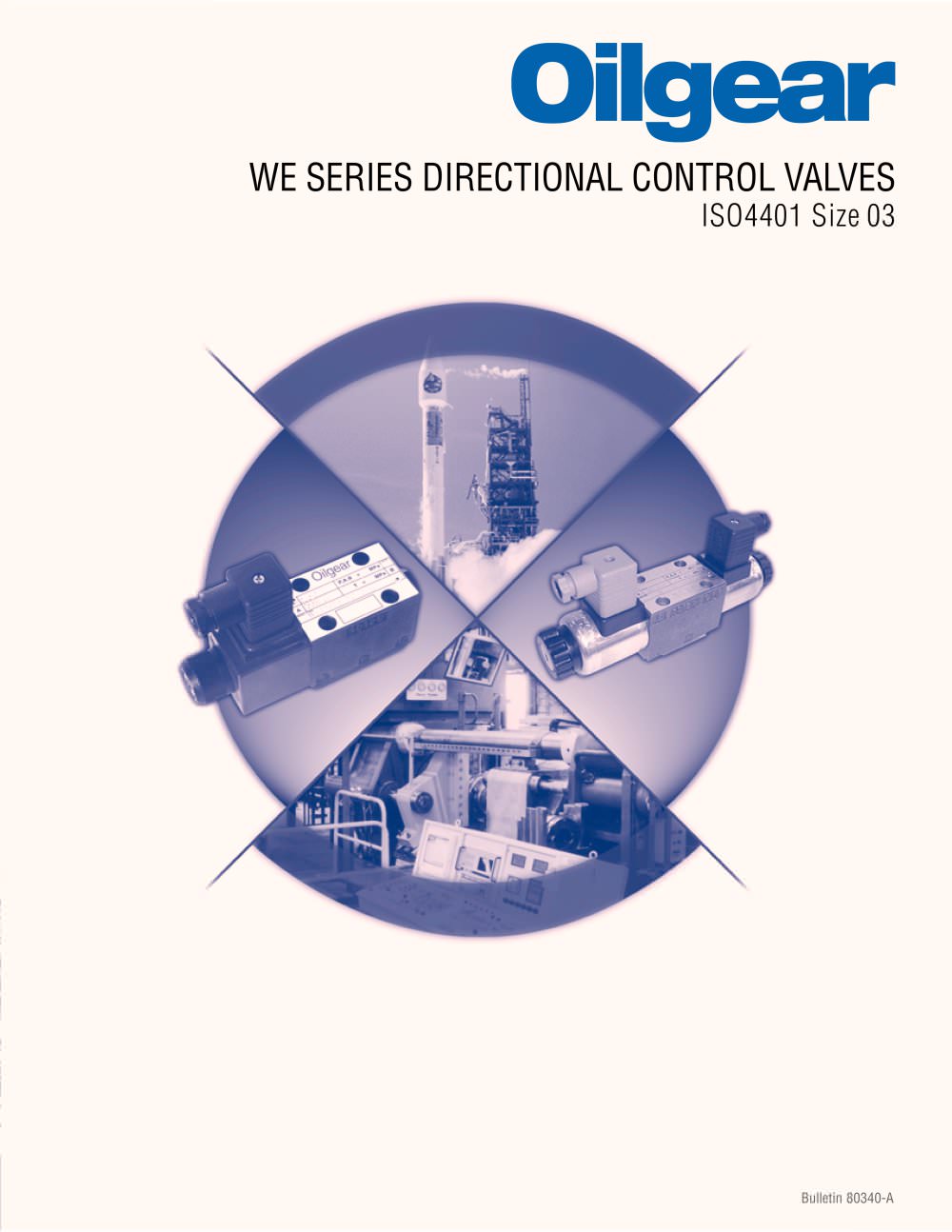

WE SERIES DIRECTIONAL CONTROL VALVES
16Pages

WE SERIES DIRECTIONAL CONTROL VALVES

Operating Limits Features and General Description Performance Data Standard Models Ordering Information Spare Parts

2 or 3 switching positions (4/2-, 4/3- valves) Standard manual override Removable coils for easy replacement or conversion Direct operated, solenoid controlled directional spool valve Three chamber design for high performance General Description Oilgear’s WE P06E series are directional control valves used to stop, start and control the direction of hydraulic fluid flow. The WE series comes in both 4-way, 3 position and 4-way, 2 position configurations. The three position configurations contain a central or neutral position. The WE series consists of a body (1), one or two solenoids (2), a...

Specifications General Data Directional Control Valve Direct Operated Model Number Refer to Ordering Code Sliding Spool Valve Type of Port Connections Mounting Position Mounting Size Rated Flow Cyclic Duration Factor Enclosure Type Solenoid Design Refer to Ordering Code Power Rating Coil Temperature Ambient Temperature Range Hydraulic Data Operating Pressure A, B, P and T Fluid Temperature Viscosity Filtration Electric Data Response Times

Spool Symbol Operating Limits

Performance Data A: Symbol 07 in center position P➔A The curves refer to applications with symmetrical flow. In the case of asymmetric flow, reduced values may result. If only one direction of flow is required, for example, when a 4-way valve has one port plugged, or unbalanced flows from large rod cylinders, the permissible flow in critical cases can be considerably lower.

4/3 Directional Valve, 2 Solenoids, Standard Spool Spool Position Spool Code Part Number

4/3 Directional Valve, 2 Solenoids, Standard Spool Spool Symbol Spool Code Spool Position Part Number 4/2 Directional Valve, 1 Solenoid, Standard Spool Spool 13 A

WE42P06E – DC Solenoid Optional Electrical Connectors Refer to ordering code 2.68 (68) 2.83 (72) 4 Socket head screws M5x50 DIN912 10.9 Not included in delivery Tightening torque: 5.9 ft-lb (8 Nm) NOTES: Valve mounting bolts must be ordered separately. *For coil removal. Required surface finish of surface when mounting the valve without subplate. 0.0004/4.0 0.01/100 32

WE43P06E – DC Solenoid Optional Electrical Connectors Refer to ordering code 2.68 (68) 2.56 (65) P 4 Socket head screws M5x50 DIN912 10.9 not included in delivery Tightening torque: 5.9 ft-lb (8 Nm) NOTES: Valve mounting bolts must be ordered separately. *For coil removal (for both ends). Required surface finish of surface when mounting the valve without subplate. 0.0004/4.0 0.01/100 32

Optional Electrical Connectors Refer to ordering code P 4 Socket head screws M5x50 DIN912 10.9 not included in delivery Tightening torque: 5.9 ft-lb (8 Nm) NOTES: Valve mounting bolts must be ordered separately. *For coil removal. Required surface finish of surface when mounting the valve without the subplate. 0.0004/4.0 0.01/100 32

WE43P06E – AC Solenoid Optional Electrical Connectors Refer to ordering code 2.68 (68) 2.56 (65) 4 Socket head screws M5x50 DIN912 10.9 Not included in delivery Tightening torque: 5.9 ft-lb (8 Nm) ø4x5 Deep (not necessary) NOTES: Valve mounting bolts must be ordered separately. *For coil removal (both ends). Required surface finish of surface when mounting the valve without the subplate 0.0004/4.0 0.01/100

Valve Type W Directional Type of Control E Electrical Number of Service Ports 4 A, B, P and T ports Number of Operating Positions 2 2 position 3 3 position Mounting P Subplate Size Nominal Bore (NG) 06 NG06(D03), ISO4401 Size 03 Series Number E Series E Spool Symbol 00, 01, 03, 04, 05, 06, 07, 08, 09, 13, 14, 21, 22, 23, 24 Modification PXX Orifice in P-port in 10ths of mm (ex: P10 = orifice Ø1.0 mm) CI With position indication A-side, inductive DI With position indication B-side, inductive Other types available upon request Solenoid Design N Wet pin solenoid Solenoid Voltage* A 12 V DC B...

Spare Parts Order Number Seal Kit for WEP06E O-Ring, Viton 9.25 x 1.78 O-Ring, Viton 17, 17 x 1.78 Spring P06E – DC solenoid Solenoid 24 V DC complete Solenoid 110 V AC 50/60 Hz complete Solenoid 220 V AC 50/60 Hz complete Connector DIN 43650/ISO 4400 Plug connector DIN 43650/ISO 4400 (PG 9) Big plug connector DIN 43650/ISO 4400 without LED (PG 11) Big plug connector DIN 43650/ISO 4400 with LED and free wheeling (PG 11) Order example: O-Ring Viton 17,17 x 1.78 Pos. 2 Order number X980 – 02017 *Only with AC solenoid models O-Ring NBR 21.82x3.53 Handknob – DC solenoid Handknob – AC solenoid...

Performance Assurance Each Oilgear component manufactured is shipped with corporate commitment to stay with the installation until the unit performs as specified. experience gained since 1921 in matching fluid power systems to a tremendous range of machines and applications. Oilgear’s Performance Assurance is made possible because of the many hydraulic techniques learned over the years in supplying machinery builders and users with unique solutions to hundreds of unusual fluid power problems. Historically. Oilgear has concentrated its energies on hydraulic equipment and systems. Every...
