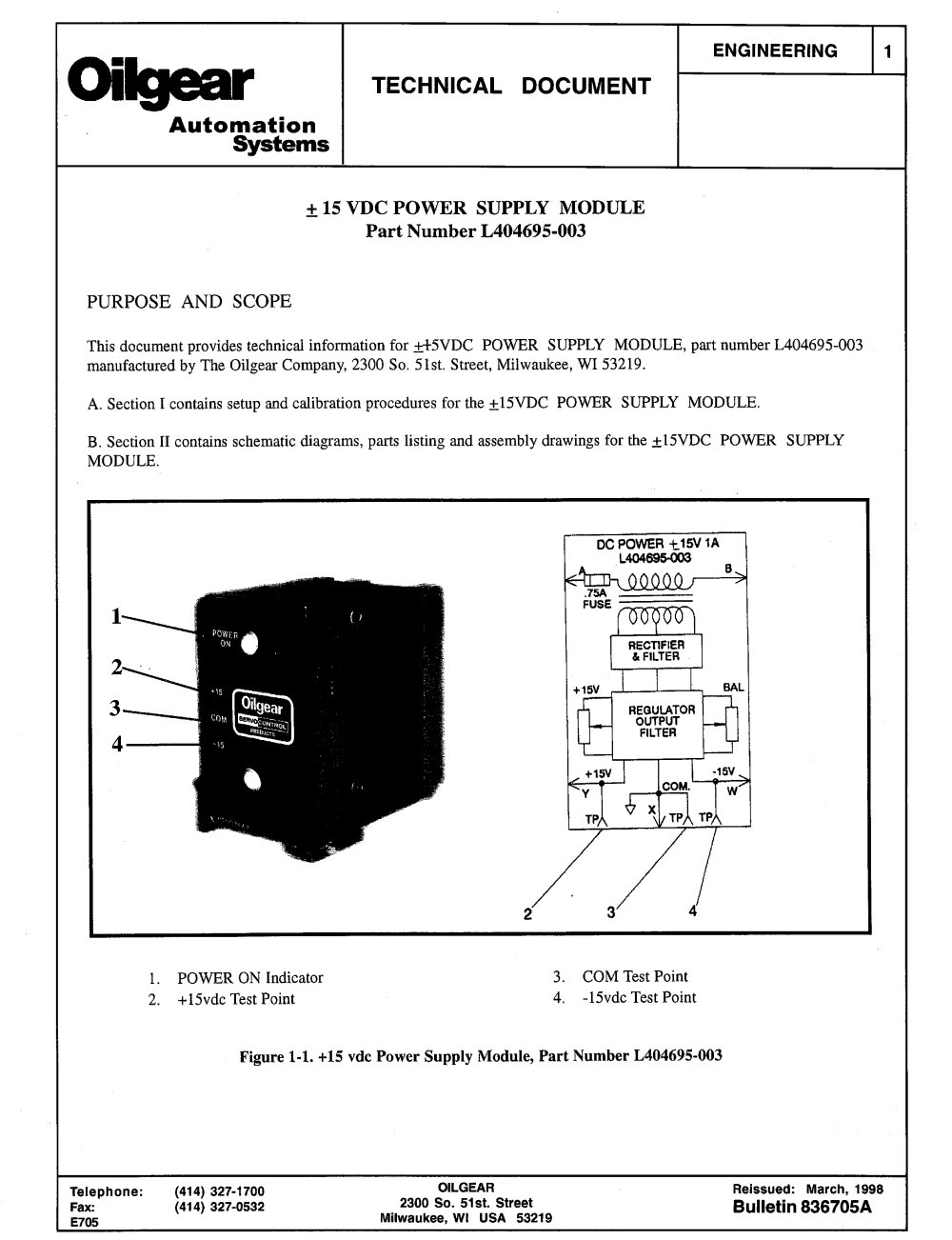

TECHNICAL DOCUMENT ± 15 VDC POWER SUPPLY MODULE This document provides technical information for ++5VDC POWER SUPPLY MODULE, part number L404695-003 manufactured by The Oilgear Company, 2300 So. 51st. Street, Milwaukee, WI 53219. A. Section I contains setup and calibration procedures for the +15VDC POWER SUPPLY MODULE. B. Section II contains schematic diagrams, parts listing and assembly drawings for the +15VDC POWER SUPPLY Figure 1-1. +15 vdc Power Supply Module, Part Number L404695-003 Telephone: (414) 327-1700 OILGEAR Reissued: March, 1998
Open the catalog to page 1TECHNICAL DOCUMENT GENERAL INFORMATION The ±15 VDC POWER SUPPLY MODULE is used for excitation of operational amplifier and command circuitry in the analog control system. The power supply is a con- stant voltage, dual polarity, tracking regulator type. Both outputs are current limited and can withstand a tempo- rary short circuit to common. The supply can operate in parallel with another power supply of the same model. The input section consists of a fused power transformer, a bridge rectifier and filter. The fuse is located on the bot- tom of printed circuit board near the card ejector....
Open the catalog to page 2TECHNICAL DOCUMENT Parts Listing 2 Cap, electrolytic, alum lOOO.uF, 35wvdc (C2-3) 1 1 Cover, Power Supply Module (E2) 4 3 Jack, horizontal test (TP1-3) 1 Label, module (front face) (E7) Rivet, grip-pop type, .alu., 125 x .125 (E13-16) Rivet, grip-pop type stl., .188 x .250 (E19-20) Rivit, grip-pop type alu., .188 x 125 (E17-18)
Open the catalog to page 3TECHNICAL DOCUMENT Reissued: March, 1998 oonn P'L®fARe Telephone: (414) 327-1700 DUIieiin OJO/UOM Milwaukee, Wl USA 53219 E705
