Direct current motors
Direct current motors
- Mounting Forms: Available in IM 2001 (B35) and IM 3001 (B5).
- Motor Protection: Models include QCCA, QCCAS with IP 23S protection and QCCH, QCCHAS with IP 54, optionally IP 55.
- Insulation Class: F class.
- Thermal Protection: Options include PTO (Klixon) and PTC.
- Noise Level: Below 85 dB(A).
- Cooling Systems: Includes IC01, IC06, IC00, and IC0641 methods.
- Operating Conditions: Suitable for ambient temperatures from -15°C to +40°C and altitudes up to 1000 meters.
- Motor Sizes: 71, 80, 100, 132, 160.
- Power Supply: Available in 1-phase and 3-phase, 400/460Vac, 50/60Hz.
- Power and Current: Power ranges from 33W to 1100W, current from 0.15A to 2.9A.
- Air Flow and Pressure: Air flow ranges from 1.8 to 15 m3/min, pressure from 240 to 800 Pa.
- Motor Sizes: 71S-M, 71L-P, 80, 100, 132, 160.
- Types and Dimensions: Dimensions range from 6x12x25 mm to 12.5x32x40 mm.
- Quantity: 2 to 8 brushes depending on motor size.
- Drive End (D.E.) and Non-Drive End (N.D.E.) Bearings: Specific codes provided for each motor size.
- Maximum Radial and Axial Loads: Detailed load capacities specified for each motor size.
- Brake Types: Rr 10 to Rr 180 depending on motor size.
- Maximum Static Torque: Ranges from 10 Nm to 160 Nm.
- Brake Inertia: Varies from 0.00011 to 0.0028 kgm².
- Power Supply: 96 Vdc for all sizes.
Catalog excerpts

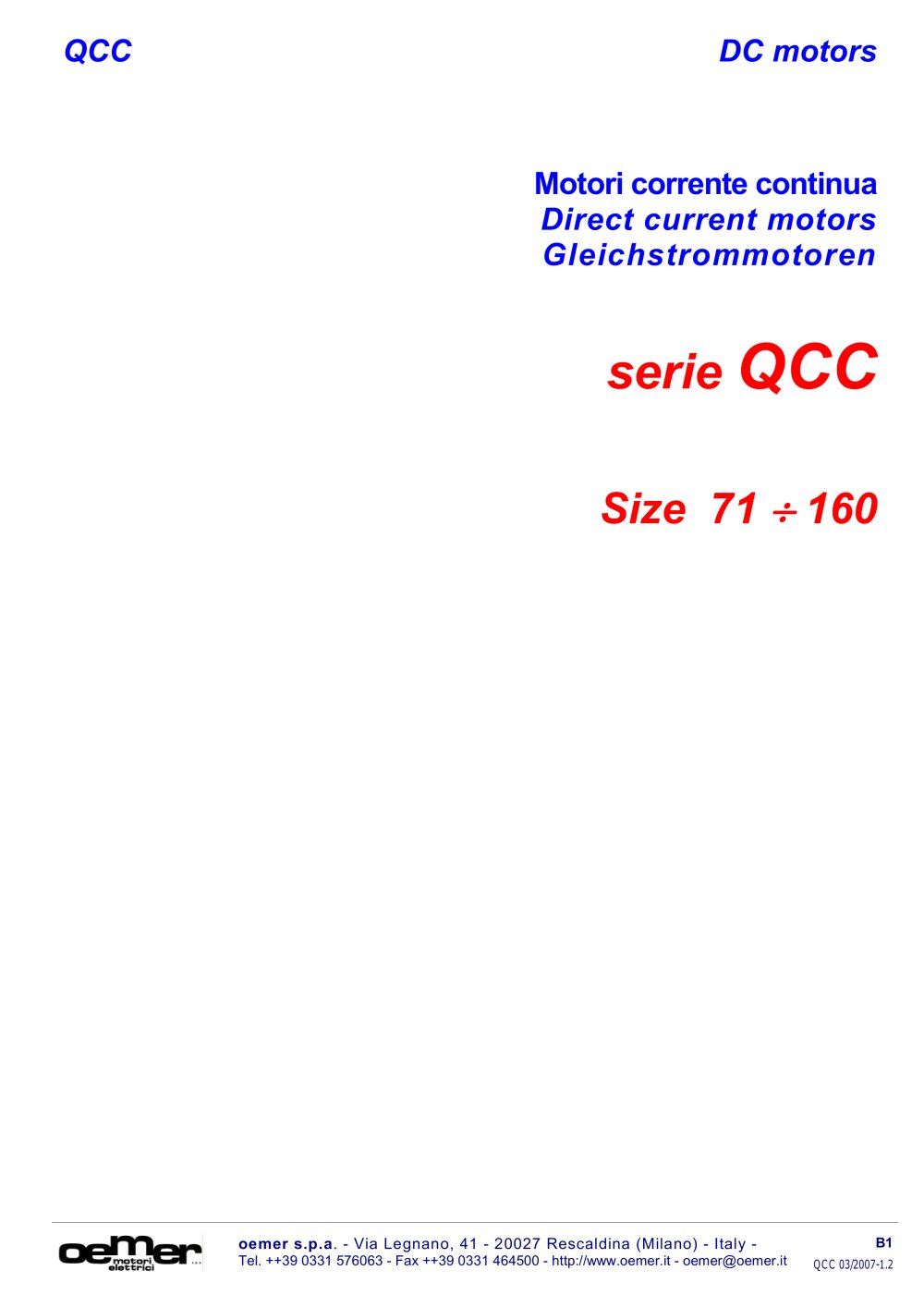

QCC DC motors Motori corrente continua Direct current motors Gleichstrommotoren > oemer s.p.a . - Via Legnano, 41 - 20027 Rescaldina (Milano) - Italy - B1 Tel. ++39 0331 576063 - Fax ++39 0331 464500 - http://www.oemer.it - [email protected] QCC 03/2007-1.2 size="-3">
Open the catalog to page 1
DATI GENERALI GENERAL DATA ALLGEMEINE DATEN Forma costruttiva Mounting Bauformen IM 2001 (B35) IM 3001 (B5) > 2) Protezione motore Motor Protection Schutzart QCCA, QCCAS IP 23S ֖ QCCH, QCCHAS IP 54 (IP 55 ) > 2) Equilibratura Balancing Auswuchten grado R R degree ֖ grad R Isolamento Insulation Isolation classe F F class ֖ F Klasse Protezione termica Thermal Protection Thermikschutz PTO (Klixon) > 2) PTC > 2) Rumore L > W NoiseL > W Ger֤uschpegel L > W L > W < 85 dB (A) Raffreddamento Cooling System Khlung QCCA IC01 QCCAS IC06 얖 QCCH IC00 - QCCHAS IC0641 Installazione Ambient Umgebungstemperatur...
Open the catalog to page 2
IP 23S IC 01 Peso Inerzia > 2 Eccitazione Weight 8,7 Kg Inertia J 0,0010 kgm Field 110- 200 -330 Vdc P 44 W K 65 ms >
Open the catalog to page 3
IP 23S IC 06 Peso Inerzia > 2 Eccitazione Weight 10,6 Kg Inertia J 0,0010 kgm Field 110- 200 -330 Vdc P 44 W K 65 ms >
Open the catalog to page 4
IP 54 IC 0641 Peso Inerzia > 2 Eccitazione Weight 10,7 Kg Inertia J 0,0010 kgm Field 110- 200 -330 Vdc P 44 W K 65 ms >
Open the catalog to page 5
IP 54 IC 00 Peso Inerzia > 2 Eccitazione Weight 11,2 Kg Inertia J 0,0015 kgm Field 110- 200 -330 Vdc P 52 W K 70 ms >
Open the catalog to page 6
IP 23S IC 06 Peso Inerzia > 2 Eccitazione Weight 20,8 Kg Inertia J 0,0042 kgm Field 110- 200 -330 Vdc P 175 W K 90 ms >
Open the catalog to page 7
IP 23S IC 06 Peso Inerzia > 2 Eccitazione Weight 20,8 Kg Inertia J 0,0042 kgm Field 110- 200 -330 Vdc P 175 W K 90 ms >
Open the catalog to page 8
IP 23S IC 06 Peso Inerzia > 2 Eccitazione Weight 20,8 Kg Inertia J 0,0042 kgm Field 110- 200 -330 Vdc P 175 W K 90 ms >
Open the catalog to page 9
IP 23S IC 06 Peso Inerzia > 2 Eccitazione Weight 47,0 Kg Inertia J 0,017 kgm Field 110- 200 -330 Vdc P 260 W K 130 ms >
Open the catalog to page 10
IP 23S IC 06 Peso Inerzia > 2 Eccitazione Weight 47,0 Kg Inertia J 0,017 kgm Field 110- 200 -330 Vdc P 280 W K 130 ms >
Open the catalog to page 11
IP 23S IC 06 Peso Inerzia > 2 Eccitazione Weight 47,0 Kg Inertia J 0,017 kgm Field 110- 200 -330 Vdc P 280 W K 130 ms >
Open the catalog to page 12
IP 23S IC 06 Peso Inerzia > 2 Eccitazione Weight 110 Kg Inertia J 0,060 kgm Field 110- 200 -330 Vdc P 450 W K 160 ms >
Open the catalog to page 13
IP 23S IC 06 Peso Inerzia > 2 Eccitazione Weight 215 Kg Inertia J 0,21 kgm Field 110- 200 -330 Vdc P 820 W K 240 ms >
Open the catalog to page 14
DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] Type B D x E b x h M N P F V 71 S 101230 71 M 121250 71 L 14114x30 5x5 270 71 P 181130 110 160 10 71 P > 1) --19x40 6x6 165 130 200 11.5 320 1) > OPTIONAL
Open the catalog to page 15
DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] Type H A B C K K > 1 D x E D > 1 x E > 1 b x h b > 1 x h > 1 M N Q P F V Z Z > 1 W W1 T R L X 132 SA 292584 132 S 132 216 43289 12 12 42x110 42x110 12x8 12x8 265 230 4 300 14 724494 524 260 340 230 93 296 70 332624 132 M 382674 132 L 160 SB 342724 160 M 160 254 492108 14 -- 48x110 42x110 14x9 12x8 300 250 5 350 18 874600 630 315 420 280 123 362 102 392774 160 L 442824 160 P > 1) OPTIONAL Su richiesta disponibile un elettroventilatore maggiorato - An incresed power electric fan is available on request - Auf Anfrage sind...
Open the catalog to page 17
DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] Type A B C D E 71 76 126 141 65 150 80 80 130 160 65 150 We reserve the right to modify at any time and without notice the data, the technical characteristics, the dimensions, the weights and the illustrations. 100 Wir behalten uns das Recht vor, ohne Vorankndigung, die Daten, technische Merkmale, Abmessungen, Gewichte und Abbildungen dieses Kataloges abzundern. La riproduzione anche parziale, del presente catalogo deve essere autorizzata per...
