A.C. 3-phase Spindle motors QcaVm

Product catalog summary
General Specifications:
The QcaVm Sincrovert® A.C. 3-phase spindle motors are designed with a mounting form of IM 2001 (B35) and offer motor protection of IP 54, with an optional upgrade to IP 55. They include R degree balancing, F class insulation, and thermal protection options such as PTO (Klixon), PTC, and PT100. The noise level is kept below 85 dB(A), and the cooling system is IC 416. These motors are suitable for ambient temperatures from -15°C to +40°C and altitudes up to 1000 meters.
Electric Fan Specifications:
The electric fan is available for motor sizes 71 to 112, with a power supply of 1-phase 230V 50/60Hz. Current and power specifications vary by motor size, starting from 0.11 A and 18 W for size 71, up to 0.3/0.38 A and 70/83 W for size 112.
Transducer and Brake Specifications:
Motors can be equipped with a standard line driver encoder or a 2-pole resolver. Holding brakes are available with varying static torque and inertia specifications, with options for higher torque upon request.
Bearings and Load Specifications:
Specifications for bearings are provided for both drive-end and non-drive-end sides, detailing maximum speeds and radial load capacities for each motor size. Roller bearing options are available on request.
Electrical Data and Performance:
Detailed electrical data is provided for various motor sizes, including duty types S1 and S6, nominal speed, power, torque, current, and maximum speed. Data is presented for different voltage levels, with notes on standard speed and voltage, and options for high-speed bearings.
Dimensions:
Overall dimensions are provided for each motor type, with specific measurements for height, width, and other critical dimensions. Notes indicate adjustments for motors with brakes and options for reduced shafts.
Exploded Diagrams:
Schematic drawings identify main motor components such as the shaft, flange, bearings, winding, stator, rotor, and terminal box. These diagrams do not include special versions or options, and the actual product may differ from the representation.
Recommended Mounting Positions:
Recommended mounting positions for various frame sizes are outlined, with specific instructions for applications involving pulleys, recommending roller bearings on the drive-end side.
Gearbox Specifications and Recommendations:
Requirements for using a hollow shaft gearbox without a flexible coupling are outlined, emphasizing the necessity of an extra-precise flange.
Support and Mounting Alternatives:
An alternative to the B35 mounting is mentioned, suggesting flexibility in installation options.
Radial Load Calculation:
A formula is provided for calculating the radial load on the motor shaft when coupling with a pulley, considering factors such as nominal power, nominal speed, pulley diameter, pulley weight, and a coefficient based on the type of belt used.
Technical Catalog Structure:
The catalog is divided into an introductory section with general motor information and specific technical sheets for each motor type.
Modification Rights and Reproduction:
OEMER reserves the right to modify technical data, dimensions, weights, and illustrations without notice. Reproduction of the catalog requires written authorization from OEMER S.p.A.
Contact Information:
OEMER S.p.A. is located in Rescaldina, Italy, with contact details provided for further inquiries.
See more

Catalog excerpts

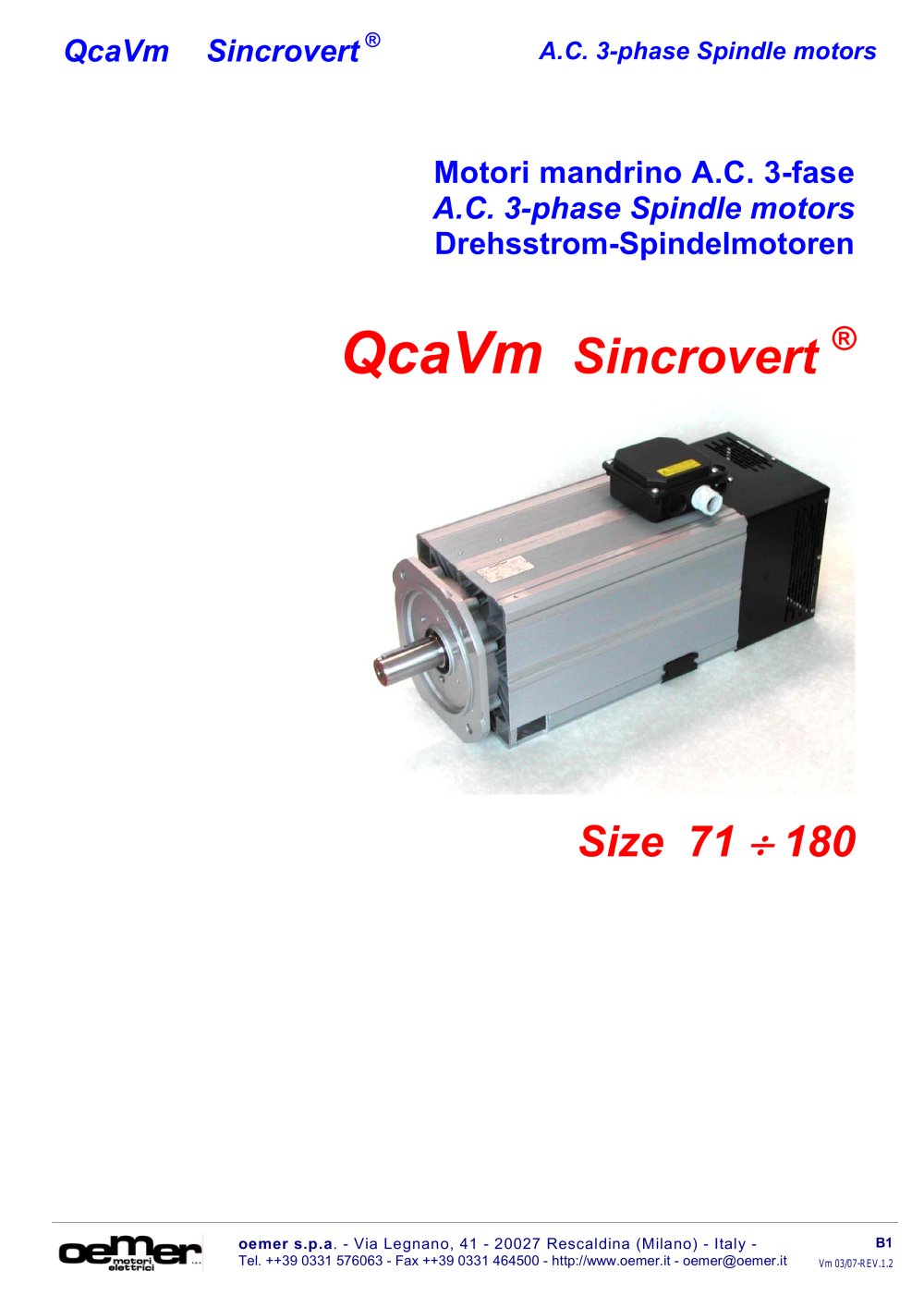

A.C. 3-phase Spindle motors QcaVm-1

QcaVm Sincrovert > A.C. 3-phase Spindle motors Motori mandrino A.C. 3-fase A.C. 3-phase Spindle motors Drehsstrom-Spindelmotoren > oemer s.p.a . - Via Legnano, 41 - 20027 Rescaldina (Milano) - Italy - B1 Tel. ++39 0331 576063 - Fax ++39 0331 464500 - http://www.oemer.it - [email protected] Vm 03/07-REV.1.2 size="-5">

 Open the catalog to page 1
A.C. 3-phase Spindle motors QcaVm-2

Note: oemer s.p.a . - Via Legnano, 41 - 20027 Rescaldina (Milano) - Italy - > B2 Tel. ++39 0331 576063 - Fax ++39 0331 464500 - http://www.oemer.it - [email protected] Vm 03/07-REV.1.2 size="-2">

 Open the catalog to page 2
A.C. 3-phase Spindle motors QcaVm-3

DATI GENERALI GENERAL DATA ALLGEMEINE DATEN Forma costruttiva Mounting Bauformen IM 2001 (B35) Protezione motore Motor Protection Schutzart IP 54 (IP 55 ) > 2) Equilibratura Balancing Auswuchten grado R Ζ R degree grad R Isolamento Insulation Isolation classe F ֖ F class F Klasse Protezione termica Thermal Protection Thermikschutz PTO (Klixon) ֖ PTC > 2) PT100 > 2) Rumore L > W NoiseL > W Ger֤uschpegel L > W L > W < 85 dB (A) Raffreddamento Cooling System Khlung IC 416 Installazione Ambient Umgebungstemperatur - 15 / + 40C - 1000 m a.s.l. ELETTROVENTILATORE ELECTRIC FAN E LEKTROL찜FTER Grandezza...

 Open the catalog to page 3
A.C. 3-phase Spindle motors QcaVm-6

DISEGNO ESPLOSO EXPLODED DIAGRAM ESPLOSIONSZEICHNUNG 1Albero Shaft Welle 2Flangia Flange Flansch 3Cuscinetto lato comando Drive-end bearing WΤlzlager an Abtriebsseite 4Avvolgimento Winding Wicklungen 5Carcassa lato comando Drive-end frame Gehuse an Abtriebsseite 6Statore Stator Stator 7Rotore Rotor Rotor 8Coperchio coprimorsettiera Terminal box cover Deckel fr Klemmenkasten 9Portamorsettiera Terminal box Klemmenkastenaufnahme 10Morsettiera Terminal board Klemmleiste 11Cuscinetto lato opposto comando Non drive-end bearing W伤lzlager an Gegenseite 12Carcassa lato opposto comando Non drive-end frame...

 Open the catalog to page 6
A.C. 3-phase Spindle motors QcaVm-7

DISEGNO ESPLOSO EXPLODED DIAGRAM ESPLOSIONSZEICHNUNG 1 Albero Shaft Welle 2 Flangia Flange Flansch 3 Cuscinetto lato comando Drive-end bearing WΤlzlager an Abtriebsseite 4 Flangia paragrasso Grease Flange Flansch als Fettschutz 5 Avvolgimento Winding Wicklungen 6 Carcassa Frame Gehuse 7 Statore Stator Stator 8 Rotore Rotor Rotor 9 Portamorsettiera Terminal box Klemmenkastenaufnahme 10 Coperchio coprimorsettiera Terminal box cover Deckel fr Klemmenkasten 11 Morsettiera Terminal board Klemmleiste 12 Cuscinetto lato opposto comando Non drive-end bearing W伤lzlager an Gegenseite 13 Coperchio lato...

 Open the catalog to page 7
A.C. 3-phase Spindle motors QcaVm-8

DISEGNO ESPLOSO EXPLODED DIAGRAM ESPLOSIONSZEICHNUNG Encoder tipoHG 660 ANK Encoder typeHG 660 ANK Encoder typ HG 660 ANK 1 Inserto Insert Einsatz 2 Corpo dellΒ encoder Encoder body Drehgeberkrper 3 Vite di serraggio Fastening screws Befestingungsschraube 4 Coperchio filettato Cover with thread Deckel mit Gewinde 5 Braccio di reazione Reaction arm Reaktionsarm Freno tipo R Brake type R Bremse typ R 1 Molle Springs Federn 2 Viti di fissaggio Fastening screws Befestingungsschraube 3 Elettromagnete Electromagnet Elektromagnet 4 Pignone Pinion Ritzel 5 Contromagnete Counter-magnet Gegenmagnet 6 Molla...

 Open the catalog to page 8
A.C. 3-phase Spindle motors QcaVm-9

CONDIZIONI DI MONTAGGIO RACCOMANDATE RACCOMANDED MOUNTING POSITIONS EMPFOHLENE MONTAGEBEDINGUNGEN > FRAME SIZE 71B Ζ 71L - 80B 90S - 100LBE ֖ 112ME 112LE C or Pօ1, 2, 3, 4 90P - 112XE C or P1, 2, 4 Per applicazioni con puleggia si raccomanda lŒutilizzo del cusicnetto a rulli lato comando. For application with pulley the roller bearing option is required. Puleggia Bei Verwendung einer Riemenscheibe wird ein Rollenlager an der Abtriebsseite empfohlen. Pulley Riemenscheibe Per applicazioni con riduttore ad albero innestato (senza giunto flessibile) richiedere sempre la flangia extra precisa. Riduttore...

 Open the catalog to page 9
A.C. 3-phase Spindle motors QcaVm-10

Note: oemer s.p.a . - Via Legnano, 41 - 20027 Rescaldina (Milano) - Italy - > B10 Tel. ++39 0331 576063 - Fax ++39 0331 464500 - http://www.oemer.it - [email protected] Vm 03/07-REV.1.2 size="-2">

 Open the catalog to page 10
