OEMER
A.C. 3-phase Inverter duty motors QL-HQL-HQLa

A.C. 3-phase Inverter duty motors QL-HQL-HQLa

Product catalog summary

Overview: This document is a technical catalog for OEMER SpA's HQL and HQLa Sincrovert® A.C. 3-phase inverter duty motors. It provides comprehensive technical specifications and performance data, emphasizing the importance of consulting both general information and specific technical sheets for complete understanding.

Specifications: The motors range in size from 100 to 355, with power outputs from 1.7 to 1100 kW. They are designed for inverter use and come in different mounting forms (IM 2001 and IM 1001). Protection ratings are IP 54 or IP 55 for QL/HQL types and IP 23S for QLa/HQLa types. Insulation is class F, with thermal protection options including PTO, PTC, KTY, and PT100.

Warnings: The document stresses the dangers of high voltage and rotating parts, urging adherence to installation, use, and maintenance instructions. A manual is provided with each motor, and users should request documentation if missing.

General Data: Motors feature cooling systems (IC 416 for HQL and IC 06 for HQLa) and operate in ambient temperatures from -15°C to +40°C at altitudes up to 1000 meters. Noise levels are kept below 85 dB(A).

Electrical Data and Performance: Detailed tables provide electrical data and performance metrics across different speeds and frequencies, including efficiency percentages and torque values. The maximum continuous operation speed is limited to 70% of the indicated value.

Bearings and Brakes: Information on bearings includes types, codes, maximum speeds, and load capacities. Brake specifications cover static torque, power supply, inertia, and maximum admissible work, with options for adjustable braking torque and double disk versions.

Additional Notes: The document reserves the right to modify technical data without notice and requires written authorization for reproduction. Options available upon request include high-speed and electrically insulated bearings.

Performance Data: The document outlines maximum speed (nmax) and maximum torque (Mmax) for each motor type, specifying that maximum continuous operation speed is limited to 70% of the indicated value. Motors are available with different bearing types, including ball, high-speed, and roller bearings.

Design and Construction: Motors are available in various sizes, with dimensions provided for each. Options for motors with brakes and additional features like radial fans are mentioned. Certain motor sizes are UL approved upon request.

Operational Notes: Nominal current values are based on an indicative voltage of 400V, and actual nominal voltage may vary, affecting rated current. A voltage increase of at least 70V is needed between certain speeds for constant power operation.

Additional Information: Diagrams for power and torque, as well as voltage/frequency relationships, are included. Data for frame size 355 is preliminary and subject to change. Detailed information and drawings for motors with air-to-water cooling units are available upon request.

Brake Types and Specifications: Various brake types for HQL and HQLa motors are outlined, including Rr150, K8/K8D, and Rr180/K9/K9D. Cable glands are not included in the supply, and mounting conditions are detailed.

Dimensions and Options: Dimensions for different motor sizes (160, 180, 225, 280, 355) are provided. Additional dimensions should be added for motors with brakes. Options such as air filters and axial fans are available upon request, with some affecting performance.

Mounting and Configuration: Recommended mounting positions and configurations for different motor sizes are detailed. Roller bearings are advised for pulley applications, and precise flanges for hollow shaft gearboxes.

Transducers and Thermoprotectors: Information on transducers (encoders) and thermoprotectors is provided, including types, pulse counts, and temperature measures. Options for shaft current protection are available.

Brakes and Limitations: Electromagnetic brakes are described as low inertia and fail-safe. Applying brakes limits the motor's maximum speed, especially in vertical installations. A formula for calculating maximum admissible work (Qmax) for braking is included.

Catalog excerpts

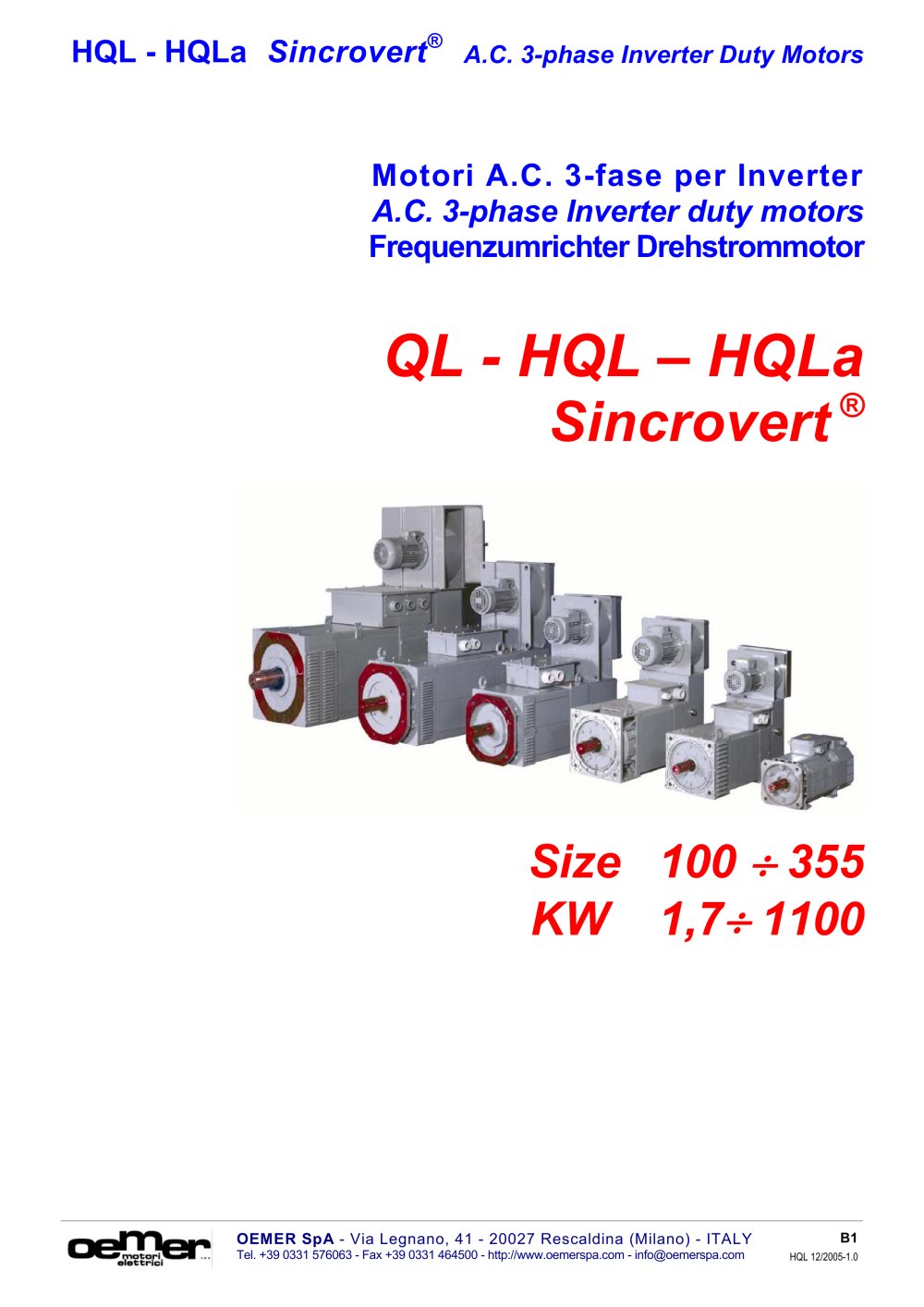

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-1

HQL - HQLa Sincrovert > A.C. 3-phase Inverter Duty Motors Motori A.C. 3-fase per Inverter A.C. 3-phase Inverter duty motors Frequenzumrichter Drehstrommotor > OEMER SpA - Via Legnano, 41 - 20027 Rescaldina (Milano) - ITALY B1 Tel. +39 0331 576063 - Fax +39 0331 464500 - http://www.oemerspa.com - [email protected] HQL 12/2005-1.0 size="-5">

Open the catalog to page 1

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-2

Wir behalten uns das Recht vor, ohne Vorankμndigung, die Daten, technische Merkmale, Abmessungen, Gewichte und Abbildungen dieses Kataloges abzundern. I dati, le prestazioni e le dimensioni dingombro sono indicativi e sono soggetti a variazioni e/o modifiche senza preavviso. Any use of the motor differently from the specifications indicated in this catalogue does not involve any liability for us as manufacturer. We reserve the right to modify at any time and without notice the data, the technical characteristics, the dimensions, the weights and the illustrations. Jegliche Vervielf䒤ltigung auch...

Open the catalog to page 2

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-3

DATI GENERALI GENERAL DATA ALLGEMEINE DATEN Forma costruttiva Mounting Bauformen Size 100, 132, 160 IM 2001 (B35) Size 180, 225, 280, 355 IM 1001 (B3) Protezione motore Motor Protection Schutzart type QL / HQL -IP 54 (IP 55 ) > 2) type QLa / HQLa -IP 23S Equilibratura Balancing Schwinggμte grado R R degree ֖ grad R Isolamento Insulation Isolation classe F F class ֖ F Klasse Protezione termica Thermal Protection Thermikschutz PTO (Klixon) PTC > 2) - KTY > 2) ֖ PT100 > 2) Rumore L > W Noise L > W Geruschpegel L > W L > W < 85 dB (A) Raffreddamento Cooling System Khlung type HQL -IC 416 type HQLa...

Open the catalog to page 3

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-4

DATI ELETTRICI E PRESTAZIONI ELECTRICAL DATA AND PERFORMANCES ELEKTRISCHE DATEN UND LEISTUNGEN n > 1) n

Open the catalog to page 4

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-5

DATI ELETTRICI E PRESTAZIONI ELECTRICAL DATA AND PERFORMANCES ELEKTRISCHE DATEN UND LEISTUNGEN n > 1) n

Open the catalog to page 5

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-6

DATI ELETTRICI E PRESTAZIONI ELECTRICAL DATA AND PERFORMANCES ELEKTRISCHE DATEN UND LEISTUNGEN n > n DATI ELETTRICI E PRESTAZIONI ELECTRICAL DATA AND PERFORMANCES ELEKTRISCHE DATEN UND LEISTUNGEN n > n rpm f > 1) n 25 Hz f > n 37,5 Hz f > n 50 Hz f > n 62.,5 Hz f > n 75 Hz f > n 90 Hz Motor P > n Kw A > (690V) P > n Kw A > (690V) P > n Kw A > (690V) P > n Kw A > (690V) P > n Kw A > (690V) P > n Kw A > (690V) n > max 6) M > max J W Type M > n Nm % M > n Nm % M > n Nm % M > n Nm % M > n Nm % M > n Nm % Rpm Nm Kgm > 2 Kg HQLa253 284 373 392 492 502 603 615 701 715 806 822 355S 4841 87,9 4747 93,7...

Open the catalog to page 6

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-7

LEGENDA DELLE TABELLE KEY-WORDS KURZZEICHEN DATI ELETTRICI E PRESTAZIONI ELECTRICAL DATA AND PERFORMANCES ELEKTRISCHE DATEN UND LEISTUNGEN n > n rpm f > n 19.3 Hz f > n 33.3 Hz f > n 50 Hz f > n 60 Hz f > n 73.3 Hz f > n 86.6 Hz Motor P > n Kw A > (400V) P > n Kw A > (400V) P > n Kw A > (400V) P > n Kw A > (400V) P > n Kw A > (400V) P > n Kw A > (400V) n > max M > max J W Type M > n Nm % M > n Nm % M > n Nm % M > n Nm % M > n Nm % M > n Nm % Rpm Nm Kgm > 2 Kg n > n VelocitΠ di rotazione nominale Nominal speed Nenn Drehzahl n > 1 Velocit di rotazione massima a potenza costante (P > n ) Maximum...

Open the catalog to page 7

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-8

DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] Size B BD D E F GA L L1 M N P S T W Z 100S 160 485 88 > j6 60 8 31 525 128 M10 100M 200 33 28 > 3) 120 100L 250 590 173 > 4) 215 (265) > 2) 180 (230) > 2) 250 (300) > 2) 14.5 4 258 M12 100P 285 625 208 > k6 80 10 41 675 80 100X 335 28 38 Note: > 1) 2) Per motori con freno aggiungere la quota L1 - For motors with brake add L1 quote - Bei Bremsmotoren Wert L1 hinzufμgen. > 3) Opzione disponibile a richiesta Option a vailable on request ֖ Verfgbares Sonderzubehr > 4) Freno tipo R 춖 Brake type R Bremse typ R Freno tipo K...

Open the catalog to page 8

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-9

DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] Size B D E F GA L=LR L1 LR1 M N P S W Z 132S 250 690 205 132M 280 730 245 > k6 4) 132L 315 765 280 (38 > 3) 300 (265) > k6 ) > 2) 110 (80) > 2) 12 (10) > 2) 45 (41) > 2) 855 115 50 > 5) 2) 250 (230) > 2) 350 (300) > 2) 18.5 (14.5) > 2) 370 M 16 132P 355 795 310 132X 400 42 Note: > 1) Per motori HQL con freno aggiungere la quota L1 Ζ For HQL motors with brake add L1 quote - Bei HQL Bremsmotoren Wert L1 hinzufgen. Per motori HQLa con freno aggiungere...

Open the catalog to page 9

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-10

DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] Size B D E F GA L=LR L1 LR1 M N P S W Z 160S 355 845 326 160M 400 880 361 > m6 3) 20 > 4) 350 (300) 160L 450 930 411 (48 > k6 ) > 2) 110 16 (14) > 2) 59 (51.5) > 2) 975 90 > 2) 300 (250) > 2) 400 (350) > 2) 18.5 456 M 20 160P 500 55 Note: > 1) Per motori HQL con freno aggiungere la quota L1 Ζ For HQL motors with brake add L1 quote - Bei HQL Bremsmotoren Wert L1 hinzufgen. Per motori HQLa con freno aggiungere la quota LR1 > 2) For HQLa motors with...

Open the catalog to page 10

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-11

3) DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] Size B B1 D E F GA L LR L1 W Z 180S 400 430 60 > m6 64 1020 1010 282 180M 520 550 1140 1130 402 > 2) m6 472 M 20 180L 590 620 65 140 18 69 1210 1200 200 Note: IM 1001 (B3) Standard IM 2001 (B35) Opzione disponibile a richiesta Ζ Option a vailable on request Verfּgbares Sonderzubehr Motori HQL forniti senza filtro aria > 1) HQL motors supplied without air filter - Die Motoren HQL werden ohne Luftfilter geliefert. > 2) Per motori HQL-HQLa con...

Open the catalog to page 11

A.C. 3-phase Inverter duty motors QL-HQL-HQLa-12

DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - ABMESSUNGEN > Dimensions [mm] Size B D E F GA L L1 W Z 225S 555 1220 (1250) > 2) 362 > m6 225M 615 1280 (1310) > 2) 422 (85 > m6 ) > 2) 140 (170) > 2) 20 (22) > 2) 79.5 (90) > 2) 1340 (1370) 225L 675 75 > 2) 482 225P 803 1500 610 > m6 170 22 90 1620 - - 730 M 20 225X 923 85 Note: IM 1001 (B3) Standard IM 2001 (B35) Opzione disponibile a richiesta Ζ Option a vailable on request Verfּgbares Sonderzubehr Motori HQL forniti senza filtro aria > 1) HQL motors supplied without air filter - Die Motoren HQL werden ohne Luftfilter geliefert. > 2) Per motori...

Open the catalog to page 12
