A.C. 3-ph. SYNCHRONOUS motors QcaSn

Product catalog summary
General Specifications:
The QcaSn Sincrovert® series consists of A.C. 3-phase synchronous motors, available in sizes ranging from 71 to 112. These motors are designed for inverter duty applications and feature various mounting forms including IM 1001 (B3), IM 3001 (B5), IM 2001 (B35), and IM 3611 (B14). The motors have a protection rating of IP 54, with an optional upgrade to IP 55, and are insulated to class F standards. They include thermal protection options such as PTO (Klixon), PTC, and PT100. The noise level is maintained below 85 dB(A), and the cooling system is IC 416.
Electrical Data and Performance:
The motors operate at 4 poles with frequencies of 50 Hz (1500 rpm) and 87 Hz (2600 rpm), as well as 60 Hz (1800 rpm) and 100 Hz (3000 rpm). Power ratings range from 0.25 kW to 5.4 kW, with efficiency levels reaching up to 75%. The motors are designed for a maximum mechanical speed of 9000 rpm without brakes.
Mechanical and Dimensional Data:
The document provides detailed dimensions for each motor size, including overall dimensions and specific measurements for different construction forms (B5, B3, B14). The motors are equipped with bearings coded 6203 ZZ, 6205 ZZ, and 6209 ZZ, depending on the size, with maximum speeds ranging from 7500 to 9000 rpm.
Additional Features:
The motors can be equipped with holding brakes, available only with radial fans, and encoders are not applicable with the brake option. The exploded diagram section identifies key components such as the shaft, flange, bearings, winding, stator, rotor, and ventilation module.
Notes:
The technical catalog includes both general information and specific technical sheets for each motor type. It is important to consult both sections for complete information. The manufacturer reserves the right to modify data, technical characteristics, dimensions, weights, and illustrations without notice.
See more

Catalog excerpts

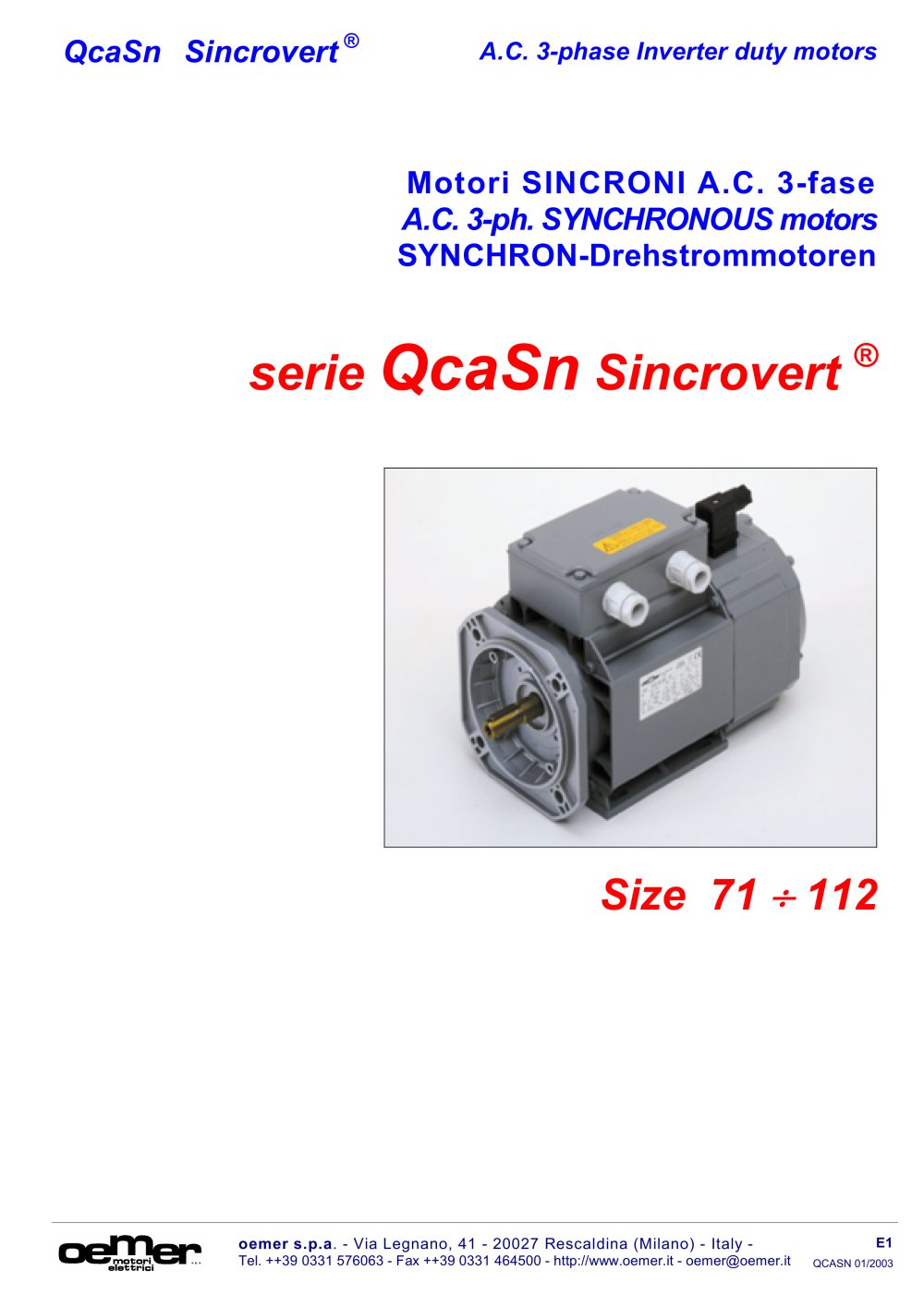

A.C. 3-ph. SYNCHRONOUS motors QcaSn-1

QcaSn Sincrovert > A.C. 3-phase Inverter duty motors Motori SINCRONI A.C. 3-fase A.C. 3-ph. SYNCHRONOUS motors SYNCHRON-Drehstrommotoren > oemer s.p.a . - Via Legnano, 41 - 20027 Rescaldina (Milano) - Italy - E1 Tel. ++39 0331 576063 - Fax ++39 0331 464500 - http://www.oemer.it - [email protected] QCASN 01/2003 size="-5">

 Open the catalog to page 1
A.C. 3-ph. SYNCHRONOUS motors QcaSn-2

DATI GENERALI GENERAL DATA ALLGEMEINE DATEN Forma costruttiva Mounting Bauformen IM 1001 (B3) Ζ IM 3001 (B5) > 2) IM 2001 (B35) > 2) ֖ IM 3611 (B14) > 2) Protezione motore Motor Protection Schutzart IP 54 (IP 55 ) > 2) Equilibratura Balancing Auswuchten grado R R degree ֖ grad R Isolamento Insulation Isolation classe F F class ֖ F Klasse Protezione termica Thermal Protection Thermikschutz PTO (Klixon) > 2) PTC > 2) ֖ PT100 > 2) Rumore L > W Noise L > W Geruschpegel L > W L > W < 85 dB (A) Raffreddamento Cooling System Khlung IC 416 Installazione Ambient Umgebungstemperatur - 15 / + 40估C - 1000...

 Open the catalog to page 2
A.C. 3-ph. SYNCHRONOUS motors QcaSn-3

DATI ELETTRICI E PRESTAZIONI ELECTRICAL DATA AND PERFORMANCES ELEKTRISCHE DATEN UND LEISTUNGEN >

 Open the catalog to page 3
A.C. 3-ph. SYNCHRONOUS motors QcaSn-4

DIMENSIONI DI INGOMBRO OVERALL DIMENSIONS ABMESSUNGEN > Dimensions [mm]

 Open the catalog to page 4
A.C. 3-ph. SYNCHRONOUS motors QcaSn-5

DIMENSIONI DI INGOMBRO OVERALL DIMENSIONS ABMESSUNGEN > Dimensions [mm] Type HE ΢ȅ∅∅∅ I L1 L2 L3 > 1) L4 L5 L6 > 1) L7 O R W1 X Y 71 185 190 95 63 54 63 130 25 80 190 269 105 40 62 145 64 209 105 79 33 150 135 90 100 - 112 235 95 418 165 - - 71 120 40+40 165 156 86 112 170 170 313 112 L- P A: Ventilazione assiale standard, Standard axial fan , Axiale Standardbelftung 1-phase 220/230V 50/60Hz B: Ventilazione assiale a richiesta, Axial fan on request , Axiale Belftung auf Anfrage 3-phase: 380/440V 50/60Hz C: Ventilazione radiale a richiesta, Radial fan on request , Radiale Bel켼ftung auf Anfrage...

 Open the catalog to page 5
A.C. 3-ph. SYNCHRONOUS motors QcaSn-6

DISEGNO ESPLOSO EXPLODED DIAGRAM ESPLOSIONSZEICHNUNG 1 Albero Shaft Welle 2 Flangia Flange Flansch 3 Cuscinetto lato comando Drive-end bearing WΤlzlager an Abtriebsseite 4 Avvolgimento Winding Wicklungen 5 Carcassa lato comando Drive-end frame Gehuse an Abtriebsseite 6 Statore Stator Stator 7 Rotore Rotor Rotor 8 Coperchio coprimorsettiera Terminal box cover Deckel fr Klemmenkasten 9 Portamorsettiera Terminal box Klemmenkastenaufnahme 10 Morsettiera Terminal board Klemmleiste 11 Cuscinetto lato opposto comando Non drive-end bearing W伤lzlager an Gegenseite 12 Carcassa lato opposto comando Non...

 Open the catalog to page 6
