Series 31(3R/4R)

Series 31(3R/4R)

Product catalog summary

Specifications:
The document outlines the specifications for medium power industrial relays, specifically the 3R and 4R series. These relays are CSA certified and designed for compact high performance with direct panel mounting facilities. They are available in 1 Form C, 2 Form C, and 3 Form C contact arrangements, using silver alloy contact material. The rated voltage is 230VAC/24VDC, with a maximum voltage of 440VAC/220VDC and a maximum current of 10A. The relays have a nominal coil power of 1.1 Watts and an operating power of 0.7 Watts. They are designed to operate within an ambient temperature range of -40°C to +70°C and have a mechanical life expectancy of 10 million operations.

Coil Data:
The coil data includes nominal voltages ranging from 6V to 230V, with corresponding coil resistances and pick-up voltages for both AC and DC. For example, a 230V nominal voltage has a coil resistance of 30,000 Ohms and a pick-up voltage of 184V AC.

Relay Socket Assembly:
The relay socket assembly includes a socket terminal layout with specific terminal sets for different relay configurations. Dimensions are provided in millimeters, and the assembly includes a retaining clip for secure mounting.

Applications:
These relays are suitable for industrial control, instrumentation, automation, battery chargers, and power conditioning equipment.

Ordering Information:
The ordering code is structured as follows: Product Series - Number of Poles - Nominal Voltage - Specialties (if any). For example, 3R-3-230-XXX.

Additional Features:
Optional features include a free-wheeling diode, DIN rail mounting socket, and LED indication.

Catalog excerpts

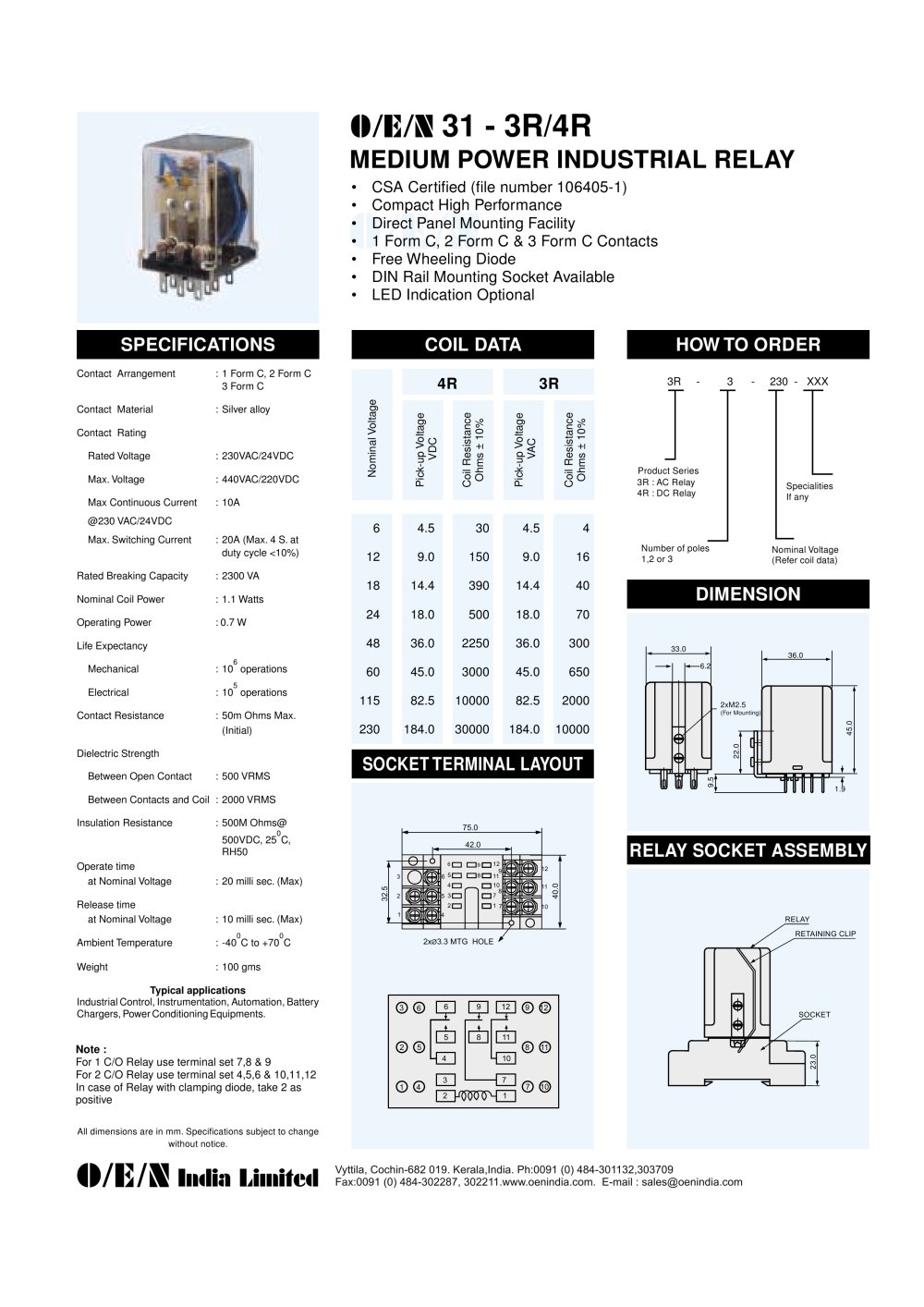

31 - 3R/4R MEDIUM POWER INDUSTRIAL RELAY SPECIFICATIONS COIL DATA HOWTO ORDER RELAY SOCKET ASSEMBLY DIMENSION Nominal Voltage Coil Resistance Ohms ± 10% Pick-up Voltage VAC Pick-up Voltage VDC Coil Resistance Ohms ± 10% • CSA Certified (file number 106405-1) • Compact High Performance • Direct Panel Mounting Facility • 1 Form C, 2 Form C & 3 Form C Contacts • Free Wheeling Diode • DIN Rail Mounting Socket Available • LED Indication Optional 3R - 3 - 230 - XXX Product Series Nominal Voltage (Refer coil data) Specialities If any 6 4.5 30 4.5 4 12 9.0 150 9.0 16 18 14.4 390 14.4 40 24 18.0 500 18.0 70 48 36.0 2250 36.0 300 60 45.0 3000 45.0 650 115 82.5 10000 82.5 2000 230 184.0 30000 184.0 10000 Contact Arrangement : 1 Form C, 2 Form C 3 Form C Contact Material : Silver alloy Contact Rating Rated Voltage : 230VAC/24VDC Max. Voltage : 440VAC/220VDC Max : 10A @230 VAC/24VDC Max. Switching Current : 20A (Max. 4 S. at duty cycle <10%) Rated Breaking Capacity : 2300 VA Nominal Coil Power : 1.1 Watts Operating Power : 0.7 W Electrical : 10 operations Dielectric Strength Between Contacts : 2000 VRMS Ambient Temperature : -40 C to +70 C Weight : 100 gms Continuous Current Life Expectancy Mechanical : 10 operations Contact Resistance : 50m Ohms Max. (Initial) Between Open Contact : 500 VRMS and Coil Insulation Resistance : 500M Ohms@ 500VDC, 25 C, RH50 Operate time at Nominal Voltage : 20 milli sec. (Max) Release time at Nominal Voltage : 10 milli sec. (Max) Industrial Control, Instrumentation, Automation, Battery Chargers, Power Conditioning Equipments. 6 0 5 0 0 Typical applications 4R 3R 3R : AC Relay 4R : DC Relay Number of poles 1,2 or 3 SOCKET TERMINAL LAYOUT 2xM2.5 (For Mounting) 6.2 33.0 36.0 45.0 1.9 9.5 22.0 Note : For 1 C/O Relay use terminal set 7,8 & 9 For 2 C/O Relay use terminal set 4,5,6 & 10,11,12 In case of Relay with clamping diode, take 2 as positive All dimensions are in mm. Specifications subject to change without notice. RETAINING CLIP RELAY SOCKET 23.0 32.5 2 3 1 2xØ3.3 MTG HOLE 6 5 4 6 6 5 5 3 3 2 2 4 4 6 5 4 3 2 42.0 75.0 9 8 9 9 8 8 12 11 10 7 7 9 8 1 12 12 11 11 10 10 7 7 1 1 12 11 10 40.0 Vyttila, Cochin-682 019. Kerala,India. Ph:0091 (0) 484-301132,303709 Fax:0091 (0) 484-302287, 302211.www.oenindia.com. E-mail : [email protected]
