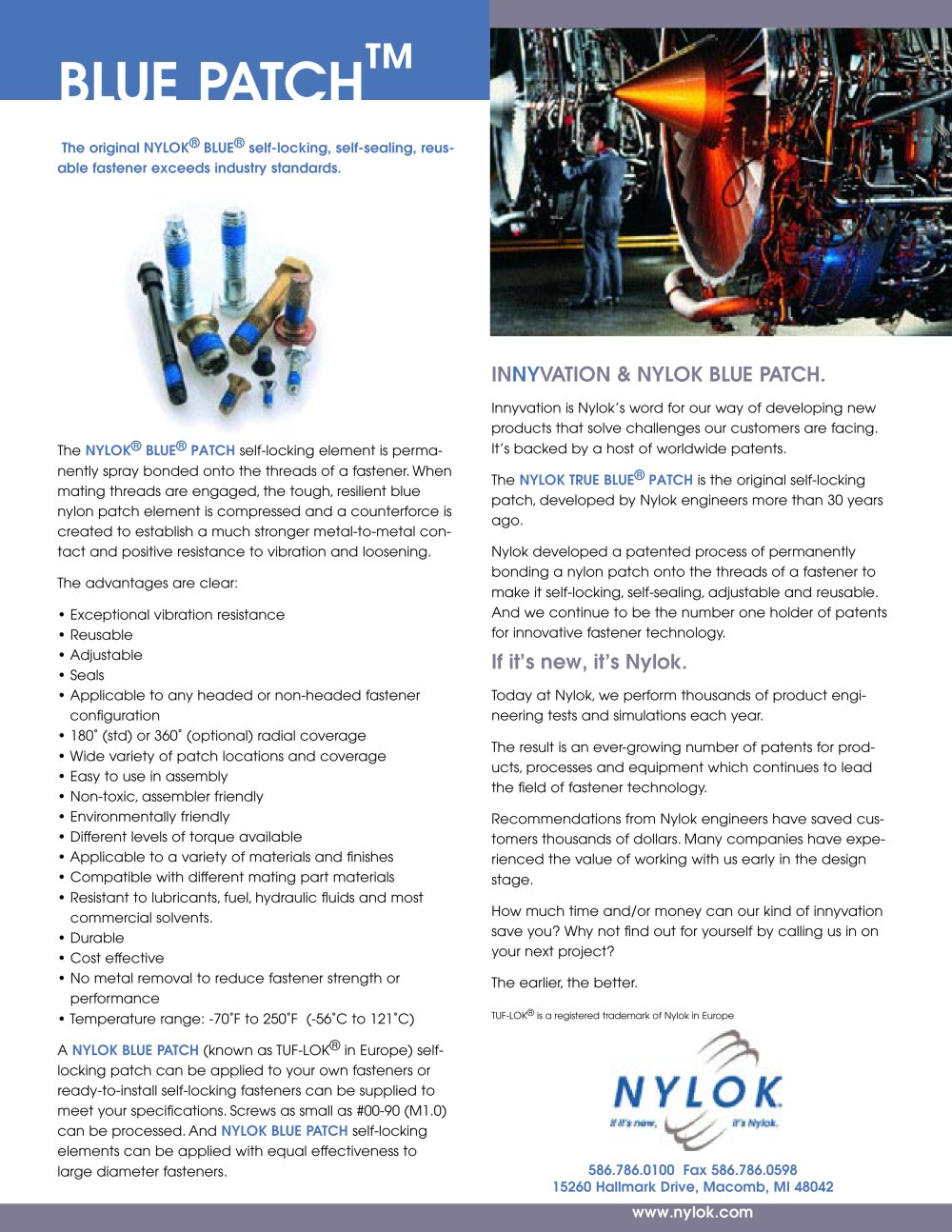

Nylok Blue Self locking patch
2Pages

The original NYLOKٮ BLUE self-locking, self-sealing, reus-able fastener exceeds industry standards. > Innyvation is NylokΒs word for our way of developing new products that solve challenges our customers are facing. Its backed by a host of worldwide patents.The The NYLOKҮ BLUE PATCH self-locking element is perma-nently spray bonded onto the threads of a fastener. When mating threads are engaged, the tough, resilient blue nylon patch element is compressed and a counterforce is created to establish a much stronger metal-to-metal con- tact and positive resistance to vibration and loosening.The advantages are clear:Ε Exceptional vibration resistance Reusable Օ Adjustable Seals renetsaf dedaeh-non ro dedaeh yna ot elbacilppA Օ configuration 180Ջ (std) or 360ڋ (optional) radial coverage ڕ Wide variety of patch locations and coverage Easy to use in assembly Օ Non-toxic, assembler friendly Environmentally friendly Օ Different levels of torque available Applicable to a variety of materials and finishes Օ Compatible with different mating part materials tsom dna sdiulf ciluardyh ,leuf ,stnacirbul NYLOK TRUE BLUE PATCH is the original self-locking patch, developed by Nylok engineers more than 30 years ago.Nylok developed a patented process of permanently bonding a nylon patch onto the threads of a fastener to make it self-locking, self-sealing, adjustable and reusable. And we continue to be the number one holder of patents for innovative fastener technology. > Today at Nylok, we perform thousands of product engi- neering tests and simulations each year.The result is an ever-growing number of patents for prod-ucts, processes and equipment which continues to lead the field of fastener technology. Recommendations from Nylok engineers have saved cus-tomers thousands of dollars. Many companies have expe- rienced the value of working with us early in the design stage. How much time and/or money can our kind of innyvation save you? Why not find out for yourself by calling us in on your next project? The earlier, the better. ot tnatsiseR ҕcommercial solvents. Durable Օ Cost effective ro htgnerts renetsaf ecuder ot lavomer latem oN performanceՕ Temperature range: -70˚F to 250˚F (-56˚C to 121˚C)A > TUF-LOK is a registered trademark of Nylok in Europe NYLOK BLUE PATCH (known as TUF-LOKή in Europe) self-locking patch can be applied to your own fasteners or ready-to-install self-locking fasteners can be supplied to meet your specifications. Screws as small as #00-90 (M1.0) can be processed. And NYLOK BLUE PATCH self-locking elements can be applied with equal effectiveness to large diameter fasteners. 586.786.0100 Fax 586.786.0598 15260 Hallmark Drive, Macomb, MI 48042 >

GM GM6189PFord ES 382101-S100 Ford ESN 800688 S100 Ford WA 970 DaimlerChrysler PF5144 PF5461 DaimlerChrysler PF6157 PF6158 Caterpillar IE2511 Mack Truck 10AMS1 3/8 ֖ 6AXS5 John Deer JDT905F MS MS15981 Military MIL-DTL-18240F Military NAS 1283 Military AN, MS, and NAS PartsIFI IFI-124IFI ֖ IFI 524 DIN DIN 267 Part 28 > (TIME TO LOOSEN UNDER MILITARY SPECIFICATION VIBRATION TEST) > SEATING TORQUE: 75 IN. LBS. (10 PCS.) EQUIPMENT: IMPACT VIBRATION MACHINE FASTENER TYPE 0 1/4-28 SCREW W/SPLIT RING LOCKWASHER1/4-20 SCREW W/INTERNAL TOOTH LOCKWASHER1/4-28 SCREW W/INTERNAL TOOTH LOCKWASHER1/4-20...
