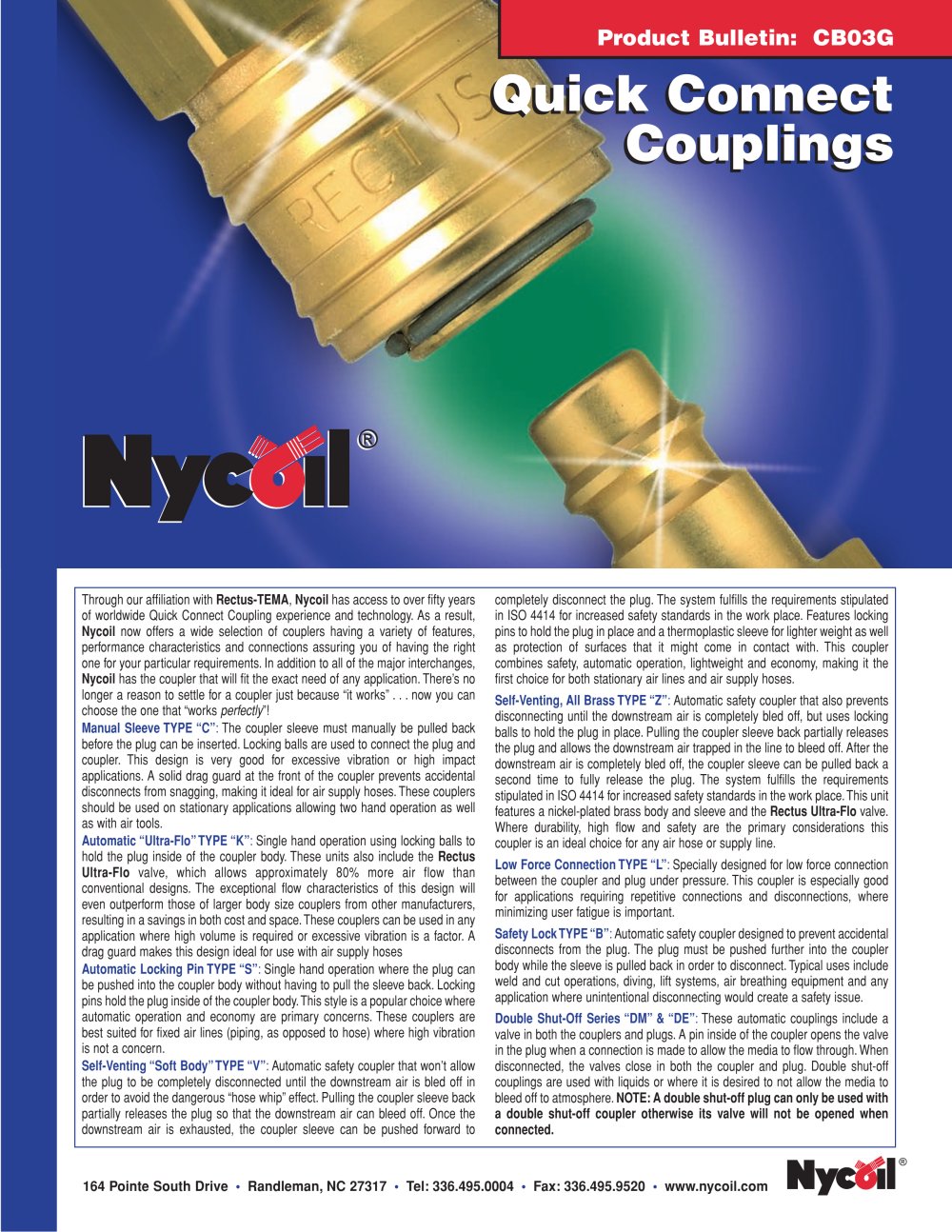

Quick Connect Couplings

Product catalog summary

Overview: Nycoil, in partnership with Rectus-TEMA, offers a diverse range of Quick Connect Couplings tailored for various applications, focusing on performance and safety.

Types of Couplings:

Manual Sleeve TYPE “C”: Requires manual sleeve retraction, ideal for high vibration applications with a drag guard to prevent accidental disconnections.
Automatic “Ultra-Flo” TYPE “K”: Single-hand operation with enhanced airflow, suitable for high-volume applications.
Automatic Locking Pin TYPE “S”: Allows plug insertion without sleeve retraction, emphasizing automatic operation and cost-effectiveness.
Self-Venting “Soft Body” TYPE “V”: Prevents complete disconnection until downstream air is bled off, complying with ISO 4414 standards.
Self-Venting, All Brass TYPE “Z”: Similar to TYPE “V” but with a brass body for durability and high flow.
Low Force Connection TYPE “L”: Designed for frequent connections, minimizing user fatigue.
Safety Lock TYPE “B”: Prevents accidental disconnections, suitable for safety-critical applications.
Double Shut-Off Series “DM” & “DE”: Features valves in both couplers and plugs to prevent media bleed-off, ideal for liquid applications.

Part Numbering Structure: Nycoil uses a descriptive part numbering system indicating interchange type, body size, and connection type for compatibility and ease of selection.

Key Specifications:

Interchange Types: Industrial, Automotive, Aro, Euro, Lincoln, Schrader, Tru-Flate, Miniature.
Body Sizes: Ranges from 1/8" to 1/2".
Materials: Options include zinc-plated steel, nickel-plated brass, and thermoplastic sleeves.

Applications: Suitable for a wide range of industrial applications, including air supply hoses, stationary air lines, and safety-critical environments.

Specifications:

Materials: Components made of brass, nickel-plated brass, zinc-plated steel, and stainless steel. Seals are made of Buna-N.
Working Temperature: Ranges from -40°F to +250°F, depending on the series and type.
Maximum Pressure: Varies from 120 PSI to 500 PSI.
Connecting Force: At 90 PSI, ranges from 13.5 lbs to 49 lbs.

Series and Types:

Series CI4, CI6, CI8: Industrial interchange with manual sleeve and automatic locking pin options.
Series CT4, CT6: Automotive interchange with manual sleeve.
Series CA4, CA6: Aro interchange with various locking mechanisms.
Series CE4, CE6: Euro high flow interchange with automatic ultra-flo and safety self-venting options.
Series CS4: Schrader interchange with twist lock and automatic ultra-flo options.
Series CL4: Lincoln interchange with manual sleeve.
Series CM2: Miniature series with automatic locking ball and pin options.
Series CB4: Euro high flow interchange with safety lock.
Series DM2: Miniature double shut-off with automatic locking ball.
Series DE4: Euro high flow interchange with double shut-off.

Key Features:

Automatic and manual locking systems using stainless steel balls and pins.
High durability with materials like hardened steel and nickel plating.
Variety of connection types to suit different industrial and automotive needs.

Conclusion: The document provides comprehensive technical details for selecting the appropriate coupler and plug based on specific application requirements, ensuring compatibility and performance under various conditions.

Catalog excerpts

C =Single Shut-OffCoupling A =Aro 2 =1/8˝ COUPLERS 1 =1/16˝ B =Hose Barb E =Euro 4 =1/4˝ C =Manual (Sleeve) Type T =3/32˝ F =Female NPT D =Double Shut-Off Coupling I =Industrial 6 =3/8˝ K =Automatic - Ultra-FloӔ 2 =1/8˝ M =Male NPT L =Lincoln 8 =1/2˝ V =Self-Venting (Soft Body) F =5/32˝ L =Push-Lock Barb Product Bulletin: CB03G S =Schrader Z =Self Venting (All Brass) 3 =3/16˝ T =Tubing Connection T =Tru-Flate S =Automatic - Pin Type 4 =1/4˝ G =Male BSPP M =Miniature D =Double Shut-Off 5 =5/16˝ H =Female BSPP B =Safety Lock(Air Breathing) L =Low Force Connection 6 =3/8˝ R =Male BSPT PLUGS 7 =7/16˝...

Open the catalog to page 2

ConnectionPush-LockSizeFemaleMaleHose BarbHose Barb 1/4CT6C4FCT6C4M > 3/8CT6C6FCT6C6MCT6C6BCT6C6L1/2CT6C8FCT6C8MCT6C8B ConnectionPush-LockSizeFemaleMaleHose BarbHose Barb > ConnectionPush-LockSizeFemaleMaleHose BarbHose Barb > ConnectionPush-LockSizeFemaleMaleHose Barb*Hose Barb 1/8CA4P2M > 1/4CA4P4FCA4P4MCA4P4BCA4P4L5/16CA4P5B 3/8CA4P6FCA4P6MCA4P6B 1/2CA4P8B* Hose Barb Plugs are Nickel Plated > Connection SizeFemaleMaleHose Barb 1/4CA6P4B >

Open the catalog to page 4

ConnectionPush-LockSizeFemaleMaleHose BarbHose Barb 1/8CS4C2FCS4C2M > Connection SizeFemaleMaleHose Barb > Product Bulletin: CB03G

Open the catalog to page 6

"C" Manual Sleeve"K" Automatic Ultra-Flo"S" Automatic Locking Pin"V" Safety Self-Venting "Z" Safety Self-Venting"L" Low Force Connection "Soft Body Front BodyBrassBrassBrassNickel Plated BrassNickel Plated SteelNickel Plated Brass Back BodyBrassBrassBrassNickel Plated BrassNickel Plated Brass Nickel Plated Brass SleeveBrassNickel Plated Hardened SteelBrassThermoplasticNickel Plated Brass Nickel Plated Steel ValveZinc Plated SteelNickel Plated ZincBrassBrassBrassBrass SpringsAISI 301 Stainless SteelAISI 301 Stainless SteelAISI 301 Stainless SteelAISI 301 Stainless SteelAISI 301 Stainless SteelStainless...

Open the catalog to page 8

"C" Manual Sleeve "C" Manual Sleeve Front BodyBrass Front BodyZinc Plated Steel Back BodyBrass Back BodyZinc Plated Steel SleeveBrass SleeveZinc Plated Steel ValveZinc Plated Steel ValveZinc Plated Steel SpringsAISI 301 Stainless Steel SpringsAISI 301 Stainless Steel Locking SystemStainless Steel Balls Locking SystemStainless Steel Balls SealBuna-N SealBuna-N Working Temperature-40F to + 250аF Working Temperature-40F to + 250аF Maximum Pressure300 PSIConnecting Force At 90 PSI16 Lbs. Maximum Pressure300 PSIConnecting Force At 90 PSI36 Lbs. > Product Bulletin: CB03G "C" Manual Sleeve"K" Automatic...

Open the catalog to page 9

"K" Automatic Ultra-Flo "C" Twist Lock"K" Automatic Ultra-Flo Front BodyBrass Front BodyBrass/AluminumZinc Plated Hardened Steel Back BodyBrass Back BodyBrassNickel Plated BrassSleeveZinc Plated SteelNickel Plated Hardened Steel SleeveNickel Plated Hardened Steel ValveBrass (Yellow Chromate Finish)ValveZinc Plated SteelBrass SpringsAISI 301 Stainless Steel (Yellow Chromate Finish) Locking SystemAISI 420 Stainless Steel Balls SpringsAISI 302 Stainless SteelAISI 303 Stainless Steel SealBuna-N Locking SystemZinc Plated Steel PawlsAISI 420 Stainless Steel Balls Working Temperature-4F to + 210аF SealBuna-NBuna-N...

Open the catalog to page 10

Shown below and on page 12 are actual sizeӔlayouts of our coupler and plug offering.These layouts can be used for envelope dimensions as well as identifying body size and interchange by the plug profile. Product Bulletin: CB03G Type:C I 4CCA4CCT4C Type:C I 4SCA4SCE4S Type:C I 4KCA4KCE4K DE4K Type:C I 4VCA4VCE4V I 4ZCE4Z Type:C Type:C Type:C Type:CA4P Type:CT4P Type:CE4PCE4N Type:DE4N I 4LCE4L I 4P Type:C Type:C Type:CA6S Type:C Type:CT6P I 6CCT6C I 6S I 6P > 11 164 Pointe South Drive ● Randleman, NC 27317 ● Tel:336.495.0004 ● Fax:336.495.9520 ● www.nycoil.com size="-1">
