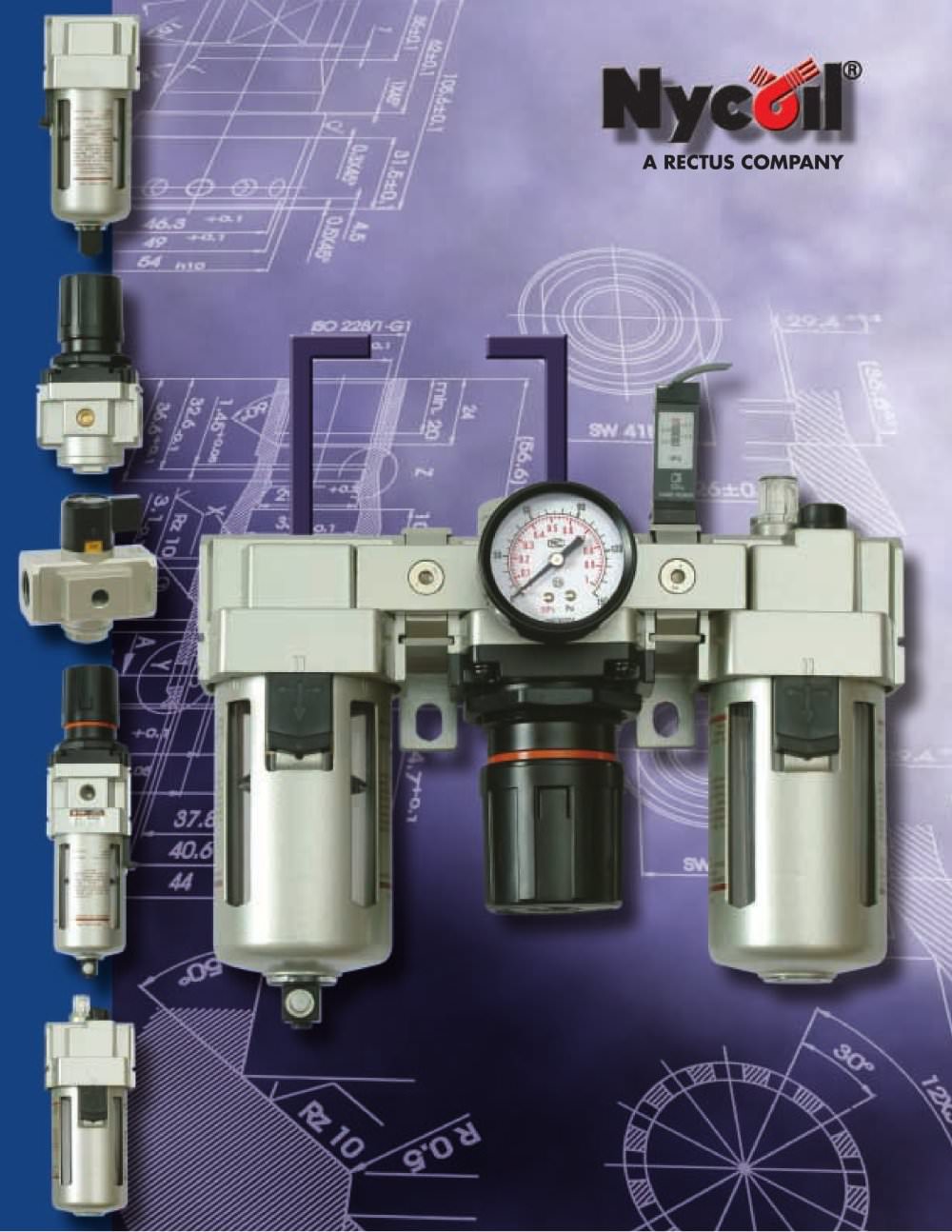

Modular Air Filter

Product catalog summary

Introduction
Nycoil, part of the Rectus Group, has been a leader in the pneumatic industry since 1958, known for innovations such as the Nylon Self-Storing Air Hose and Pneumatic Push-To-Connect Fittings. The company focuses on high-quality manufacturing, offering features like sintered bronze elements in filters and a bayonet type bowl-locking system for safety.

Product Features
Nycoil products feature aluminum die-cast bodies and brass/thermoplastic internal components. Filters and lubricators include a bayonet locking system and polycarbonate bowls. The modular design allows for easy assembly and mounting, with accessories like shut-off valves and pressure switches. Products are available in four body sizes and eight port sizes. Regulators offer low drift for consistent pressure control and feature non-rising, lockable adjustment knobs.

Warranty and Quality Assurance
Nycoil guarantees its components against defects in material and workmanship for one year, with a five-year warranty on filter and lubricator bowls.

Product Specifications
Specifications include:

Modular Air Filters: Series AF2000 to AF5000, max flow rates from 26.5 to 247 CFM, port sizes from 1/8 to 1 inch NPT.
Main Air Line Filters: AFF series, max flow rates up to 425 CFM, port sizes from 1-1/2 to 2 inches NPT.
Modular Pressure Regulators: Series AR2000 to AR5000, regulating ranges from 5 to 120 PSI.
Modular Air Filter Pressure Regulator Units: Series AW2000 to AW4000, combining filtration and regulation.
Modular Air Line Lubricators: Series AL2000 to AL5000, designed for proportional lubricant delivery.

Ordering Information
Products are identified by a part number system indicating type, series, and options such as filter element size and bowl material. Options include metal bowls and different filter element sizes.

Flow Specifications
Flow data is provided for various models, indicating pressure drops at different flow rates to help users select the appropriate model.

Specifications and Flow Data
The document provides technical specifications and flow data for the Modular Air Line Lubricator series AL2000, 3000, 4000, and 5000, including construction materials, parts lists, and performance metrics.

Construction Materials
Components are constructed from materials such as aluminum die casting, polycarbonate, and stainless steel, ensuring durability and resistance to corrosion. The document lists materials used for each part, such as the body, filter element, and diaphragm assembly.

Flow and Pressure Data
Flow and pressure data for modular air filters and regulators are provided, indicating performance under different supply pressures. Graphs and tables illustrate the relationship between flow rates and pressure drops.

Recommendations
The document recommends using automatic drains in overhead compressed air distribution systems to prevent moisture accumulation. It emphasizes reliable, maintenance-free operation and the use of corrosion-resistant materials for long service life.

Contact Information
For further inquiries, contact NYCOIL at 164 Pointe South Drive, Randleman, NC 27317, Phone: 800.322.6645, Fax: 336.495.9520, or visit www.nycoil.com.

Catalog excerpts

Once again Nycoil has responded to market demands with new high performance product, which further proves ourcommitment and dedication to our customers! > Rectus .The Filters, Regulators and Lubricators in this catalog are the result of our vast network of global manufacturingaffiliations. Today, in order to develop the best-engineered, high quality products at the rightӔ price that the market demands, manufacturers must draw from international experience and the latest technology to be successful. Nycoil/SQW brand of FRLs are the perfect example of this worldwide affiliation. This proves that...

Open the catalog to page 2

AD202-02AD402-03AD402-04 Max. Supply Pressure220 PSI Max. Operating Pressure150 PSI Ambient and Media Temperature40-140F Pressure Range20-145 PSI15-150 PSI Enter Size1/4 NPT3/8 NPT1/2 NPT Drain Port1/8 NPTPipe inner dia (.236) Drain TypeN.O.Manual DrainWithoutWith > Standard with Metal Bowl Guard P Enter Drain ModelADMCNC AD202-026.222.171/4 NPT1/8 NPT > A AD402-036.692.833/8 NPT6mm (Pipe inner dia.)AD402-046.692.831/2 NPT6mm (PU) > N DM P Enter Drain No.ComponentMaterial > 1 2 1BodyAluminum die casting > 3

Open the catalog to page 11

Secondary Pressure (PSI) Secondary Pressure (PSI) 152944587387 018355371Flow (SCFM) > Secondary Pressure (PSI) 152944587387 > Secondary Pressure (PSI) 152944587387 0152944587387 714212835Flow (SCFM) 35711411060Flow (SCFM) 35711411060 Flow (SCFM) > Set point Set point Supply pressure (PSI) Set point Set point > Secondary pressure (PSI) Secondary pressure (PSI) Secondary pressure (PSI) Secondary pressure (PSI) 0.20.30.40.50.60.70.80.91.002628293032 0.20.30.40.50.60.70.80.91.00282930 0.20.30.40.50.60.70.80.91.00282930 0.20.30.40.50.60.70.80.91.00222936 Supply pressure (PSI) Supply pressure (PSI)...

Open the catalog to page 18

4 > Pressure drop(PSI) Pressure drop(PSI) 3691215 01835537088Flow(SCFM) 3691215 03570106141159 >

Open the catalog to page 19
