Overview: Nufern has developed a new family of fibers, NuWIRE, designed for extreme duty applications. These fibers are engineered to be more 'wire-like' and are suitable for environments with rapid temperature changes, shock, stress, vibration, and chemical exposure. They are also resistant to ionizing radiation.

Fiber Families: Nufern offers various fiber families including Eye Safe, NuPANDA, NuBOX, Triple Clad, NuWIRE, and Communications. The Extreme Radiation Hardened S1550 products are export-controlled by the US Department of Commerce.

Life Expectancy: The fibers are manufactured in ultra-clean environments to enhance life expectancy, minimizing proof test breaks and maximizing strength. Both Telcordia and Cost 218 models indicate exemplary life expectancy.

Performance: NuWIRE fibers exhibit excellent uniformity in optical and mechanical properties, ensuring deterministic and repeatable performance. They are immune to electromagnetic pulses and static electricity discharge failures. The fibers come with High Temperature Acrylate coatings, rated for 22 years at 125°C and perform down to -55°C. Silicone or Polyimide coatings are available for wider temperature ranges.

Festoon Architecture: Designed for bend-insensitive applications, these fibers are suitable for tube raceways and cable constructions meeting smoke, flammability, and toxicity regulations. Key attributes include less than 3dB insertion loss and a minimum 22-year life expectancy.

Specifications: The document includes detailed specifications on radiation resistance, failure probability, and stress rates. It highlights the robustness of the fibers in extreme conditions and their ability to maintain performance over long periods.

Catalog excerpts

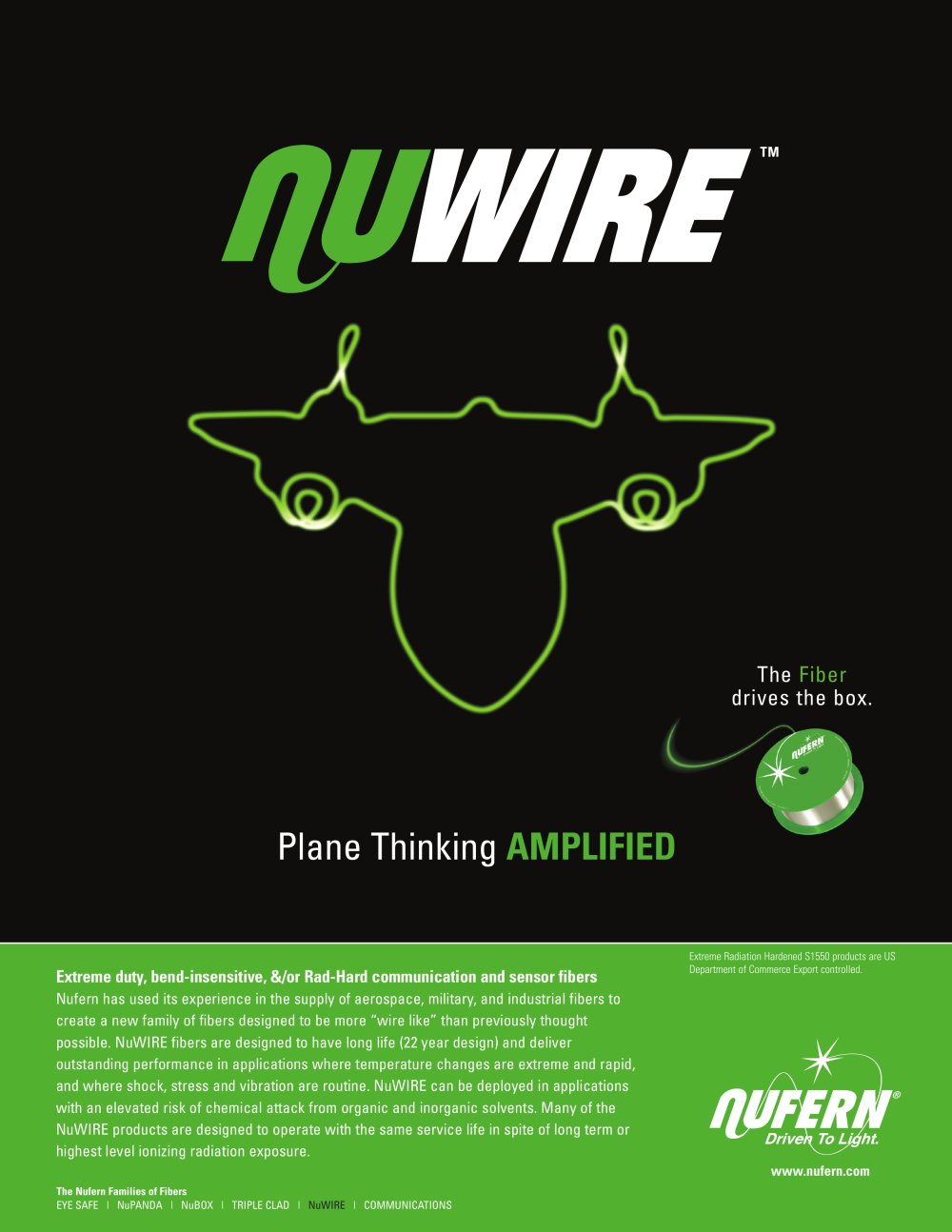

866.466.0214 | www.nufern.com Extreme duty, bend-insensitive, &/or Rad-Hard communication and sensor fibers Nufern has used its experience in the supply of aerospace, military, and industrial fibers to create a new family of fibers designed to be more “wire like” than previously thought possible. NuWIRE fibers are designed to have long life (22 year design) and deliver outstanding performance in applications where temperature changes are extreme and rapid, and where shock, stress and vibration are routine. NuWIRE can be deployed in applications with an elevated risk of chemical attack from organic and inorganic solvents. Many of the NuWIRE products are designed to operate with the same service life in spite of long term or highest level ionizing radiation exposure. Plane Thinking AMPLIFIED The Fiber drives the box. TM Shake Rattle and Rol Shake Rattle www.nufern.com The Nufern Families of Fibers EYE SAFE | NuPANDA | NuBOX | TRIPLE CLAD | NuWIRE | COMMUNICATIONS Extreme Radiation Hardened S1550 products are US Department of Commerce Export controlled.

Open the catalog to page 1

Life Expectancy Fiber life expectancy is enhanced by manufacturing in an ultra-clean environment in which airborne particles, temperature, and humidity are controlled very precisely. The result is a minimization of low strength proof test breaks, and a maximization of the fiber strength. Both Telcordia and the new Cost 218 models show exemplary life expectancy. 7 Airport Road, East Granby, CT 06026 Toll Free: 866.466.0214 | Tel: 860.408.5000 | Fax: 860.844.0210 | www.nufern.com NU0095-01/06 Diameter, ìm Telcordia Test Spool Number (100 km tot.) Induced Attentuation @ 1550 nm (dB/km) Accumulated...

Open the catalog to page 2
