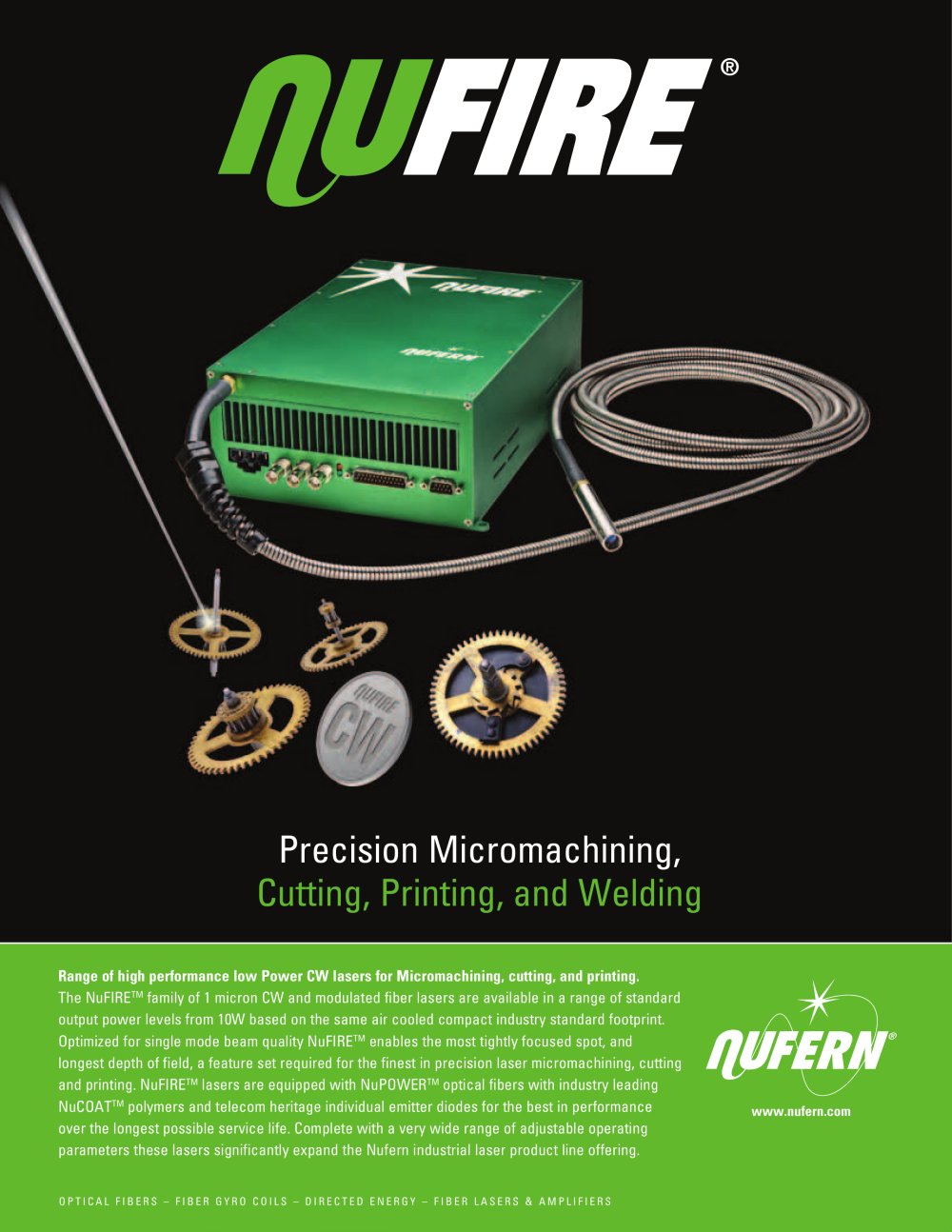

NuFIRE brochure - 1

Precision Micromachining, Cutting, Printing, and Welding Range of high performance low Power CW lasers for Micromachining, cutting, and printing. The NuFIRETM family of 1 micron CW and modulated fiber lasers are available in a range of standard output power levels from 10W based on the same air cooled compact industry standard footprint. Optimized for single mode beam quality NuFIRETM enables the most tightly focused spot, and longest depth of field, a feature set required for the finest in precision laser micromachining, cutting and printing. NuFIRETM lasers are equipped with NuPOWERTM optical fibers with industry leading NuCOATTM polymers and telecom heritage individual emitter diodes for the best in performance over the longest possible service life. Complete with a very wide range of adjustable operating parameters these lasers significantly expand the Nufern industrial laser product line offering. 866.466.0214 | www.nufern.com O P T I C A L F I B E R S – F iber G Y R O C O I L S – D I R E C T E D E N E R G Y – F I B E R L A S E R S & A M P L I F I E R S www.nufern.com

Open the catalog to page 1
NuFIRE brochure - 2

Precision Micromachining, Cutting, Printing, and Welding Optical Benefits Mechanical Benefits • Single-mode beam quality • Compact industry standard footprint for all products • CW and modulated output • Rugged air cooled design for survivability • 5m delivery ber and output collimator • Metal armored ex output cable for durability • Optional collinear red-pointer • Convenient termination housing 24 22 20 18 16 Optical Output Power (W) 30 25 20 15 14 5 M2 < 1.2 10 AMP Heat Sink Temperature (C) 35 26 40 28 Stable Over Widest Temperature Range Beam Quality Image 0 1 2 3 4 5 6 Time (Hour)...

Open the catalog to page 2
