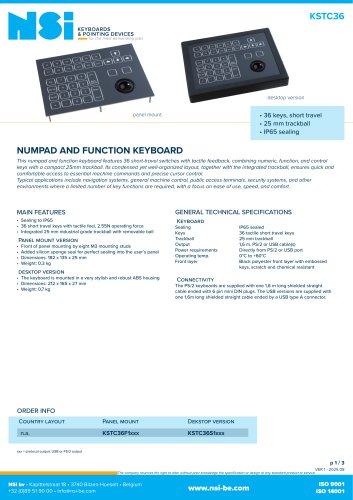

• 36 keys, short travel• 25 mm trackball• IP65 sealing NUMPAD AND FUNCTION KEYBOARD This numpad and function keyboard features 36 short-travel switches with tactile feedback, combining numeric, function, and control keys with a compact 25mm trackball. Its condensed yet well-organized layout, together with the integrated trackball, ensures quick and comfortable access to essential machine commands and precise cursor control. Typical applications include navigation systems, general machine control, public access terminals, security systems, and other environments where a limited number of key functions are required, with a focus on ease of use, speed, and comfort. MAIN FEATURES GENERAL TECHNICAL SPECIFICATIONS Keyboard Power requirements Operating temp. Front layer • 36 short travel keys with tactile feel, 2.55N operating force • Integrated 25 mm industrial grade trackball with removable ball Panel mount version • Front of panel mounting by eight M3 mounting studs • Added silicon sponge seal for perfect sealing into the user’s panel desktop version • The keyboard is mounted in a very stylish and robust ABS housing 36 tactile short travel keys Directly from PS/2 or USB port 0°C to +60°C Black polyester front layer with embossed keys, scratch and chemical resistant The PS/2 keyboards are supplied with one 1,6 m long shielded straight cable ended with 6 pin mini DIN plugs. The USB versions are supplied with one 1,6m long shielded straight cable ended by a USB type A connector. Country layout Panel mount Dekstop version xxx = protocol output: USB or PS/2 output The company reserves the right to alter without prior knowledge the specification or design of any standard product or service.

KSTC36 KEYBOARDS & POINTING DEVICES for the most demanding jobs DIMENSIONAL DRAWING Panel mount 9,00 164,00 DIM IN MM.COLOURS • Keyboard & Key Background: RAL7016 anthrasite grey • Key edges & key legends: RAL9016 Traffic white p 2 / 3 _The company reserves the right to alter without prior knowledge the specification or design of any standard product or service._ NSI bv • Kapittelstraat 18 • 3740 Bilzen-Hoeselt • Belgium +32 (0)89 51 90 00 • [email protected] www.nsi-be.com ISO 9001 ISO 14001

KSTC36 KEYBOARDS & POINTING DEVICES for the most demanding jobs Desktop version DIM IN MM. COLOURS • Keyboard & Key Background: RAL7016 anthrasite grey • Key edges & key legends: RAL9016 Traffic white The company reserves the right to alter without prior knowledge the specification or design of any standard product or service. NSI bv • Kapittelstraat 18 • 3740 Bilzen-Hoeselt • Belgium +32 (0)89 51 90 00 • [email protected] www.nsi-be.com ISO 9001 ISO 14001
