NSI laser trackballs - 1

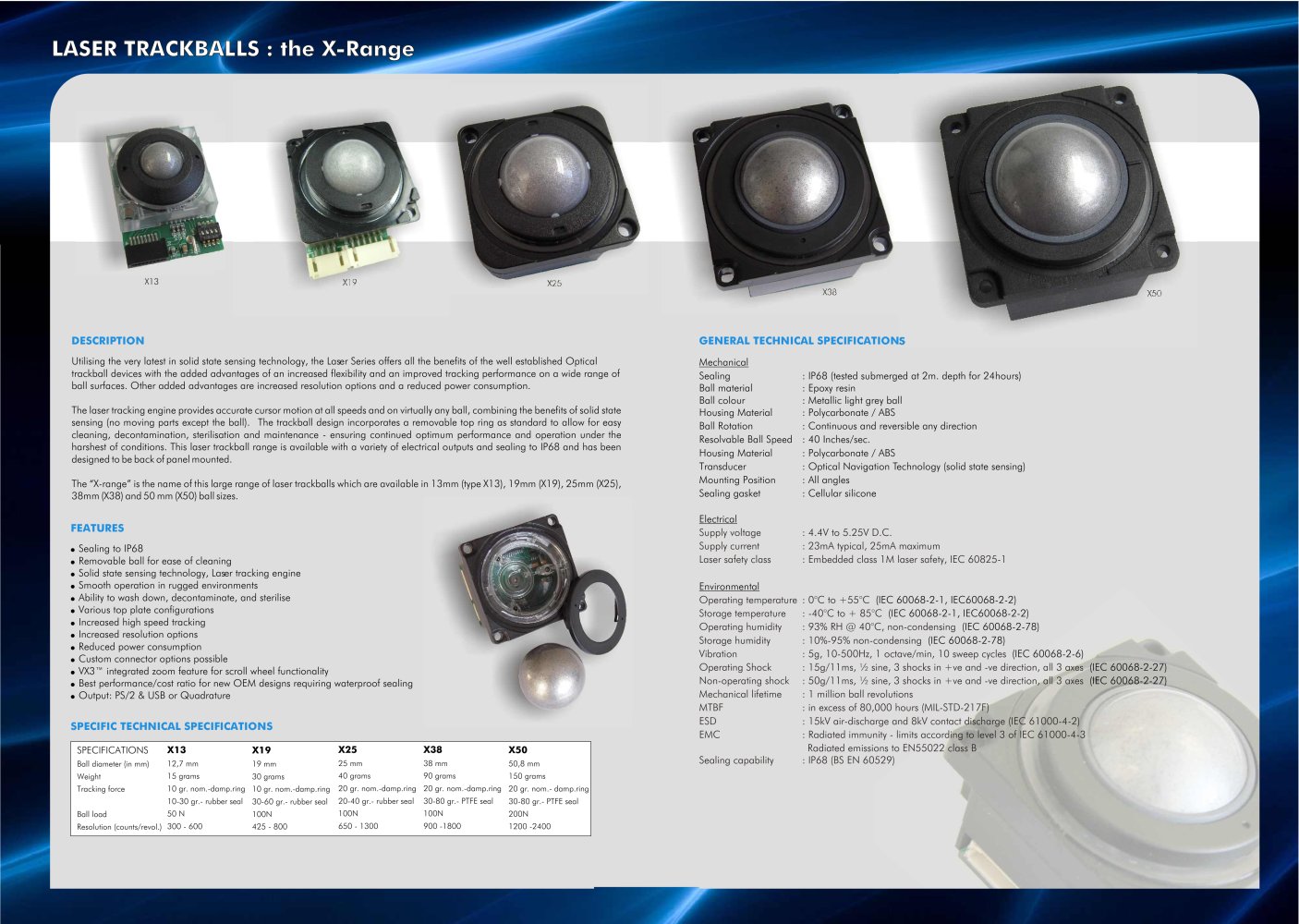

LASER TRACKBALLS : the X-Range FEATURES ! Sealing to IP68 ! Removable ball for ease of cleaning ! Solid state sensing technology, Laser tracking engine ! Smooth operation in rugged environments ! Ability to wash down, decontaminate, and sterilise ! Various top plate configurations ! Increased high speed tracking ! Increased resolution options ! Reduced power consumption ! Custom connector options possible ! VX3™ integrated zoom feature for scroll wheel functionality ! Best performance/cost ratio for new OEM designs requiring waterproof sealing ! Output: PS/2 & USB or Quadrature X50 X13 X19 DESCRIPTION Utilising the very latest in solid state sensing technology, the Laser Series offers all the benefits of the well established Optical trackball devices with the added advantages of an increased flexibility and an improved tracking performance on a wide range of ball surfaces. Other added advantages are increased resolution options and a reduced power consumption. The laser tracking engine provides accurate cursor motion at all speeds and on virtually any ball, combining the benefits of solid state sensing (no moving parts except the ball). The trackball design incorporates a removable top ring as standard to allow for easy cleaning, decontamination, sterilisation and maintenance - ensuring continued optimum performance and operation under the harshest of conditions. This laser trackball range is available with a variety of electrical outputs and sealing to IP68 and has been designed to be back of panel mounted. The “X-range” is the name of this large range of laser trackballs which are available in 13mm (type X13), 19mm (X19), 25mm (X25), 38mm (X38) and 50 mm (X50) ball sizes. GENERAL TECHNICAL SPECIFICATIONS Mechanical Sealing : IP68 (tested submerged at 2m. depth for 24hours) Ball material : Epoxy resin Ball colour : Metallic light grey ball Housing Material : Polycarbonate / ABS Ball Rotation : Continuous and reversible any direction Resolvable Ball Speed : 40 Inches/sec. Housing Material : Polycarbonate / ABS Transducer : Optical Navigation Technology (solid state sensing) Mounting Position : All angles Sealing gasket : Cellular silicone Electrical Environmental (IEC 60068-2-1, IEC60068-2-2) (IEC 60068-2-1, IEC60068-2-2) (IEC 60068-2-78) (IEC 60068-2-78) (IEC 60068-2-6) (IEC 60068-2-27) (IEC 60068-2-27) Supply voltage : 4.4V to 5.25V D.C. Supply current : 23mA typical, 25mA maximum Laser safety class : Embedded class 1M laser safety, IEC 60825-1 Operating temperature : 0°C to +55°C Storage temperature : -40°C to + 85°C Operating humidity : 93% RH @ 40°C, non-condensing Storage humidity : 10%-95% non-condensing Vibration : 5g, 10-500Hz, 1 octave/min, 10 sweep cycles Operating Shock : 15g/11ms, ½ sine, 3 shocks in +ve and -ve direction, all 3 axes Non-operating shock : 50g/11ms, ½ sine, 3 shocks in +ve and -ve direction, all 3 axes Mechanical lifetime : 1 million ball revolutions MTBF : in excess of 80,000 hours (MIL-STD-217F) ESD : 15kV air-discharge and 8kV contact discharge (IEC 61000-4-2) EMC : Radiated immunity - limits according to level 3 of IEC 61000-4-3 Radiated emissions to EN55022 class B Sealing capability : IP68 (BS EN 60529) SPECIFIC TECHNICAL SPECIFICATIONS X38 X25 SPECIFICATIONS Ball diameter (in mm) Weight Tracking force Ball load Resolution (counts/revol.) X13 12,7 mm 15 grams 10 gr. nom.-damp.ring 10-30 gr.- rubber seal 50 N 300 - 600 X19 19 mm 30 grams 10 gr. nom.-damp.ring 30-60 gr.- rubber seal 100N 425 - 800 X25 25 mm 40 grams 20 gr. nom.-damp.ring 20-40 gr.- rubber seal 100N 650 - 1300 X38 38 mm 90 grams 20 gr. nom.-damp.ring 30-80 gr.- PTFE seal 100N 900 -1800 X50 50,8 mm 150 grams 20 gr. nom.- damp.ring 30-80 gr.- PTFE seal 200N 1200 -2400

Open the catalog to page 1
NSI laser trackballs - 2

LASER TRACKBALLS : the X-Range ORDER INFO Quadrature PS/2 & USB DAMPER RING RUBBER SEAL PTFE SEAL X13-70021D X13-70022D X13-76021D X13-76022D TRACKBALL OUTPUT 13 mm ball Quadrature PS/2 & USB X19-70021D X19-70022D X19-76021D X19-76022D 19 mm ball Quadrature PS/2 & USB X25-70021D X25-70022D X25-76021D X25-76022D 25 mm ball Quadrature PS/2 & USB X38-70021D X38-70023D X38-76021D X38-76023D 38 mm ball Quadrature PS/2 & USB X50-70021D X50-70023D X50-76021D X50-76023D 50 mm ball PS/2 output cable; 1,6 m. USB output cable; 1,6 m. External switch cable; 35 cm. Interconnection cable; 35 cm. for...

Open the catalog to page 2
