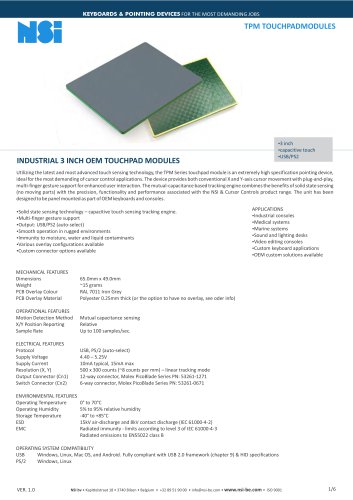

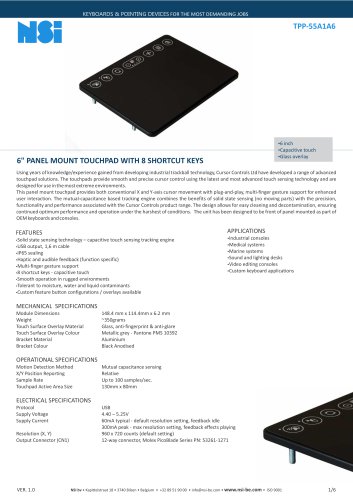

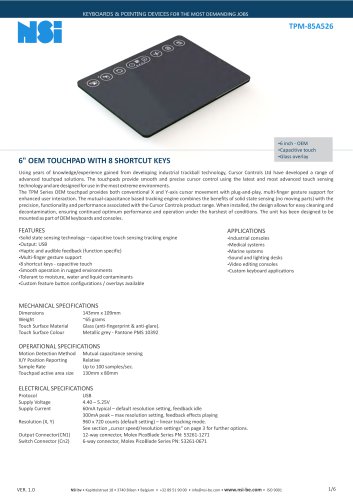

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS Using years of knowledge/experience gained from developing industrial trackball technology. Cursor Controls Ltd have developed a range of advanced touchpad solutions. The touchpads provide smooth and precise cursor control using the latest and most advanced touch sensing technology and are designed for use in the most extreme environments. The TPM Series OEM touchpad provides both conventional X and Y-axis cursor movement with plug-and-play, multi-finger gesture support for enhanced user interaction. The mutual-capacitance based tracking engine combines the benefits of solid state sensing (no moving parts) with the precision, functionality and performance associated with the Cursor Controls product range. When installed, the design allows for easy cleaning and decontamination, ensuring continued optimum performance and operation under the harshest of conditions. The unit has been designed to be mounted as part of OEM keyboards and consoles. APPLICATIONS •Industrial consoles •Medical systems •Marine systems •Sound and lighting desks •Video editing consoles •Custom keyboard applications FEATURES •Solid state sensing technology - capacitive touch sensing tracking engine •Output: USB • Haptic and audible feedback (function specific) • Multi-finger gesture support •8 shortcut keys - capacitive touch •Smooth operation in rugged environments •Tolerant to moisture, water and liquid contaminants •Custom feature button configurations / overlays available Touch Surface Material Glass (anti-fingerprint & anti-glare). Touch Surface Colour Metallic grey - Pantone PMS 10392 Motion Detection Method X/Y Position Reporting Sample Rate Touchpad active area size Mutual capacitance sensing Relative ELECTRICAL SPECIFICATIONS Protocol Supply Voltage Supply Current Output Connector(CNl) Switch Connector (Cn2) 60mA typical - default resolution setting, feedback idle 300mA peak - max resolution setting, feedback effects playing 960 x 720 counts (default setting) - linear tracking mode. See section „cursor speed/resolution settings" on page 3 for further options. 12-way connector, Molex PicoBlade Series PN: 53261-1271 6-way connector, Molex PicoBlade Series PN: 53261-0671 NSI bv • Kapittelstraat 18 • 3740 Bilzen • Belgium • +32 89 51 90 00 • [email protected] • www.nsi-be.com • ISO 9001

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS ENVIRONMENTAL SPECIFICATIONS Operating Temperature Operating Humidity Storage Temperature Vibration Operating Shock ESD EMC 0° to 70°C 5% to 95% relative humidity -40° to +85°C 2g, 10-500Hz, 1 octave/min, 10 sweep cycles (IEC 60068-2-6) 15g/11ms, ½ sine, 3 shocks in +ve and –ve direction, all 3 axes, IEC 60068-2-27) 15kV air-discharge and 8kV contact discharge (IEC 61000-4-2) Radiated immunity - limits according to level 3 of IEC 61000-4-3 Radiated emissions to EN55022 class B OPERATING SYSTEM COMPATIBILITY USB Windows, Linux, Mac OS, and...

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS The touchpad incorporates an in-built gesture recognition engine designed to enhance user experience and increase the overall efficiency of user interaction with a host system. Use of gesture control enables the user to access frequented functions such as button clicks, scrolling and zooming by means of highly intuitive multi-finger operations. See table below for details on the available gesture actions. 1. Horizontal scroll and zoom functions are dependent on application support. CURSOR SPEED / RESOLUTION SETTINGS The touchpad allows...

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS TOUCHPAD FEEDBACK The touchpad features haptic and audible feedback to provide a perceptible response to user interaction events. The table here below details the default event mapping for user feedback; Event Finger Taps (e.g. Left Mouse Click) Gesture Operations (e.g. Two finger Vertical Drag) Feature Buttons Active Area Edge Detection Haptic Feedback Audio Feedback No Yes Yes Yes Yes Yes Yes No PANEL LOCK FEATURE The panel lock feature allows the touchpad to be locked / disabled for cleaning purposes. This can be achieved by tapping...

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS TPM-85A526 CONNECTION DETAILS Output Connector: CN1 Description : 12-way, 1.25mm pitch, right-angled connector Manufacturer : Molex (or equivalent) - Pico Blade Series Part number : 53261-1271 (or equivalent) Mating Connector : 51021-1200 Crimp Housing (or equivalent) 1. Pin to be left unconnected (floating). 2. Earth connection required for ESD management. Description : 6-way, 1.25mm pitch, right-angled connector Manufacturer : Molex (or equivalent) - Pico Blade Series Part Number : 53261-0671 (or equivalent) Mating Connector : 51021-0600...

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS Dimensional drawing specifies factory default orientation. All dimensions are in mm unless otherwise stated. Tolerances +/- 0.2mm unless otherwise stated. Please note that a STEP model is available on request. Please contact your local sales office for more information The TPM series touchpad module can be mounted into panels and consoles using various methods. For details of typical mounting methods applicable to this module, please contact us. Cursor Controls Ltd, Brunel Drive, EUROPEAN SALES & SERVICE CENTER Website : www.nsi-be.com...
