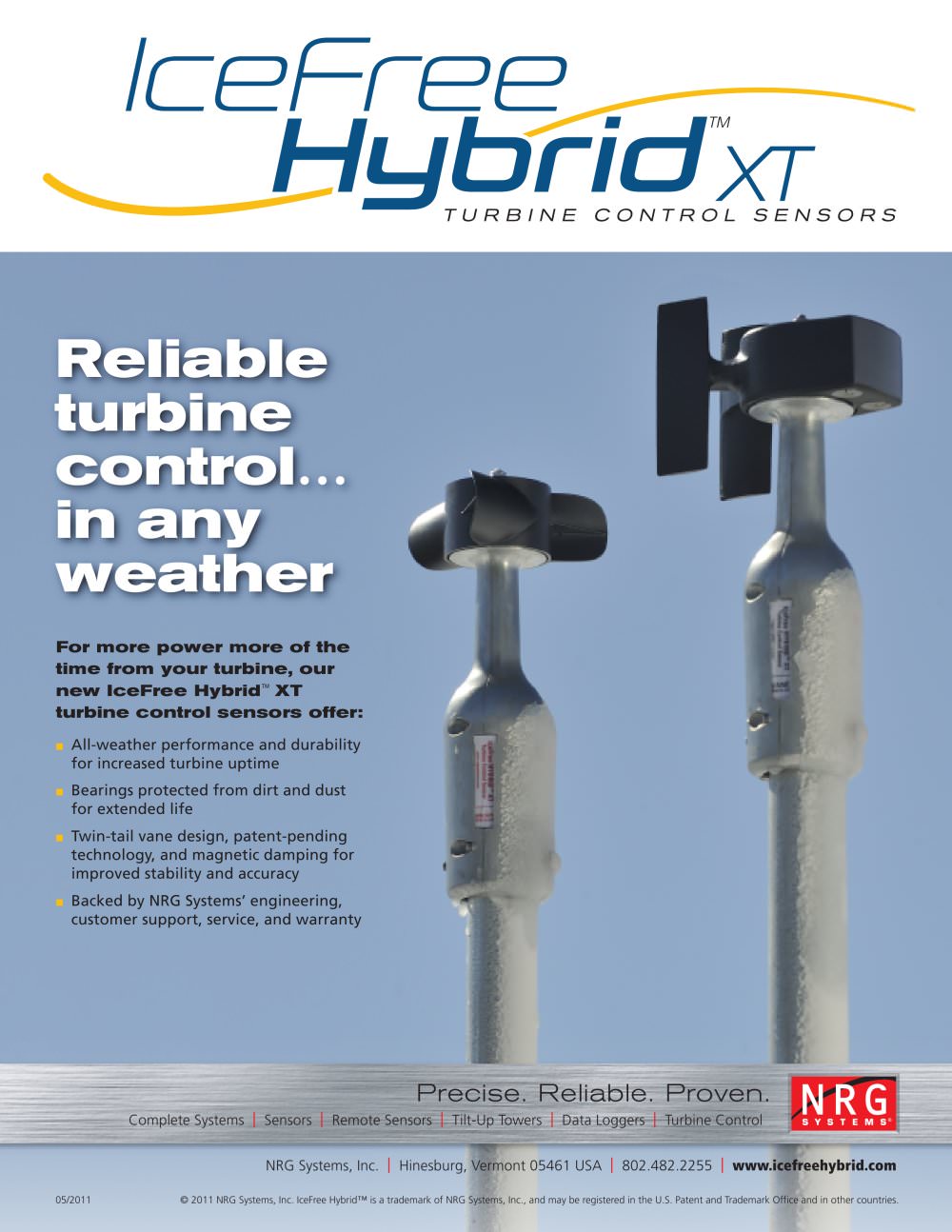

Overview: The document introduces the IceFree Hybrid™ XT turbine control sensors by NRG Systems, designed for reliable turbine control in all weather conditions. These sensors enhance turbine uptime and longevity by protecting bearings from dirt and dust and utilizing a twin-tail vane design with magnetic damping for stability and accuracy.

Specifications: The IceFree Hybrid XT includes two main components: the Heated Anemometer and the Heated Vane. Both are compatible with digital inputs of turbine controllers or PLCs and operate in a wide range of environmental conditions. The anemometer measures wind speeds up to 70 m/s, while the vane offers 360° free rotation with high accuracy.

Technical Details: The sensors output a high-level square wave frequency signal, with transfer functions provided for both m/s and degrees. They require a supply voltage of 8 to 24 V DC and have a self-regulating heater with a supply voltage of 24 V (AC or DC). The sensors are equipped with quick-release connectors and are constructed from durable materials like anodized aluminum and stainless steel.

Environmental and Compliance: The sensors operate in temperatures ranging from -40°C to 60°C and are compliant with standards such as UL61010-1 and CE. They are designed to withstand harsh environmental conditions, including dust, water jets, and salt fog corrosion, and meet various IEC and MIL-STD standards for vibration and humidity.

Ordering Information: For purchasing, contact NRG Sales at 802-482-2255 or visit nrgsystems.com.
