Single stage spray washing system mod. CRD 85


Catalog excerpts

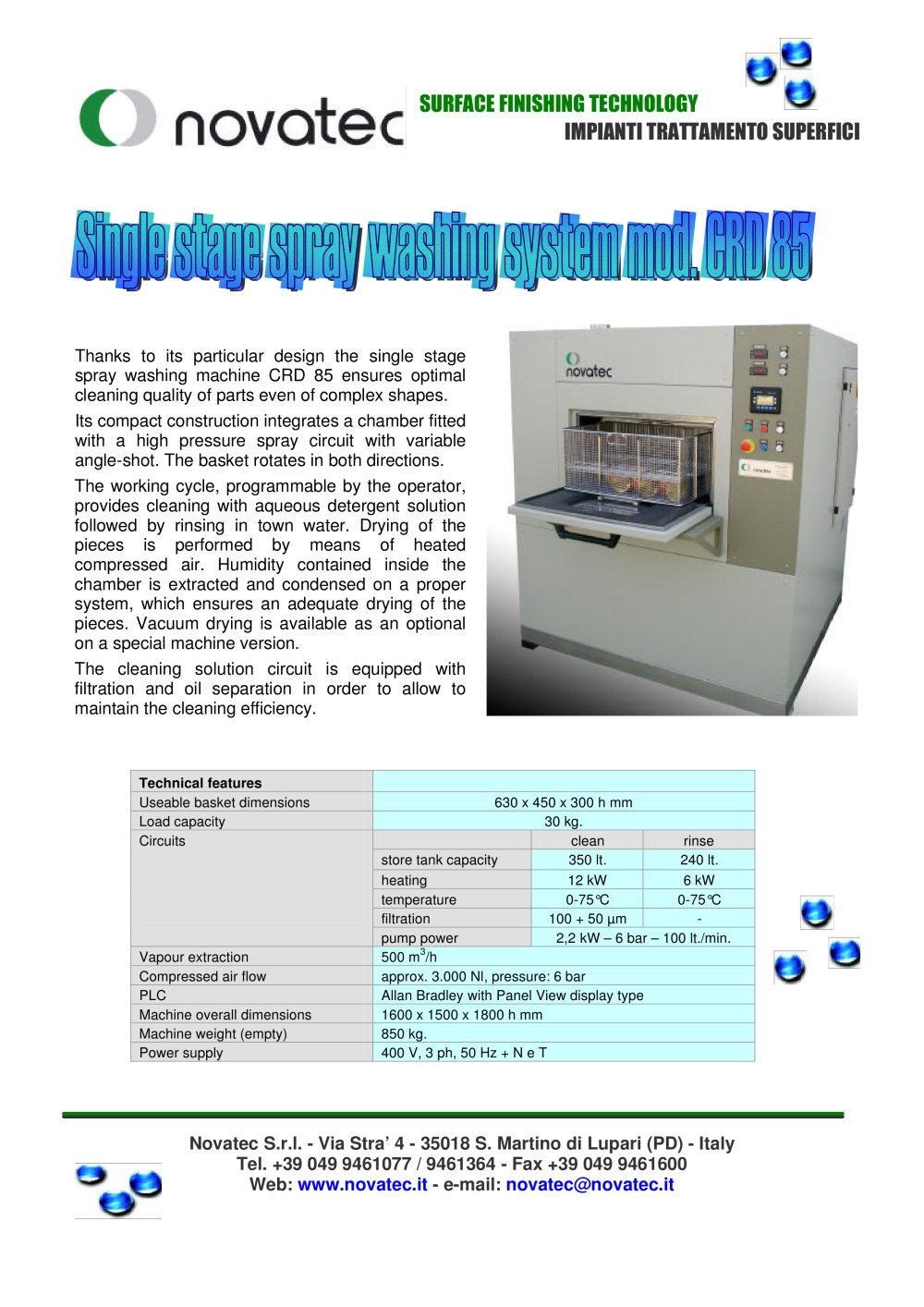

Single stage spray washing system mod. CRD 85 - 1

SURFACE FINISHING TECHNOLOGY IMPIANTI TRATTAMENTO SUPERFICI Thanks to its particular design the single stage spray washing machine CRD 85 ensures optimal cleaning quality of parts even of complex shapes. Its compact construction integrates a chamber fitted with a high pressure spray circuit with variable angle-shot. The basket rotates in both directions. The working cycle, programmable by the operator, provides cleaning with aqueous detergent solution followed by rinsing in town water. Drying of the pieces is performed by means of heated compressed air. Humidity contained inside the chamber is extracted and condensed on a proper system, which ensures an adequate drying of the pieces. Vacuum drying is available as an optional on a special machine version. The cleaning solution circuit is equipped with filtration and oil separation in order to allow to maintain the cleaning efficiency. Technical features Useable basket dimensions 630 x 450 x 300 h mm Load capacity 30 kg. clean rinse store tank capacity 350 lt. 240 lt. heating 12 kW 6 kW temperature 0-75°C 0-75°C filtration 100 + 50 ìm - Circuits pump power 2,2 kW – 6 bar – 100 lt./min. Vapour extraction 500 m3/h Compressed air flow approx. 3.000 Nl, pressure: 6 bar PLC Allan Bradley with Panel View display type Machine overall dimensions 1600 x 1500 x 1800 h mm Machine weight (empty) 850 kg. Power supply 400 V, 3 ph, 50 Hz + N e T Novatec S.r.l. - Via Stra’ 4 - 35018 S. Martino di Lupari (PD) - Italy Tel. +39 049 9461077 / 9461364 - Fax +39 049 9461600 Web: - e-mail:
