Compact Ultrasonic Cleaning Tanks Series "MU"

Product catalog summary

Overview: The document provides technical specifications and applications for Novatec's ultrasonic cleaning tanks, models MU-2.5L to MU-45L. These tanks are designed for efficient cleaning of various materials and are suitable for multiple industries including electronics, optics, and laboratories.

Key Features:

Compact, easy, and safe to use design.
Constructed with AISI 304 stainless steel tanks.
Equipped with adjustable electronic timers and digital displays for ultrasonic frequency, power, and temperature control.

Applications:

Cleaning of metal, plastic, glass, and ceramic parts.
Cleaning of electronic cards.
Removal of oil, grease, polishing paste, and lapping residuals.
Use in optics, dentistry, jewelry, and silverware cleaning.
Applicable in chemical, medical, and research laboratories.
Decontamination of radioactive substances.

Technical Specifications:

MU-2.5L: 2.5-liter capacity, 70/140 W ultrasonic power, 300 W heating, 1-30 min timer.
MU-4L: 4-liter capacity, 140/280 W ultrasonic power, 300 W heating, 1-30 min timer.
MU-6L: 6-liter capacity, 200/400 W ultrasonic power, 300 W heating, 1-99 min timer, temperature control 1-75°C.
MU-9L: 9-liter capacity, 250/500 W ultrasonic power, 500 W heating, 1-99 min timer, temperature control 1-75°C.
MU-12L: 12-liter capacity, 250/500 W ultrasonic power, 500 W heating, 1-99 min timer, temperature control 1-75°C.
MU-28L: 28-liter capacity, 400/800 W ultrasonic power, 1000 W heating, 1-99 min timer, temperature control 1-75°C.
MU-45L: 45-liter capacity, 500/1000 W ultrasonic power, 1400 W heating, 1-99 min timer, temperature control 1-75°C.

Additional Information: All models operate on a 220V electrical supply with a frequency range of 35-40 kHz, and optional frequencies of 22/26 kHz are available for certain models.

Catalog excerpts

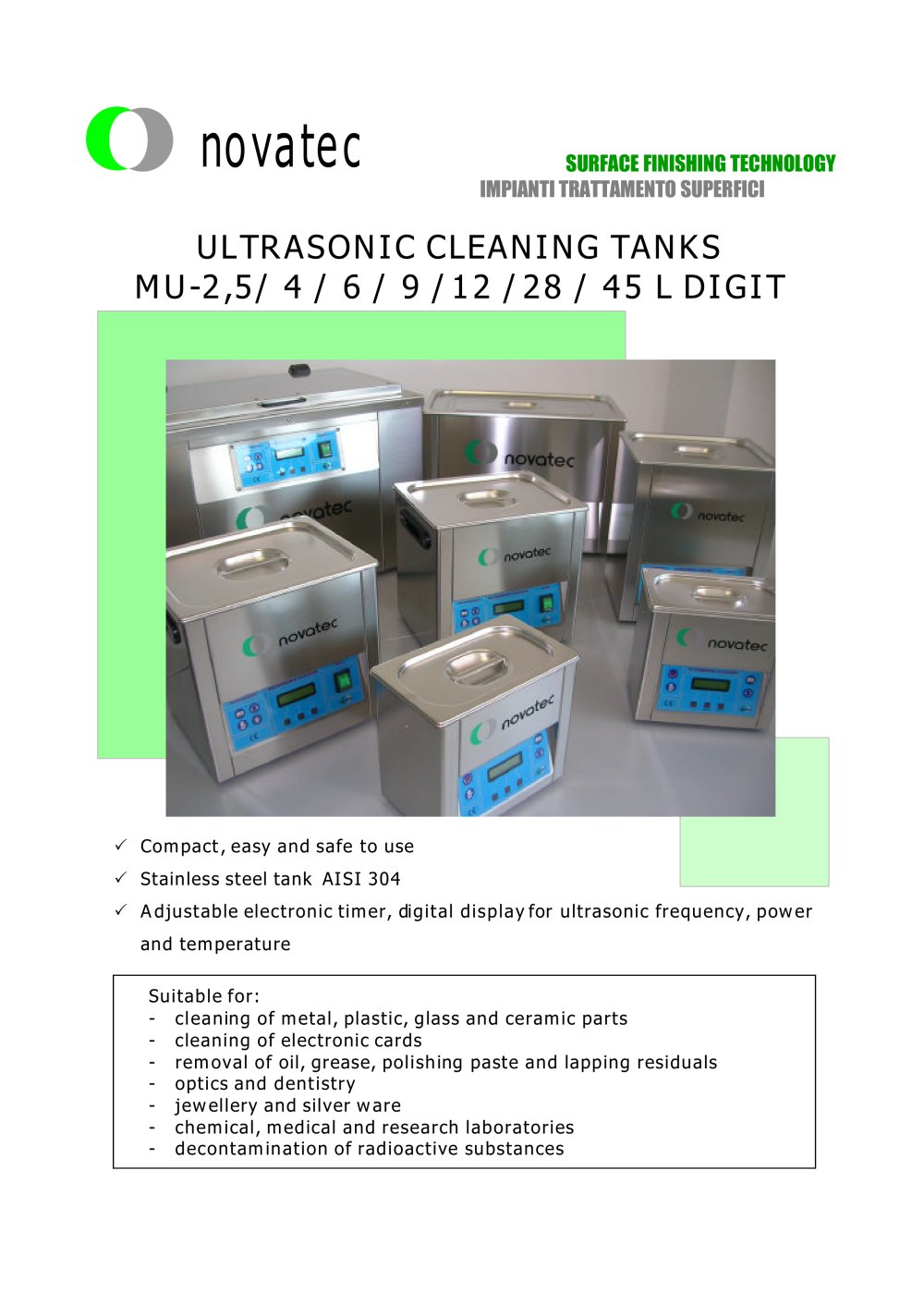

Compact Ultrasonic Cleaning Tanks Series "MU"-1

SURFACE FINISHING TECHNOLOGY IMPIANTI TRATTAMENTO SUPERFICI novatec ULTRASONIC CLEANING TANKS MU-2,5/ 4 / 6 / 9 /12 /28 / 45 L DIGIT P Compact, easy and safe to use P Stainless steel tank AISI 304 P Adjustable electronic timer, digital display for ultrasonic frequency, power and temperature Suitable for: - cleaning of metal, plastic, glass and ceramic parts - cleaning of electronic cards - removal of oil, grease, polishing paste and lapping residuals - optics and dentistry - jewellery and silver ware - chemical, medical and research laboratories - decontamination of radioactive substances

Open the catalog to page 1

Compact Ultrasonic Cleaning Tanks Series "MU"-2

NOVATEC S.R.L. SURFACE FINISHING TECHNOLOGY Via Stra’, 4 – I – 35018 S. Martino di Lupari (PD) – Tel. + 39 049 9461077-9461364-9460664 – Fax + 39 049 9461600 E-mail: [email protected]– http://www.novatec.it Reg. Impr. – C.F. e P.IVA: 00330700287 – Cap. Soc. 26.000 i.v. – Cod. ID CEE IT 00330700287 – Meccanografico n. PD 036770 MODELS – Technical Data MU – 2,5L MU – 4L - Tank capacity: - Usable tank size: - Overall size: - Ultrasonic power: 2,5 lt 230 x 100 x 130 (h) mm 260 x 240 x 160 (h) mm 70/140 W – 38 kHz 4 lt. 230 x 150 x 130 (h) mm 260 x 290 x 160 (h) mm 140/280 W – 38 kHz - Heating: 300...

Open the catalog to page 2
