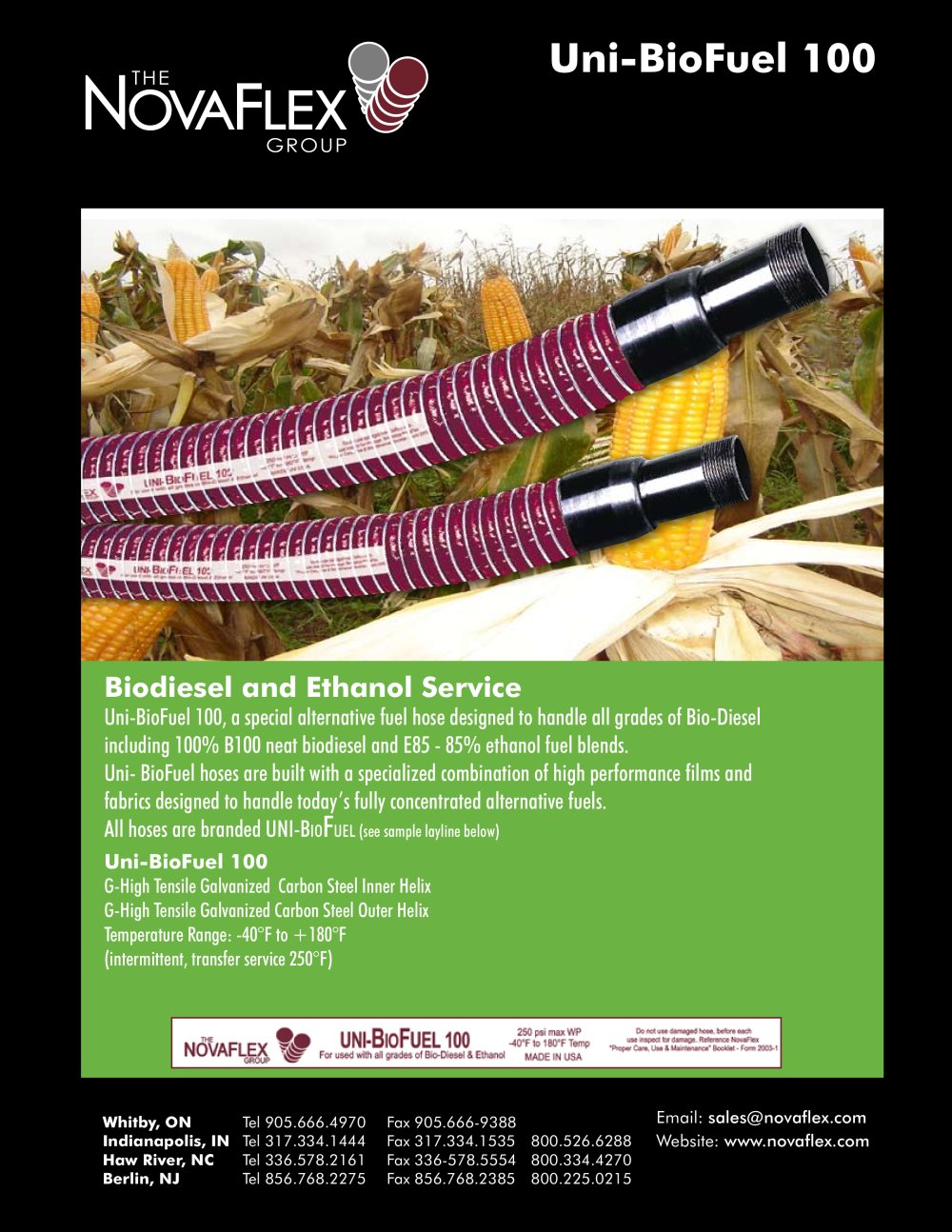

Overview: The document provides technical specifications for the Uni-BioFuel 100 hose, designed for biodiesel and ethanol service. It is suitable for handling all grades of biodiesel, including 100% B100 neat biodiesel and E85 - 85% ethanol fuel blends.

Specifications: The Uni-BioFuel 100 hose features a high tensile galvanized carbon steel inner and outer helix. It operates within a temperature range of -40°F to +180°F, with intermittent transfer service up to 250°F.

Technical Details: The hose is available in various sizes, with inside diameters ranging from 1 inch to 8 inches. Each size has a maximum working pressure of 250 psi and a burst pressure of 1000 psi. The bend radius varies from 4.1 inches to 30 inches, and the weight ranges from 0.6 lb/ft to 11.0 lb/ft. The maximum length for all sizes is 60 feet.

Contact Information: The document lists contact details for Novaflex locations in Whitby, ON; Indianapolis, IN; Haw River, NC; and Berlin, NJ. It also provides an email address ([email protected]) and a website (www.novaflex.com) for further inquiries.
