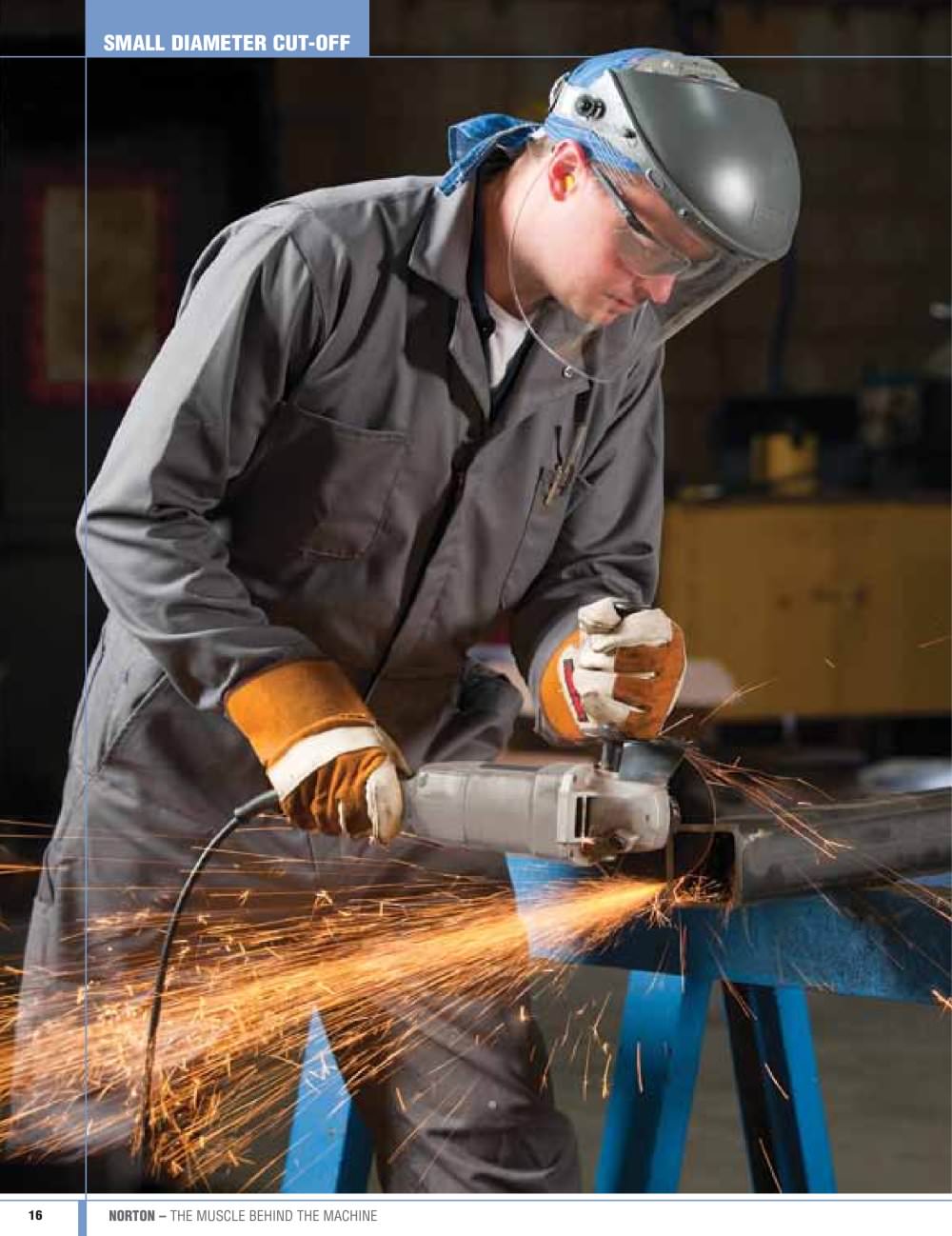

xxx 16 NORTON – THE MUSCLE BE HIND THE MACHINE Small diameter cut-off

Small Diameter Reinforced cut-off Wheels 18 NORTON – THE MUSCLE BE HIND THE MACHINE Type-to-application recommendation guide How to Pick the Right Bond Type Material-To-Product recommendation guide Category Definition The Norton small diameter cut-off wheel line consists of Type 01 straight and Type 27 depressed center cut-off wheels from 1-1/2" to 9" diameters. These wheels come in ultra thin .035 for quick burn/burr free cutting to .125" for more durable applications. All are reinforced for the demanding nature of portable cut-off. Applications: C utting sheet metal, cutting pipe, and...

www.nortonabrasives.com 19 Small Diameter Reinforced cut-off Wheels Type 01 and 27 .040 - .125 Cut-off Wheels FOR Right Angle Grinders TOT AL PERFORM ANCE I NITI AL PRICE SPECI ALTY Type 01 .035 - .125 cut-off Wheels FOR die grinders TOT AL PERFORM ANCE I NITI AL PRICE SPECI ALTY Cross reference guides Best B etter g ood g ood N orZon Plus N orZon Plus C harger C harger G emini G emini M etal G emini G emini M asonry Fast Cut Fast Cut Fast Cut ALU INOX Brilliant — — — — B rill-Blade B rill-Blade Hornet — — — E xtra FC Heavy Duty S tinger Bullard — — — Z A60T S GA60U T A46T, TA60T, A46T,...

www.nortonabrasives.com 21 Small Diameter Reinforced cut-off Wheels MACHINES USED Availability Size (D x t x H) Max. RPM Std. Pkg. Part No. Part No. Part No. Part No. Type 01 – RightCut Cut-off 4 x .040 x 5/8 15,280 25 07660701616 4 x .045 x 5/8 15,280 25 66243527956 4 x .090 x 5/8 15,280 25 66243527955 4-1/2 x .040 x 7/8 13,580 25 66252837011 07660701617 4-1/2 x .045 x 7/8 13,580 25 66252830730 66252826569 66252823602 25 66252832906 4-1/2 x .090 x 7/8 13,580 25 66252823599 5 x .040 x 7/8 12,225 25 66252837012 15 07660701618 5 x .045 x 7/8 12,225 25 66252830731 66252826570 66252823603 25...

Small Diameter Reinforced cut-off Wheels 22 MACHINES USED NORTON – THE MUSCLE BE HIND THE MACHINE Size (D x t x H) MAX. RPM Std. Pkg. Part No. Part No. Part No. Part No. Type 01 – Circular Saw 6 x .035 x 5/8 10,185 25 66252809714 6 x .060 x 5/8 10,185 25 66252809718 6-1/2 x 1/8 x DM-5/8 9,405 10 07660789098 07660789089 7 x .060 x 5/8 8,730 25 66252905957 7 x 1/8 x DM-5/8 8,730 25 07660789097 07660789088 8 x .060 x 5/8 7,640 25 66253017771 LL 66253007025 10 66253017795 8 x 1/8 x DM-5/8 7,640 10 07660789096 07660789086 DM Denotes Diamond Mount; 5/8" hole bushing s included Steel / Metal Steel...

www.nortonabrasives.com 23 High Speed Cut-Off

High Sp eed Reinforced Cut-off 24 MACHINES USED NORTON – THE MUSCLE BE HIND THE MACHINE Norton high speed cut-off abrasive wheels provide the industry’s leading performance in all high speed gas and electric-powered applications. Applications: M etalworking: steel, stainless, ductile, cast iron, rail steel and metal decking Non-Metal Building Materials: concrete, brick, masonry, asphalt, aggregate, stone and schedule 40 and 80 PVC pipe R escue and Demolition: steel, acrylic, fiberglass, rubber, glass, wood, concrete, brick and asphalt Size Rang e: 12" – 16" diameter THIC KNESS RANGE: 1/8"...

www.nortonabrasives.com 25 High Sp eed Reinforced Cut-off MACHINES USED SPECI ALTY Good M etal M etal Decking R ail Steel D uctile C oncrete A sphalt Abmast A 24 R, A 24 T R ail-Kut A 24 Z AC 24 R, C 24 R, C 16 T, Kompetitor Metal Kompetitor Ductile Iron Kompetitor Concrete Kompetitor Asphalt Brilliant M etal/Stainless — A24PB — C oncrete/Masonry — Bullard Blaze A24R, ZA24Q, T A24R A30R AC24R C 24R, The Competitor CC 20R & Road Warrior T he Competitor Camel A24-R A24-T — AC24-R C 24-R C 16-U Flexovit A24/30SB A24TB A30PB AC24SB C 30UB C 16UB Husqvarna B lue XHS, Blue QMS -CM , Grey QMS -CM...

Walk-Behind Reinforced Cut-off 26 MACHINES USED NORTON – THE MUSCLE BE HIND THE MACHINE These powerful, self-propelled machines are designed to cut concrete slabs and asphalt and are normally fitted with diamond blades. For inexperienced operators or small jobs, the machines can accommodate low initial cost, conventional abrasives wheels. Applications: C utting straight sections of concrete surfaces Size Rang e: 14" and 18" diameter THIC KNESS RANGE: 3/16" – 3/8" Abrasive Grain: S ilicon Carbide SHAPE : T ype 01 Straight Bond: Hot Pressed (HP) – for higher horsepower machine applications...

www.nortonabrasives.com 27 Chop Saw Cut-off r

Chop Saw Reinforced Cut-off 28 MACHINES USED NORTON – THE MUSCLE BE HIND THE MACHINE A chop saw is a light, low horsepower portable machine. Although very similar to a compound miter saw, it is designed for cutting denser materials, like metal bar, tubing or pipe. Chop saw cut-off wheels are designed specifically for this machine with finer grit, softer grades, and reinforcement layers that match the application. Applications: C utting small diameter metal pieces, bar stock, metal pipe, tubing, decking, cable, drywall studs, and metal plate dimensioning Size Rang e: 10" - 16" diameter THIC...

www.nortonabrasives.com 29 Chop Saw Reinforced Cut-off MACHINES USED Charger Chop Saw Reinforced Cut-off Wheels Better choice for steel, stainless steel an d all other ferrous metals Features B enefits • Zirconia alumina/aluminum oxide • 2X the life and cut rate of aluminum oxide abrasive blend • Fast Cut: side reinforced • Engineered for larger cross-sections and/or hard-to-cut materials • Long Life: side reinforced • Ideal for small cross-section workpieces • Rapid Cut: centrally reinforced, rough sides • Free cutting, non-binding; burr- and burn-free cuts Gemini Chop Saw Reinforced...

Stationary Saw Reinforced Cut-off 30 MACHINES USED NORTON – THE MUSCLE BE HIND THE MACHINE The Norton stationary saw reinforced cut-off wheel line consists of Type 01 straight 10" - 24" wheels, designed to fit on fixed-base stationary saws that are free-standing or mounted on a workbench. Applications: P rimary applications are cutting of all metal parts (flat stock, bars, studs, pipes, tubes, angle iron, cable), wire rope and hydraulic hose used in fabrication, construction and plant maintenance. Size Rang e: 10" – 24" diameter THIC KNESS RANGE: 3/32", 1/8", 5/32", 3/16" Abrasive Grain: Z...
