Norton Abrasives
Catalog - Wire Brushes

Catalog - Wire Brushes

Product catalog summary

Overview: The document provides detailed information on Norton's range of wire brushes, including specifications, applications, and safety guidelines. The brushes are designed for various cleaning and finishing tasks on steel and stainless surfaces.

Specifications: The wire brushes come in different shapes such as cup, saucer cup, wheel, end brush, and hand brush. They feature various wire designs including standard and full cable twist knot, crimped, and stringer bead. Each brush is color-coded for easy identification and packaged individually unless noted otherwise.

Applications: Wire brushes are used for cleaning rust, scale, and dirt, light deburring, edge blending, roughening for adhesion, and finish preparation prior to plating or painting.

Safety Standards: Users must comply with ANSI B165 standards for power-driven brushing tools and refer to safety documents available on the Norton Abrasives website.

Product Categories:

High Performance Cable Crimped Cup Brushes: Suitable for light to medium-duty applications on flat or irregular surfaces. Features include bundled brass-coated steel wires for longer life and better flexibility.
Wire Saucer Cup Brushes: Ideal for cleaning corners and hard-to-reach areas, available in twist knot and crimped styles.
Crimped Wire Cup Brushes: Designed for light to medium-duty brushing with highly flexible heavy wire fill for fast cutting.
Twist Knot Wire Cup Brushes: Provide high impact cutting and cleaning for demanding applications, available with or without a protective guard.
Crimped Wire Wheel Brushes: Excellent for deburring and removing rust, corrosion, and dirt, with options for single or stacked use.
Stringer Bead Knot Wire Wheel Brushes: Deliver high-impact cutting for tough applications, especially suited for groove and weld bead cleaning.
End Brushes: Used for cleaning and deburring recessed areas or inside diameters of tubes or pipes, available in twist knot and crimped styles.
Hand Brushes: Feature ergonomic plastic handles and crimped wire for durability, designed for hard-to-reach places and tight areas.

Key Features and Benefits: The document highlights the benefits of each brush type, such as longer life, flexibility, safety, and application-specific designs. Protective guards and ergonomic handles enhance user safety and comfort.

Availability: The document lists part numbers, dimensions, maximum RPM, and packaging details for each product, ensuring users can select the appropriate brush for their specific needs.

Catalog excerpts

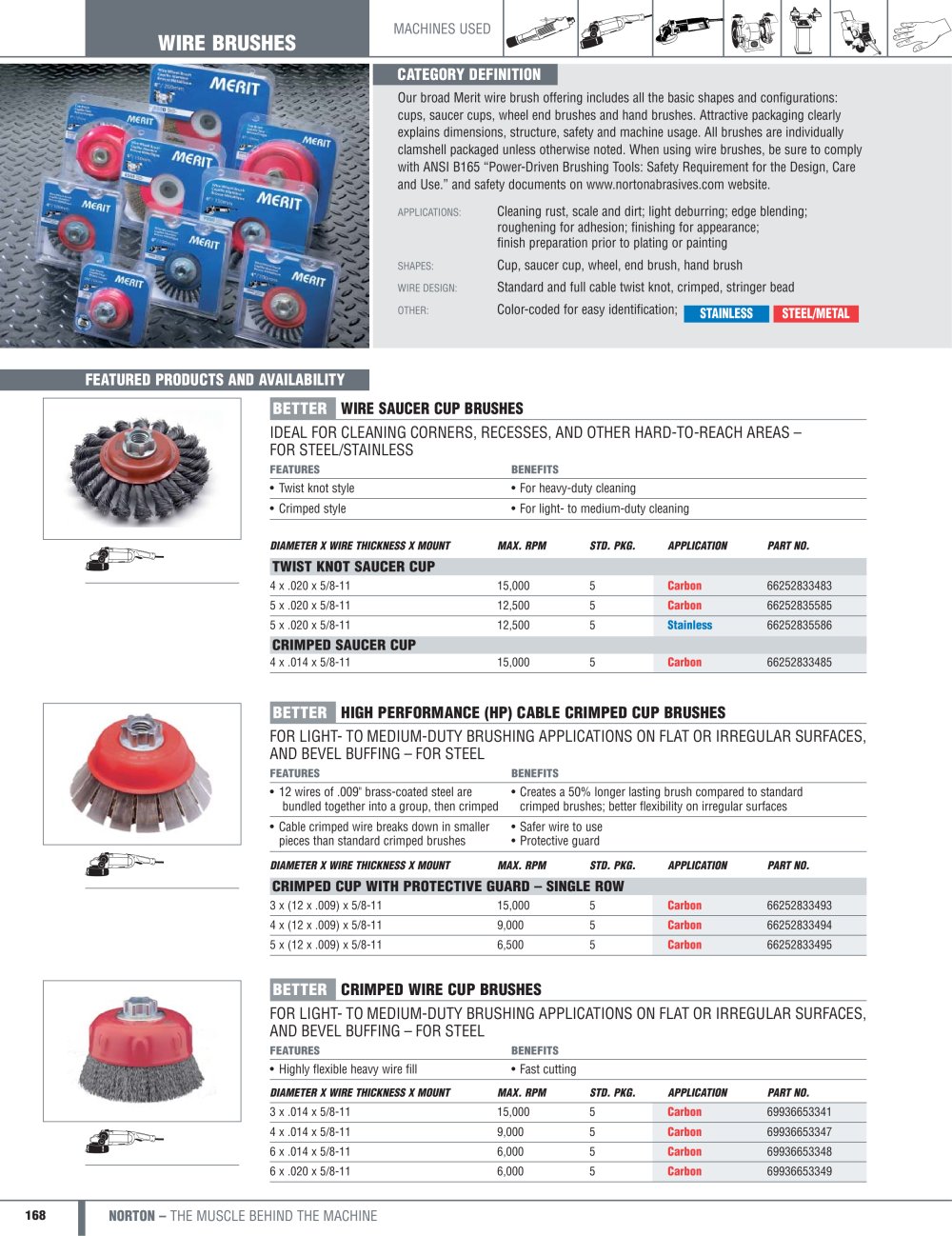

2. Kapitel URB neu table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Impact", sans-serif; } .font2 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:13.00pt "Lucida Sans Unicode", sans-serif; } WIRE BRU SHES MACHINES USED CATEGORY DEFINITION Our broad Merit wire brush offering includes all the basic shapes and configurations: cups, saucer cups, wheel end brushes and hand brushes. Attractive packaging clearly explains dimensions, structure, safety and machine usage. All brushes are individually clamshell packaged unless otherwise noted. When using wire brushes, be sure to comply with ANSI B165 "Power-Driven Brushing Tools: Safety Requirement for the Design, Care and Use." and safety documents on www.nortonabrasives.com website. applications: Cleaning rust, scale and dirt; light deburring; edge blending; roughening for adhesion; finishing for appearance; finish preparation prior to plating or painting shapes: Cup, saucer cup, wheel, end brush, hand brush wire design: Standard and full cable twist knot, crimped, stringer bead other: Color-coded for easy identification; STAINLESS I STEEL/METAL FEATURED PRODUCTS AND AVAILABILITY WIRE SAUCER CUP BRUSHES BETTER IDEAL FOR CLEANING CORNERS, RECESSES, AND OTHER HARD-TO-REACH AREAS ■ FOR STEEL/STAINLESS FEATURES BENEFITS Twist knot style Օ For heavy-duty cleaning Crimped style Օ For light- to medium-duty cleaning PART NO. DIAMETER X WIRE THICKNESS X MOUNT MAX. RPM TWIST KNOT SAUCER CUP 4 x .020 x 5/8-11 15,000 STD. PKG. APPLICATION 5 Carbon 66252833483 5 x .020 x 5/8-11 12,500 5 Carbon 66252835585 5 x .020 x 5/8-11 CRIMPED SAUCER CUP 4 x .014 x 5/8-11 12,500 15,000 5 Stainless 66252835586 66252833485 5 Carbon HIGH PERFORMANCE (HP) CABLE CRIMPED CUP BRUSHES FOR LIGHT- TO MEDIUM-DUTY BRUSHING APPLICATIONS ON FLAT OR IRREGULAR SURFACES, AND BEVEL BUFFING - FOR STEEL FEATURES_BENEFITS_ 12 wires of .009" brass-coated steel are Օ Creates a 50% longer lasting brush compared to standard bundled together into a group, then crimped crimped brushes; better flexibility on irregular surfaces Cable crimped wire breaks down in smaller Օ Safer wire to use pieces than standard crimped brushes Protective guard DIAMETER X WIRE THICKNESS X MOUNT MAX. RPM STD. PKG. APPLICATION PART NO. CRIMPED CUP WITH PROTECTIVE GUARD - SINGLE ROW 3 x (12 x .009) x 5/8-11 15,000 5 Carbon 66252833493 4 x (12 x .009) x 5/8-11 9,000 5 Carbon 66252833494 5 x (12 x .009) x 5/8-11 6,500 5 Carbon 66252833495 BETTER | CRIMPED WIRE CUP BRUSHES FOR LIGHT- TO MEDIUM-DUTY BRUSHING APPLICATIONS ON FLAT OR IRREGULAR SURFACES, AND BEVEL BUFFING - FOR STEEL FEATURES_BENEFITS_ Օ Highly flexible heavy wire fill Fast cutting DIAMETER X WIRE THICKNESS X MOUNT MAX. RPM STD. PKG. APPLICATION PART NO. 3 x .014 x 5/8-11 15,000 5 Carbon 69936653341 4 x .014 x 5/8-11 9,000 5 Carbon 69936653347 6 x .014 x 5/8-11 6,000 5 Carbon 69936653348 6 x .020 x 5/8-11 6,000 5 Carbon 69936653349 168 I NORTON - THE MUSCLE BEHIND THE MACHINE

Open the catalog to page 1

2. Kapitel URB neu table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Impact", sans-serif; } .font1 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:13.00pt "Lucida Sans Unicode", sans-serif; } MACHINES USED WIRE BRU SHES FEATURED PRODUCTS AND AVAILABILITY TWIST KNOT WIRE CUP BRUSHES BETTER HIGH IMPACT CUTTING AND CLEANING ON MORE DEMANDING APPLICATIONS -FOR STEEL/STAINLESS FEATURES BENEFITS Rigid structure Օ High impact cutting...

Open the catalog to page 2

2. Kapitel URB neu table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:13.00pt "Lucida Sans Unicode", sans-serif; } MACHINES USED WIRE BRUSHES FEATURED PRODUCTS AND AVAILABILITY STANDARD TWIST KNOT WIRE WHEEL BRUSHES BETTER IDEAL FOR WELDING AND METAL FABRICATION APPLICATIONS (REMOVING WELD SCALE SPATTER, EXTRA-HEAVY RUST AND CORROSION, OR SURFACE ROUGHENING)...

Open the catalog to page 3

2. Kapitel URB neu table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Impact", sans-serif; } .font1 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:13.00pt "Lucida Sans Unicode", sans-serif; } MACHINES USED WIRE BRU SHES FEATURED PRODUCTS AND AVAILABILITY BETTER | END BRUSHES CLEAN AND DEBURR A RECESSED AREA OR THE INSIDE DIAMETER OF A TUBE OR PIPE - FOR STEEL/STAINLESS FEATURES BENEFITS Twist knot wire end brushes Օ For more...

Open the catalog to page 4
