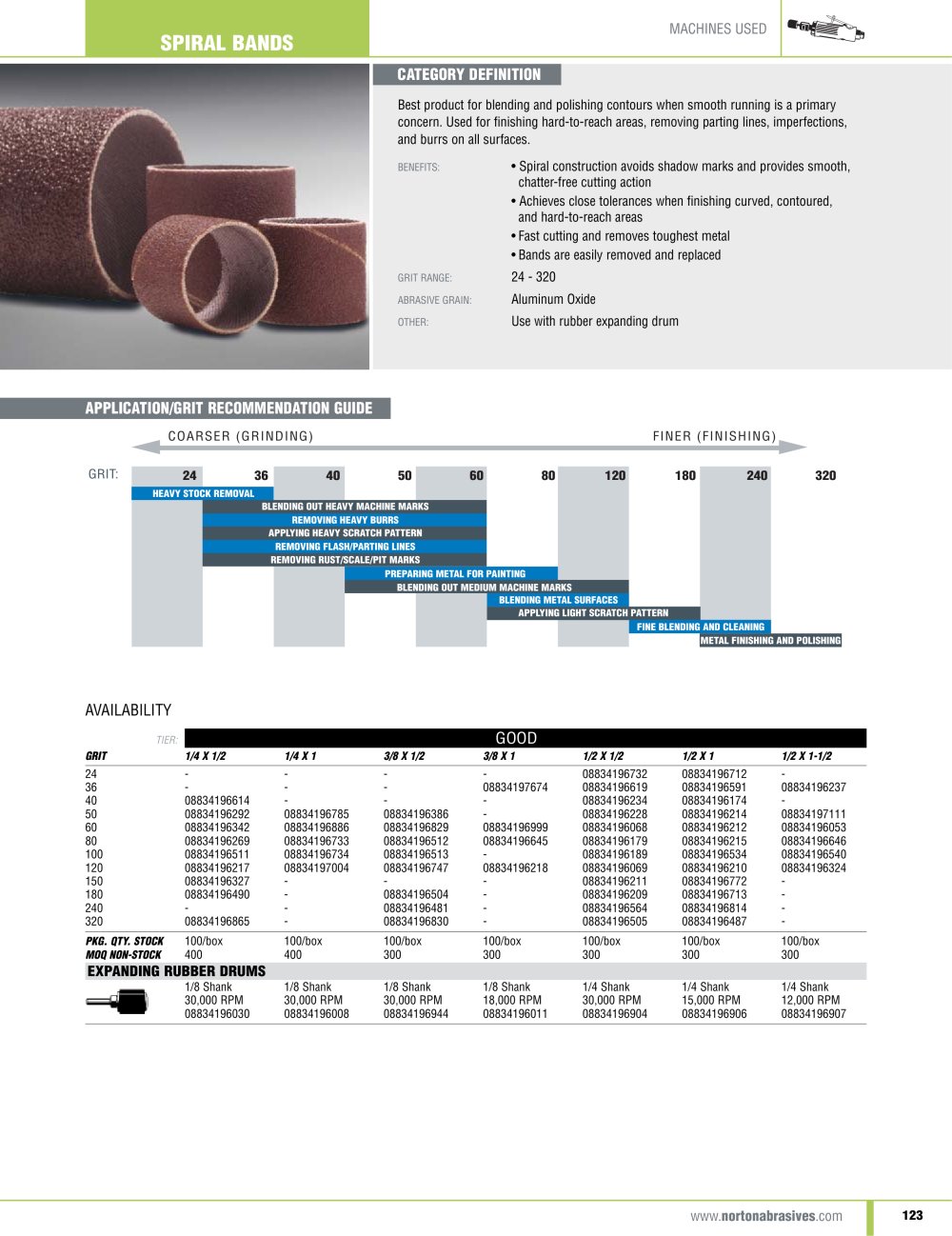

Abrasive specialities 2010 - 1

www.nortonabrasives.com 123 SPIRAL BANDS MACHINES USED Best product for blending and polishing contours when smooth running is a primary concern. Used for finishing hard-to-reach areas, removing parting lines, imperfections, and burrs on all surfaces. BENEFITS: • Spiral construction avoids shadow marks and provides smooth, chatter-free cutting action • Achieves close tolerances when finishing curved, contoured, and hard-to-reach areas • Fast cutting and removes toughest metal • Bands are easily removed and replaced GRIT RANGE: 24 - 320 ABRASIVE GRAIN: Aluminum Oxide OTHER: Use with rubber expanding drum CATEGORY DEFINITION AVAILABILITY GRIT 1/4 X 1/2 1/4 X 1 3/8 X 1/2 3/8 X 1 1/2 X 1/2 1/2 X 1 1/2 X 1-1/2 24 - - - - 08834196732 08834196712 - 36 - - - 08834197674 08834196619 08834196591 08834196237 40 08834196614 - - - 08834196234 08834196174 - 50 08834196292 08834196785 08834196386 - 08834196228 08834196214 08834197111 60 08834196342 08834196886 08834196829 08834196999 08834196068 08834196212 08834196053 80 08834196269 08834196733 08834196512 08834196645 08834196179 08834196215 08834196646 100 08834196511 08834196734 08834196513 - 08834196189 08834196534 08834196540 120 08834196217 08834197004 08834196747 08834196218 08834196069 08834196210 08834196324 150 08834196327 - - - 08834196211 08834196772 - 180 08834196490 - 08834196504 - 08834196209 08834196713 - 240 - - 08834196481 - 08834196564 08834196814 - 320 08834196865 - 08834196830 - 08834196505 08834196487 - PKG. QTY. STOCK 100/box 100/box 100/box 100/box 100/box 100/box 100/box MOQ NON-STOCK 400 400 300 300 300 300 300 EXPANDING RUBBER DRUMS 1/8 Shank 1/8 Shank 1/8 Shank 1/8 Shank 1/4 Shank 1/4 Shank 1/4 Shank 30,000 RPM 30,000 RPM 30,000 RPM 18,000 RPM 30,000 RPM 15,000 RPM 12,000 RPM 08834196030 08834196008 08834196944 08834196011 08834196904 08834196906 08834196907 TIER: GOOD APPLICATION/GRIT RECOMMENDATION GUIDE GRIT: 40 60 80 120 180 240 320 PREPARING METAL FOR PAINTING METAL FINISHING AND POLISHING BLENDING OUT MEDIUM MACHINE MARKS COARSER (GRINDING) FINER (FINISHING) REMOVING FLASH/PARTING LINES 50 REMOVING HEAVY BURRS APPLYING LIGHT SCRATCH PATTERN BLENDING METAL SURFACES 24 36 HEAVY STOCK REMOVAL BLENDING OUT HEAVY MACHINE MARKS APPLYING HEAVY SCRATCH PATTERN REMOVING RUST/SCALE/PIT MARKS FINE BLENDING AND CLEANING

Open the catalog to page 1
Abrasive specialities 2010 - 3

www.nortonabrasives.com 125 CARTRIDGE ROLLS, SPIRAL ROLLS, CONE POINTS MACHINES USED Cartridge, spiral rolls and cone points are strips of abrasive cloth rolled and glued to form a solid shape that is designed to break down during use and reveal the next layer of abrasive. APPLICATIONS: Used on inside surfaces and inside corners where other forms of abrasive cannot reach. Typically these are used on high speed air grinders and are always mounted on a mandrel. Ideal for flash removal, polishing, or removing machine tool marks, and edge breaking. SHAPES: Cartridge Rolls, Spiral Rolls (Full...

Open the catalog to page 3
Abrasive specialities 2010 - 4

126 NORTON – THE MUSCLE BEHIND THE MACHINE CARTRIDGE ROLLS, SPIRAL MACHINES USED ROLLS, CONE POINTS D X L X H GRIT STD. PKG. PART NO. 1/4 x 1-1/2 x 1/8 60 100 66261194384 Use M-9 Mandrel 80 66261194394 120 66261194397 3/8 x 1-1/2 x 1/8 60 66261194392 Use M-9 Mandrel 80 100 66261194395 120 66261194398 1/2 x 1-1/2 x 1/8 60 66261194393 Use M-9 Mandrel 80 100 66261194396 120 66261194399 TIER: BEST ABRASIVE: Ceramic Alumina BACKING: Cotton OTHER: Supersized Merit Blaze Cartridge Rolls • With their exclusive ceramic grain technology, grinding aid, and X-weight cotton backing, Merit Blaze products...

Open the catalog to page 4
Abrasive specialities 2010 - 6

128 NORTON – THE MUSCLE BEHIND THE MACHINE CARTRIDGE ROLLS, SPIRAL MACHINES USED ROLLS, CONE POINTS D X L X H GRIT STD. PKG. PART NO. 3/8 x 1-1/2 x 1/8 60 100 66261194481 Use M-9 Mandrel 80 66261194490 120 66261194491 1/2 x 1-1/2 x 1/8 60 100 66261194484 Use M-9 Mandrel 80 66261194492 120 66261194495 TIER: BEST ABRASIVE: Ceramic Alumina BACKING: Cotton OTHER: Supersized Merit Blaze Spiral Rolls Full Taper • With their exclusive ceramic grain technology, grinding aid and X-weight cotton backing, these products outperform all competitive ceramic, zirconia, and aluminum oxide specialty...

Open the catalog to page 6
Abrasive specialities 2010 - 7

www.nortonabrasives.com 129 CARTRIDGE ROLLS, SPIRAL ROLLS, CONE POINTS MACHINES USED D X L X H GRIT STD. PKG. PART NO. 3/8 x 1 x 1/8 60 100 08834181714 use M-8 Mandrel 80 08834181715 120 08834181717 180 08834181719 3/8 x 1-1/2 x 1/8 50 100 08834181723 use M-9 Mandrel 60 08834181724 80 08834181708 120 08834181727 150 08834181728 180 08834181709 1/2 x 1 x 1/8 60 100 08834181734 use M-8 Mandrel 80 08834181735 120 08834181737 180 08834181739 1/2 x 1-1/2 x 1/8 36 100 08834181230 use M-9 Mandrel 40 08834181742 50 08834181743 60 08834181744 80 08834181745 100 08834181746 120 08834181747 180...

Open the catalog to page 7
Abrasive specialities 2010 - 9

www.nortonabrasives.com 131 SQUARE & CROSS PADS, OVERLAP SLOTTED DISCS MACHINES USED Square pads, cross pads and overlap slotted discs are all used on high speed pneumatic tools for deburring, blending, cleaning, and polishing applications. All of these abrasive specialties are designed for applications in small, tight, hard-to-access locations on parts that are being finished. BENEFITS: • Variety of shapes and sizes to fit application and part geometry • Shapes provide flexibility for the application, while eliminating aggressiveness of the sanding action • Cross Pads allow visibility of...

Open the catalog to page 9
Abrasive specialities 2010 - 10

132 NORTON – THE MUSCLE BEHIND THE MACHINE SQUARE & CROSS PADS, MACHINES USED OVERLAP SLOTTED DISCS L X W X T EYELET GRIT STD. PKG. PART NO. PART NO. 1 x 1 x 6 ply 8-32 80 100 08834184826 1 x 1 x 8 ply 8-32 60 100 08834184828 80 08834184124 120 08834184994 1-1/2 x 1-1/2 x 1/2 1/4-20 60 100 08834184463 80 08834184125 2 x 2 x 1/2 1/4-20 60 100 66261194520 08834184334 80 66261194552 08834184397 120 66261194554 2 x 2 x 3/4 1/4-20 50 100 08834184487 80 08834184394 3 x 3 x 1/4 1/4-20 60 100 66261194531 80 66261194555 08834184882 120 66261194556 3 x 3 x 1/2 1/4-20 50 100 08834182152 60 66261194528...

Open the catalog to page 10
Abrasive specialities 2010 - 11

www.nortonabrasives.com 133 SQUARE & CROSS PADS, OVERLAP SLOTTED DISCS MACHINES USED Overlap Slotted Discs DIA. EYELET GRIT STD. PKG. PART NO. PART NO. PART NO. 1 8-32 60 100 08834184346 80 08834184019 08834184085 100 08834184224 120 08834184151 08834184236 180 08834185078 1-1/4 8-32 60 100 08834184270 80 08834184065 100 08834184291 120 08834184084 1-1/2 8-32 60 100 66261195051 08834184066 80 66261195368 08834184079 100 08834184279 08834184023 120 66261195367 08834186035 180 08834184498 1-3/4 8-32 60 100 08834184655 80 08834184042 2 8-32 60 100 66261195054 80 66261195055 08834184076 100...

Open the catalog to page 11
